CRL-U.S. Aluminum KYNAR® Custom Entrance Door, Series 550, Panic Bar

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept a wide range of optional hardware applications

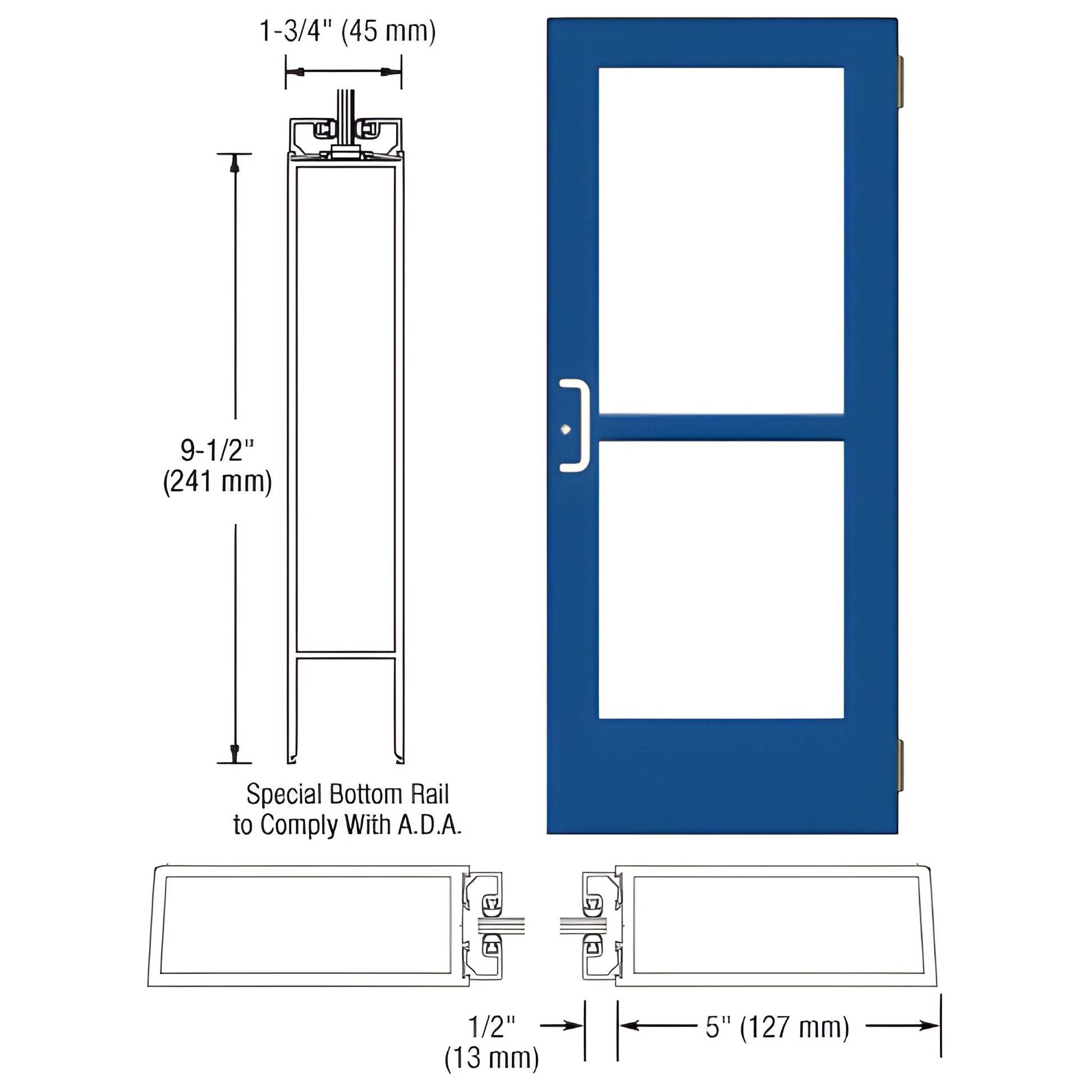

This CRL Custom Wide Stile Entrance Door (SKU CZ51571) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard preparation includes stiles sized for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accept optional hardware such as concealed vertical rod panic hardware—ideal for commercial glass entrance door applications.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU CZ51571 or contact CRL Customer Service to confirm specifications and shipping details.
