CRL-U.S. Aluminum Kynar Custom Wide-Stile Butt Hinge Entrance Door

• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• 7-1/2" bottom rail available to meet A.D.A. and Title 21 applications
• Custom fabricated to accept a wide range of optional hardware applications

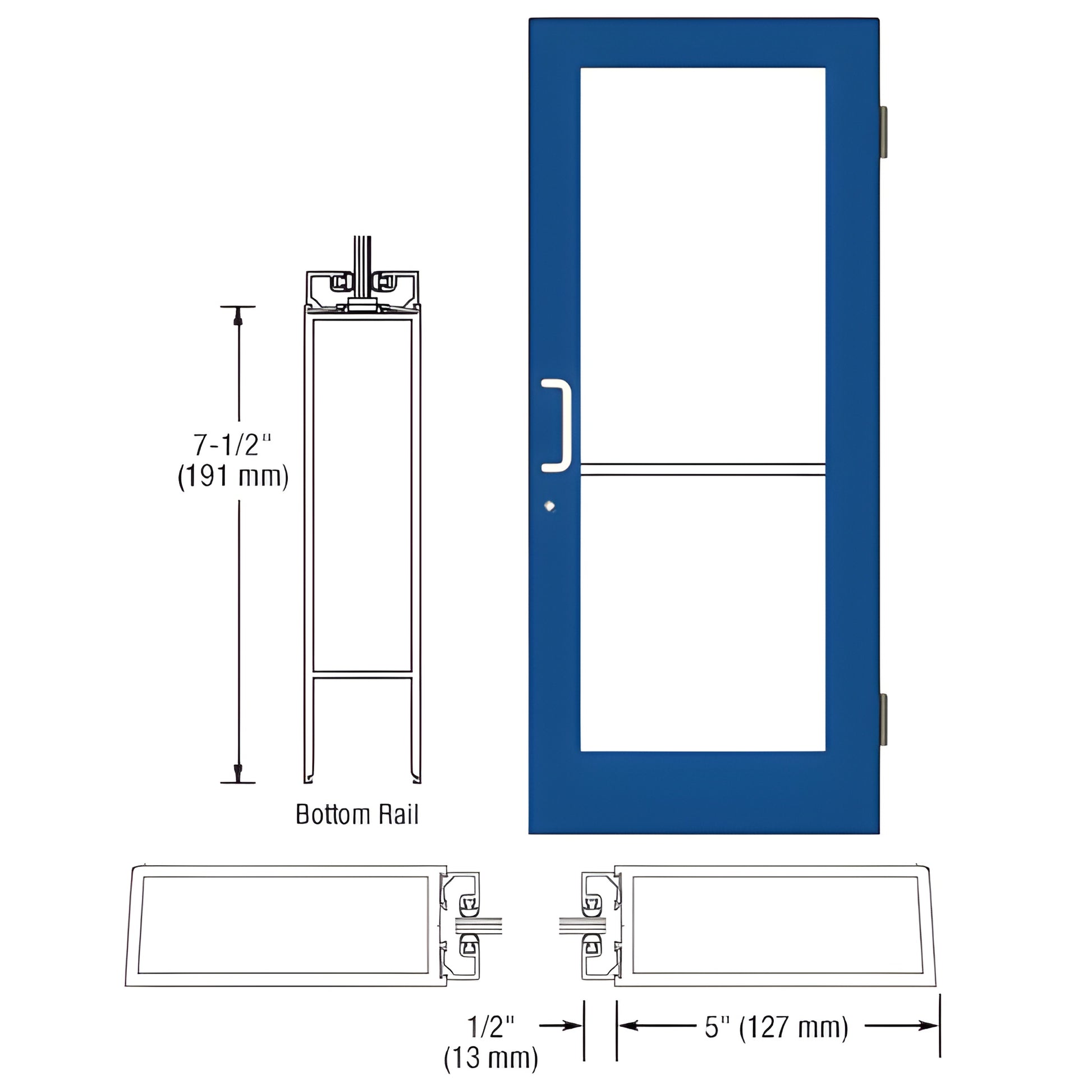

This Custom Wide Stile Entrance Door (SKU: HE51571) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Stiles are prepared for butt hinge hardware and include glass stops sized for 1/4" (6 mm) tempered glass supplied by others. The door is designed for custom fabrication to accommodate additional hardware options, making it ideal for commercial storefronts and high-traffic entrance applications requiring a wide stile tempered glass door.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU HE51571 or contact us for custom hardware options and lead times.
