CRL-U.S. Aluminum KYNAR Offset Pivot Narrow Stile Door Panic Hardware
CRL-U.S. Aluminum KYNAR Offset Pivot Narrow Stile Door Panic Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Lifetime warranty on CORNER-LOC® mechanically fastened and welded corner construction. U.S. Patent No. 9,127,504
- Custom fabricated to accept optional hardware applications; ready for offset pivot hardware
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware

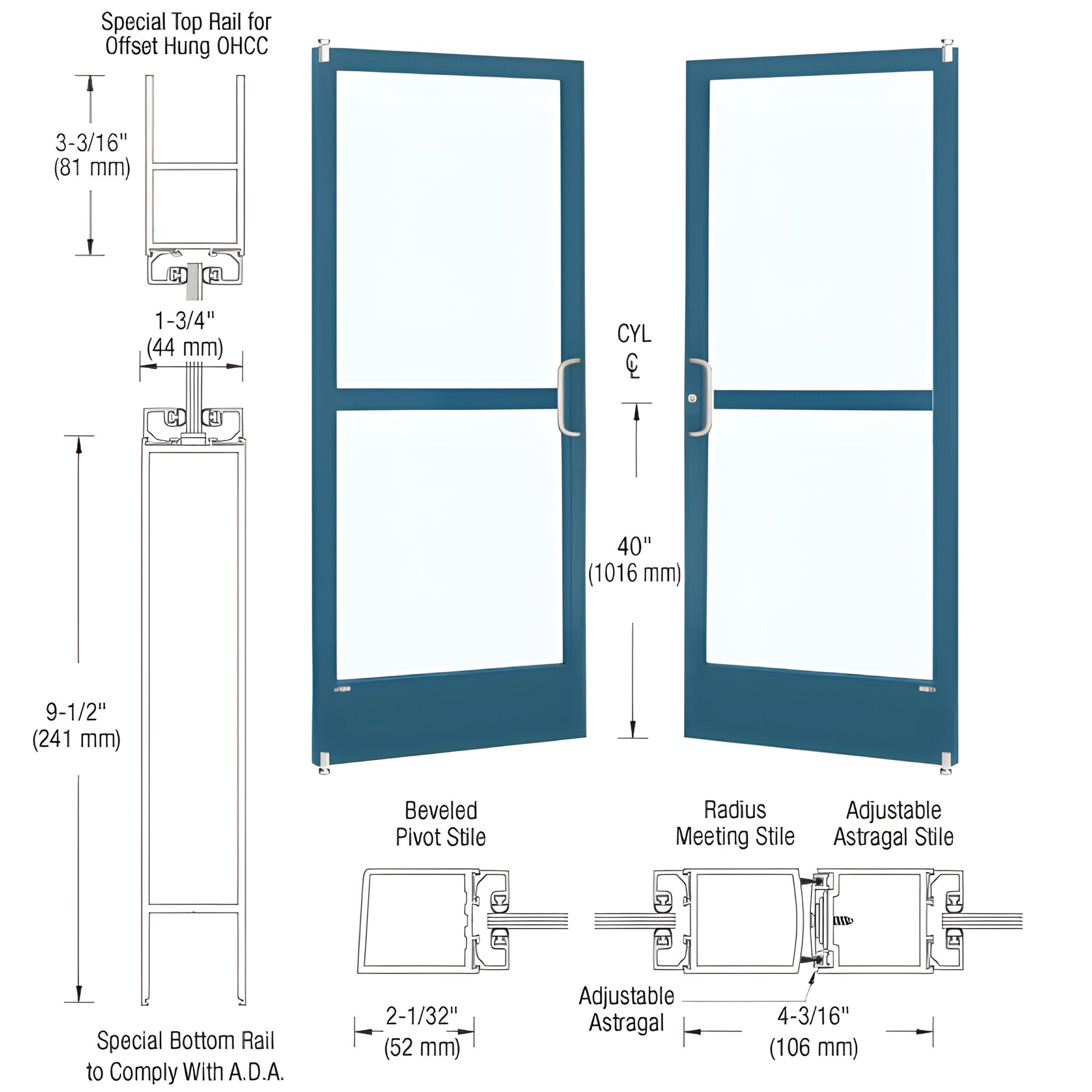

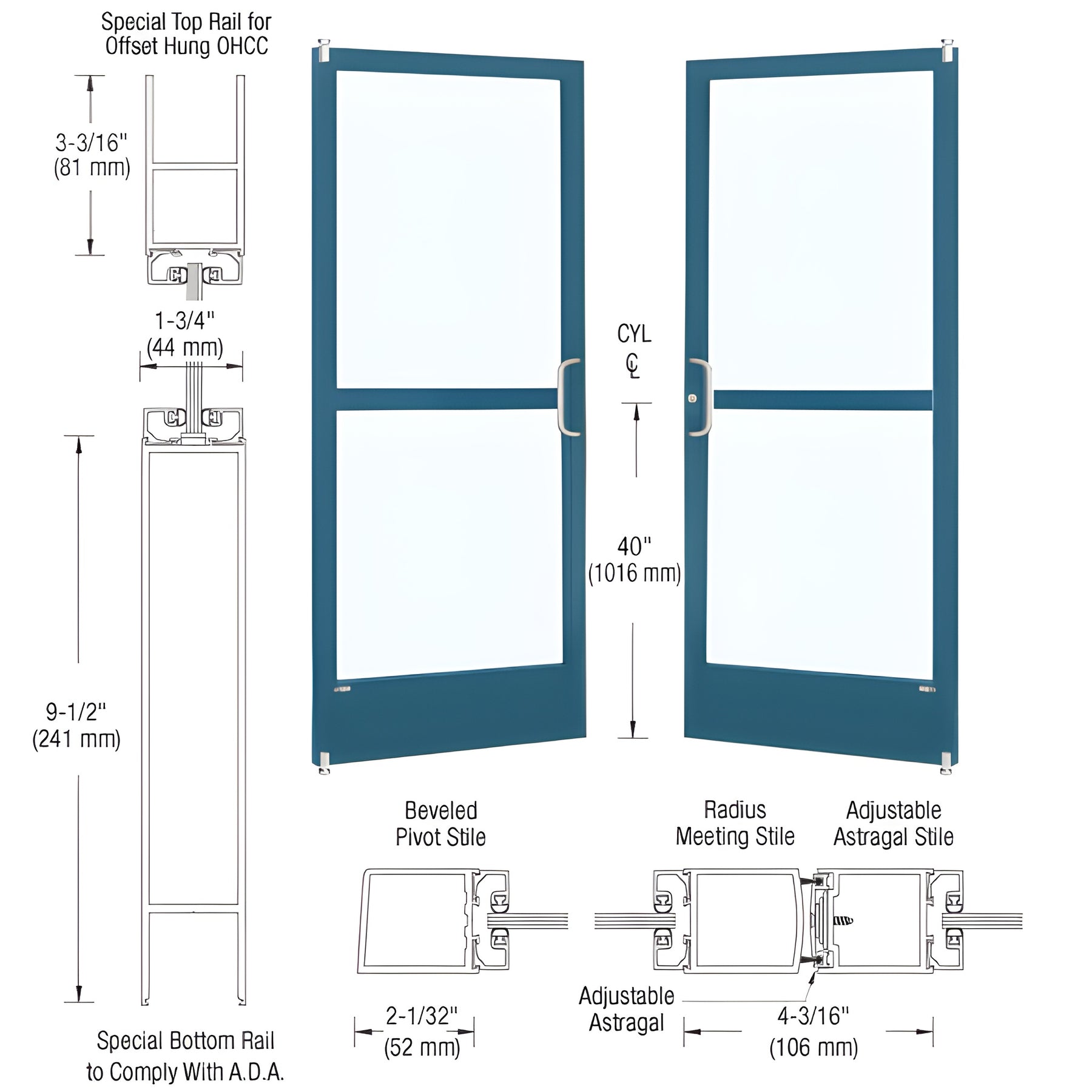

This CRL Custom Narrow Stile Entrance Door (SKU: CZ22171) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for narrow stile storefronts, it includes glass stops for 1/4" (6 mm) tempered glass (by others) and is ready for custom fabrication to accommodate a wide range of optional hardware applications, including offset pivots and concealed vertical rod panic devices.
Customer must install included protruding hardware (handles, pivots, etc.) shipped separately to prevent transit damage.
Order this narrow stile entrance door (CZ22171) or contact CRL for custom hardware options and shipping details.
Specifications
BIM Objects - rvt
