CRL-U.S. Aluminum KYNAR® Offset Wide-Stile Pivot Door 550 w/ Panic

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder — ready for commercial exit applications
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements for accessibility
• Custom fabricated to accept a wide range of optional hardware applications, including offset pivot and specialty commercial fittings

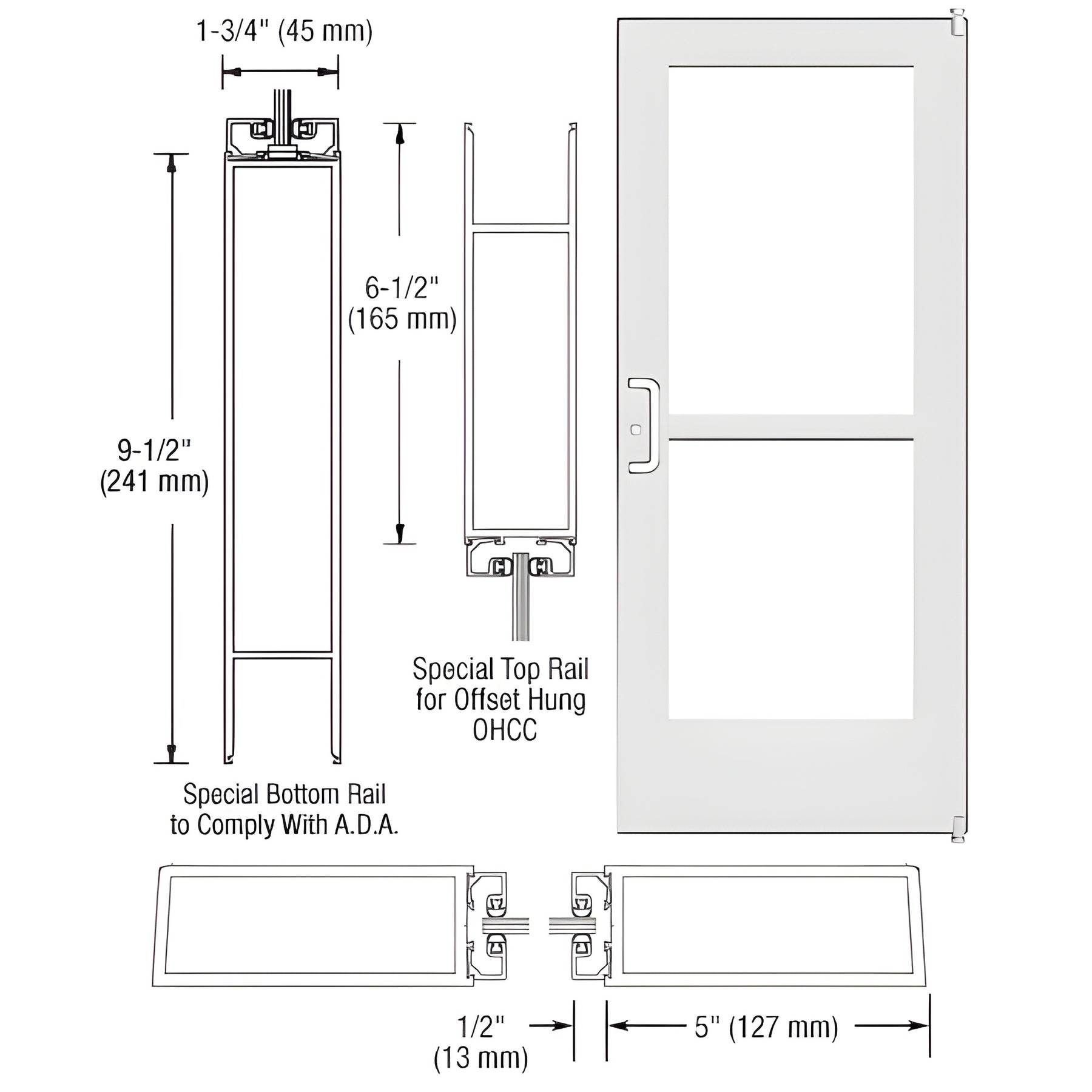

This CRL Custom Wide Stile Entrance Door (SKU: CZ51152) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for storefront and commercial glass entrance installations, the door includes stiles prepared for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass supplied by others. It is ready for custom fabrication to fit optional commercial hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU CZ51152 — contact CRL for custom hardware options and lead times.
