CRL-U.S. Aluminum KYNAR Series 250 Narrow Pivot Door, ADA Rail

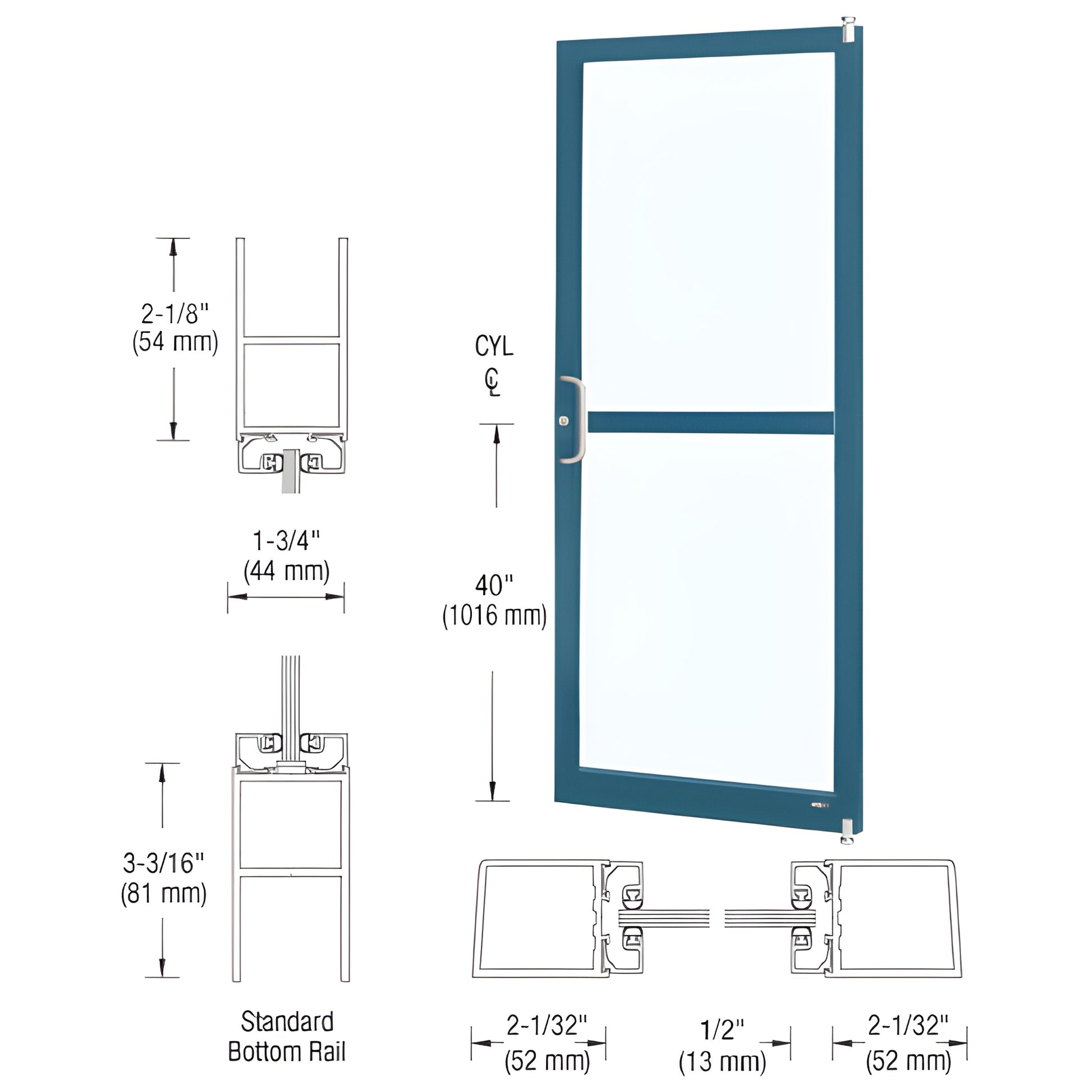

• 3-3/16" (81 mm) Bottom Rail
• Custom fabricated to accept optional hardware applications
• Includes rim device, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)

This Custom Narrow Stile Entrance Door (SKU: DR21271) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard preparation includes stiles for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass. Built for easy customization, the door is ready for a wide range of optional commercial hardware applications—ideal for storefronts and high-traffic entranceways requiring narrow stile, tempered glass door solutions.

Note: Protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Doors under 36" (914 mm) wide may not meet A.D.A. inspection requirements.

For custom hardware options or to confirm compatibility with insulated glass units, contact CRL Customer Service or request a quote for SKU DR21271.
