CRL-U.S. Aluminum KYNAR® Series 400 Medium Stile Butt-Hinged Entrance Door
Item# HE41571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 7-1/2" (191 mm) bottom rail for added durability
- Custom fabricated to accept a wide range of optional hardware applications

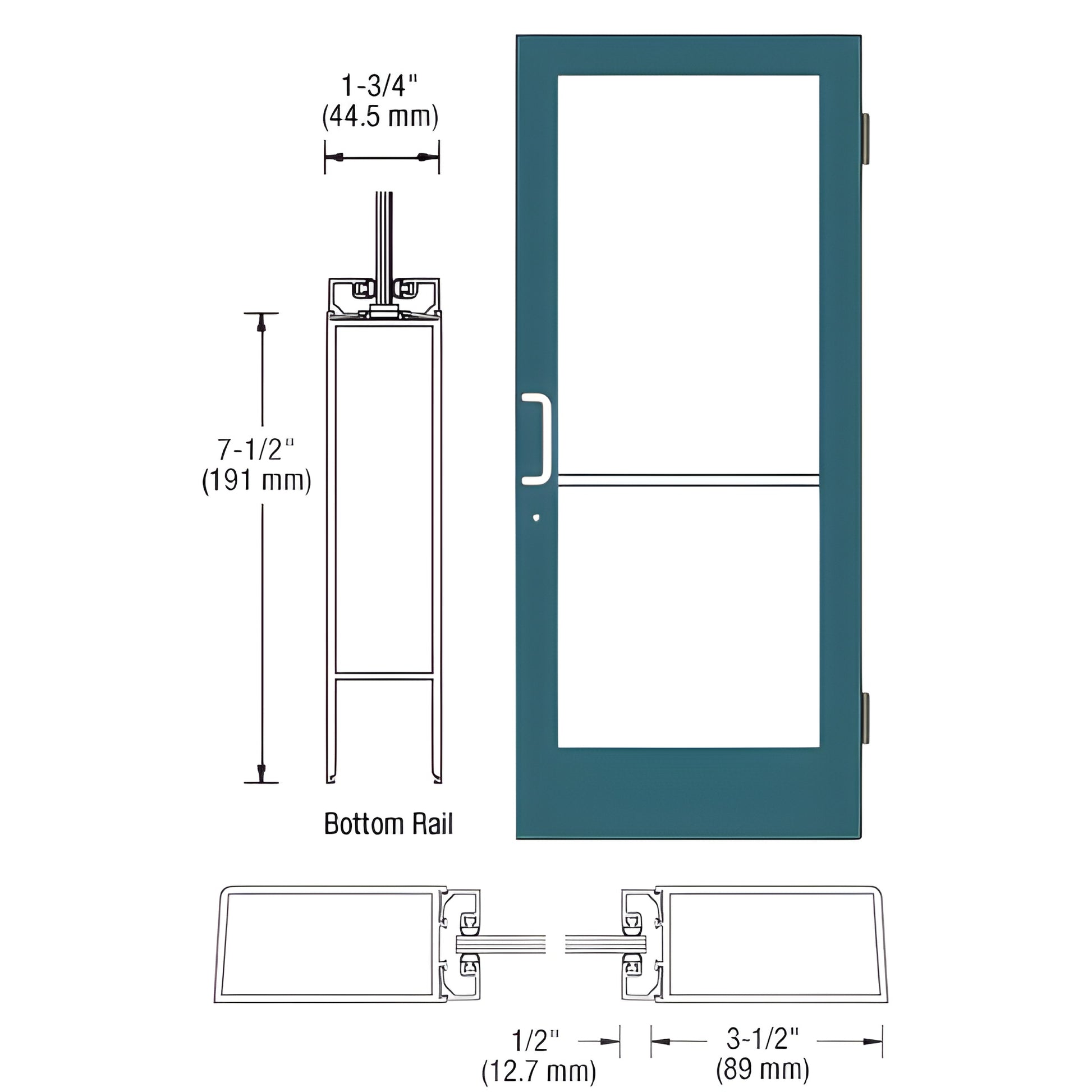

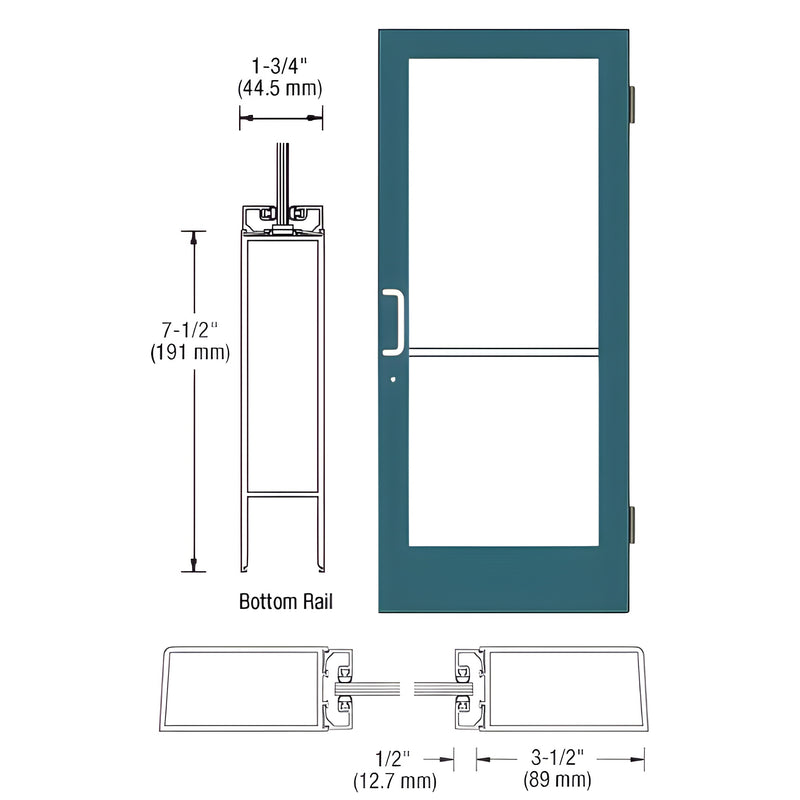

Custom Medium Stile Entrance Door—SKU HE41571—features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial and storefront use, this medium stile glass entrance door ships with stiles configured for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built to be custom fabricated for additional hardware options to meet project-specific requirements.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage in transit and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.
Identify the right custom medium stile entrance door for your storefront—contact CRL Customer Service to confirm options and place your order.
