CRL-U.S. Aluminum KYNAR Single Exterior Door w/ Panic & Surface Closer
CRL-U.S. Aluminum KYNAR Single Exterior Door w/ Panic & Surface Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ41571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 7-1/2" (191 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass with the option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder

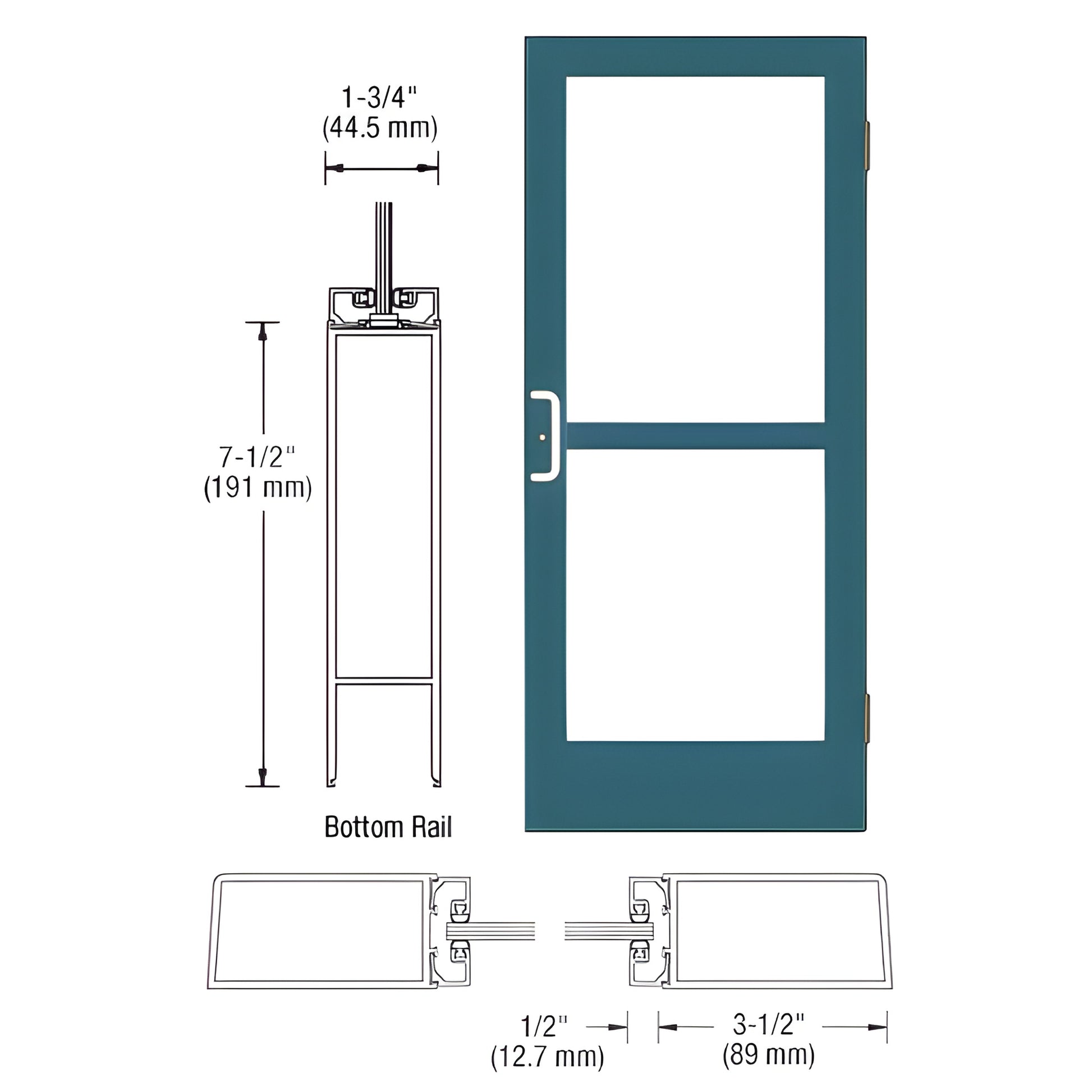

This Custom Medium Stile Entrance Door (SKU: HZ41571) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial entrance applications, it ships with stiles prepped for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). The door is custom-fabricated to accept a wide range of optional hardware for storefront, office, and institutional installations.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU HZ41571 or contact our sales team for customization and lead times.
Specifications
BIM Objects - rvt
