CRL-U.S. Aluminum KYNAR Wide-Stile Geared-Hinge Doors w/ Panic Bar
CRL-U.S. Aluminum KYNAR Wide-Stile Geared-Hinge Doors w/ Panic Bar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ52852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accommodated (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with ADA
- Custom fabricated to accept a wide range of optional hardware applications

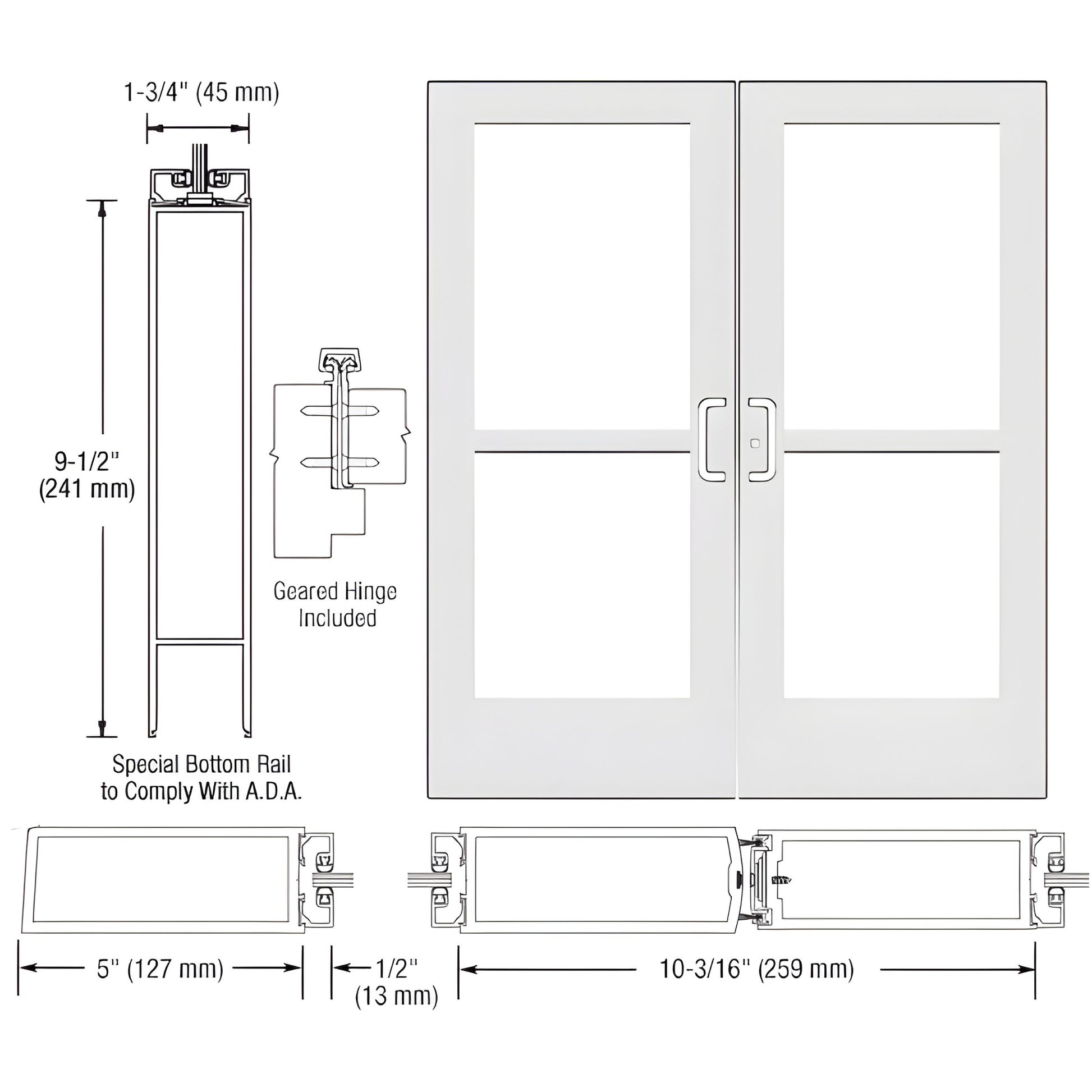

This CRL Custom Wide Stile Entrance Door (SKU: CZ52852) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard design includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom fabrication, this wide stile entrance door accommodates concealed vertical rod panic hardware and optional insulated glass units for enhanced thermal performance.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Need a quote or help specifying hardware options for this wide stile entrance door (CZ52852)? Contact CRL Customer Service to get started.
Specifications
BIM Objects - rvt
