CRL-U.S. Aluminum Narrow Door Jamb - Black Bronze, Custom Size

CRL-U.S. Aluminum Narrow Door Jamb - Black Bronze, Custom Size

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# J12DUC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
1/2 in. (12 mm)
Height
13/16 in. (21 mm)
Width
4 in. (102 mm)

Overview

  • Only 13/16" (21 mm) Wide
  • No Exposed Fasteners
  • Cladding in Five Architectural Finishes

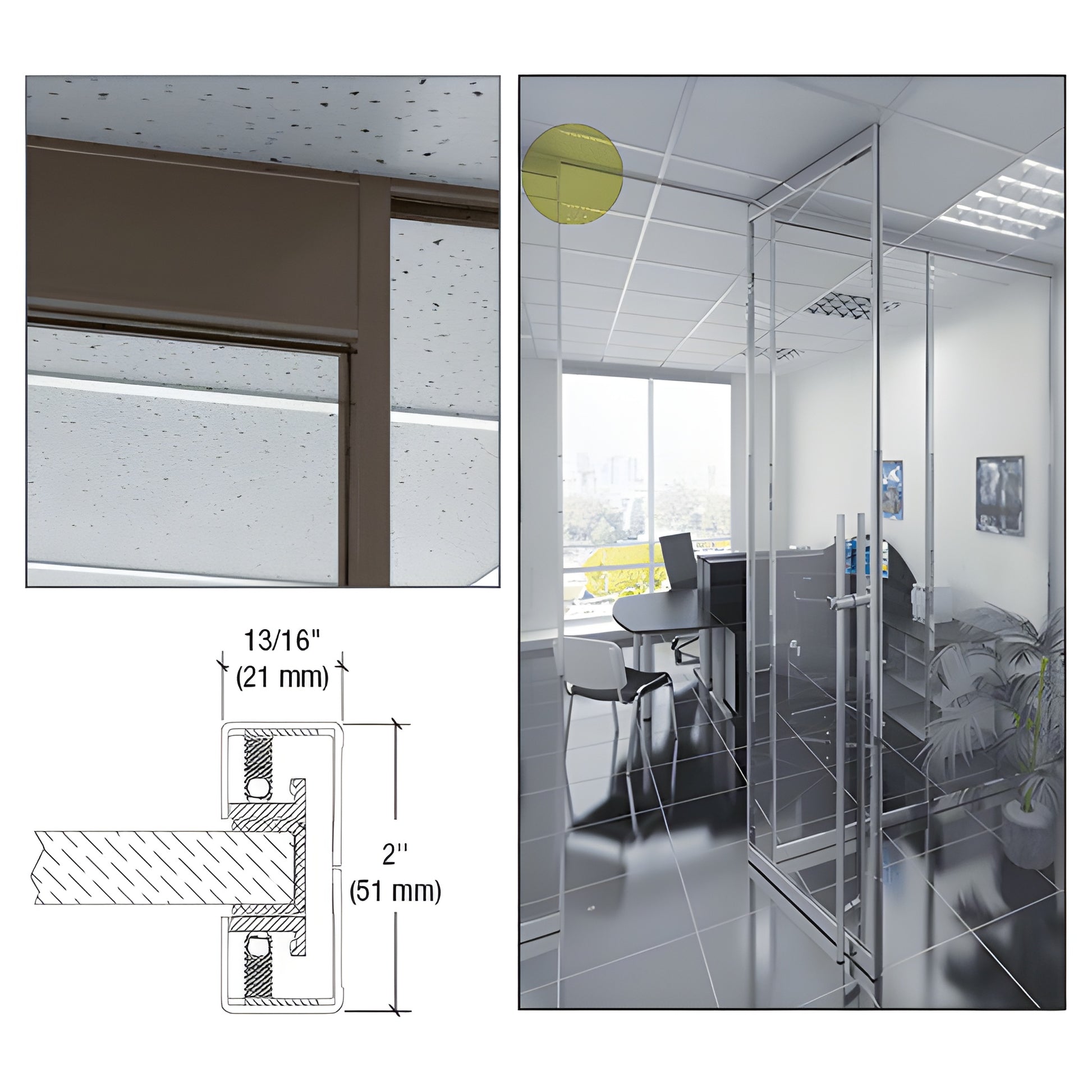

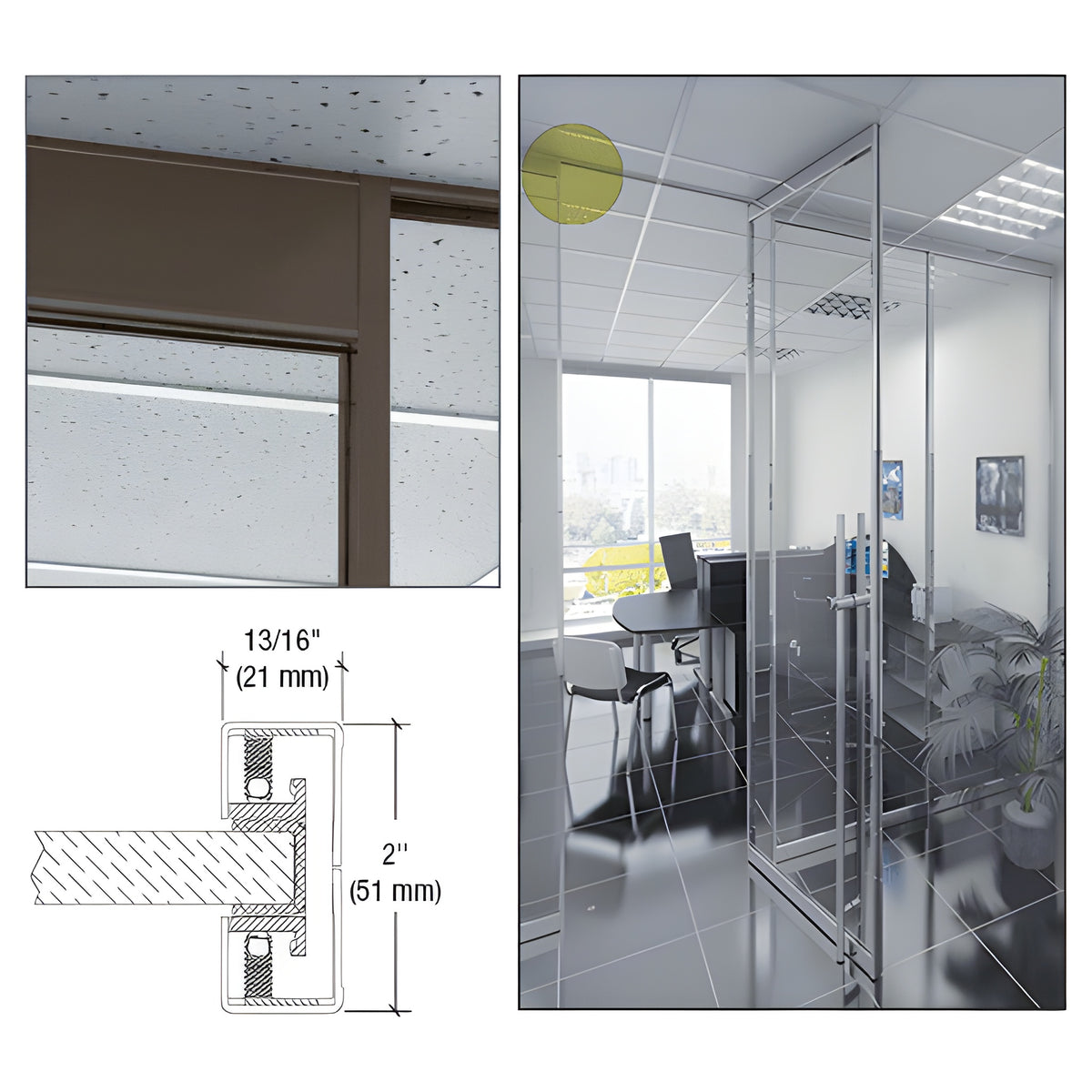

Create sleek interior office glass fronts with 1/2" (12 mm) fully tempered glass using narrow-profile jambs and vertical mullions. These J12 mechanical clamping components integrate with SRS Sidelite Rails and complement DRS Door Rails and Vertical Weatherstiles to deliver a higher-performance alternative to typical butt-glazed installations. The improved mechanical weatherstile design simplifies installation and installs cleanly with no exposed fasteners. J12 is available in 120" (3.05 m) stock lengths or special-ordered to custom lengths. Architectural cladded finishes include satin anodized, black bronze anodized, polished stainless steel, brushed stainless steel, and polished brass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor's settings.

SKU: J12DUC — For pricing, lead times, or custom lengths, contact CRL Customer Service to order or get a quote.


Specifications

Installation Instructions
Narrow Office Front Installation Instructions
