CRL-U.S. Aluminum Narrow Door Jamb, Brushed Stainless - Custom Fit
CRL-U.S. Aluminum Narrow Door Jamb, Brushed Stainless - Custom Fit
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# J12BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
13/16 in. (21 mm)
Width
4 in. (102 mm)
Overview

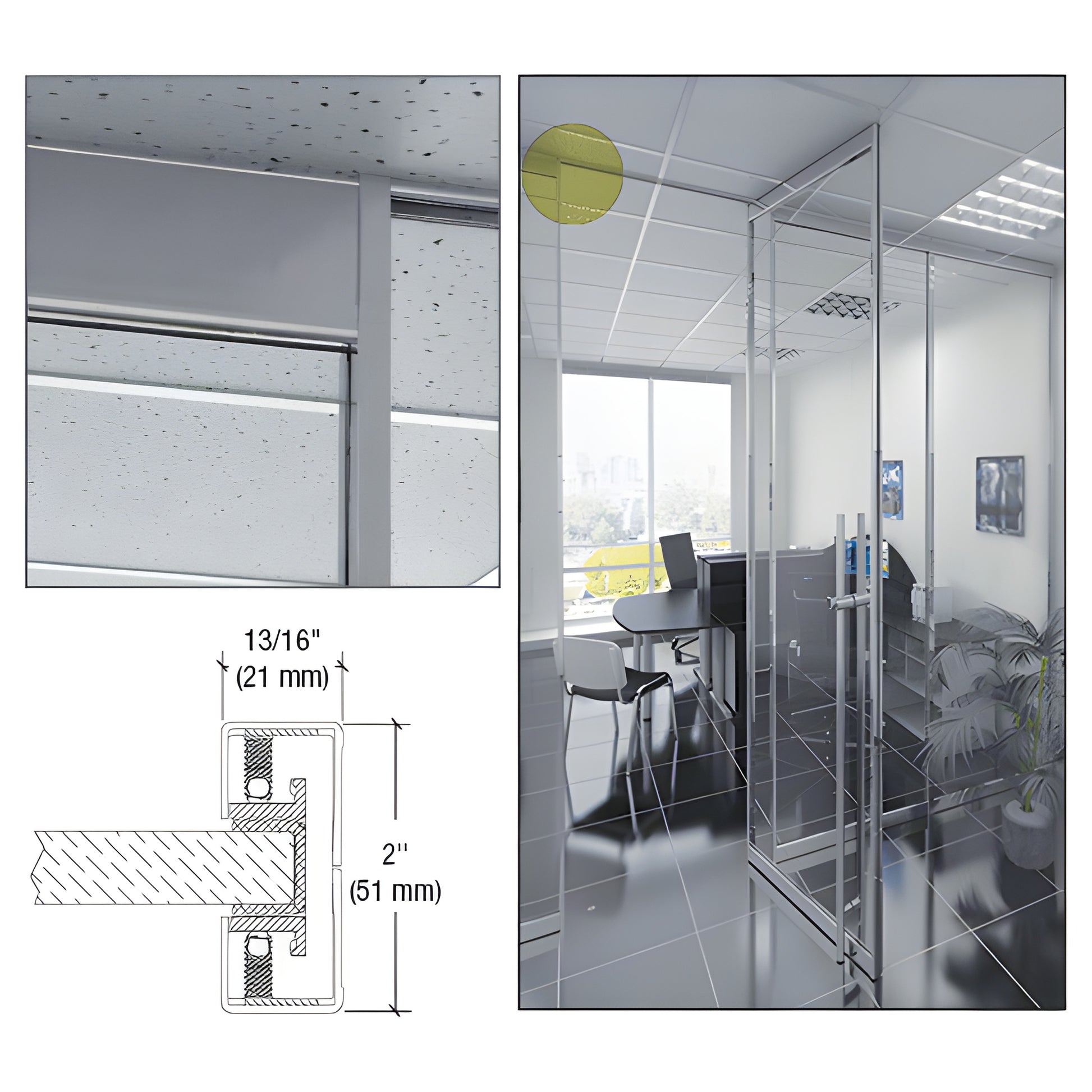

- Only 13/16" (21 mm) Wide — ultra-narrow profile jamb for glass office fronts
- No Exposed Fasteners for a clean, modern interior finish
- Cladding in Five Architectural Finishes: satin anodized, black bronze anodized, polished stainless, brushed stainless, polished brass
Create sleek interior office fronts and sidelites using 1/2" (12 mm) fully tempered glass with narrow profile jambs and vertical mullions. These mechanical clamping components integrate with SRS Sidelite Rails and complement DRS Door Rails and Vertical Weatherstiles to deliver a higher-performance, butt-glazed alternative. Installation is easier than traditional mechanical weatherstiles, and J12 is available in 120" (3.05 m) stock lengths or special-ordered to match your project requirements. SKU: J12BSC.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Contact CRL to specify finish options or to order J12BSC for your next interior glass storefront project.
