CRL-U.S. Aluminum Narrow Stile Center Pivot Door, KYNAR® Paint, Panic

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Custom made to your size specification
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass with optional 1" (25 mm) tempered insulating unit (glass not included)

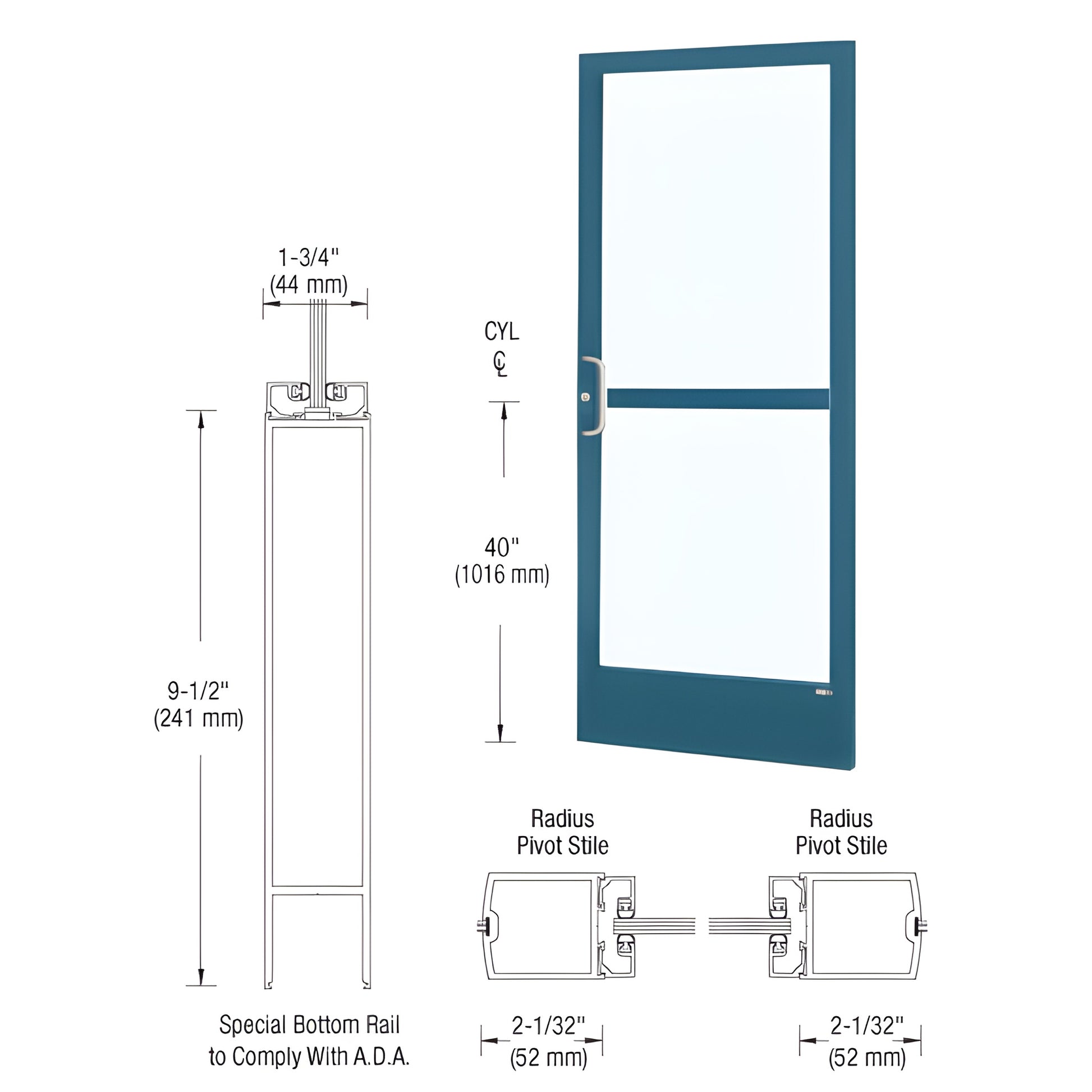

This CRL Custom Narrow Stile Entrance Door (SKU: CZ21771) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard design includes stiles for center pivot hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Door is ready for custom fabrication to accept a wide range of optional hardware, making it ideal for commercial storefronts, retail entrances, and ADA-conscious building projects.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not pass ADA inspection.

Order SKU CZ21771 or contact CRL for a custom quote and lead time.
