CRL-U.S. Aluminum Narrow-Stile Offset Pivot Entrance Door, Kynar
Item# DE22171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A. requirements
- Includes Active and Inactive Leaf with all standard hardware
- Custom fabricated to accept a wide range of optional hardware applications

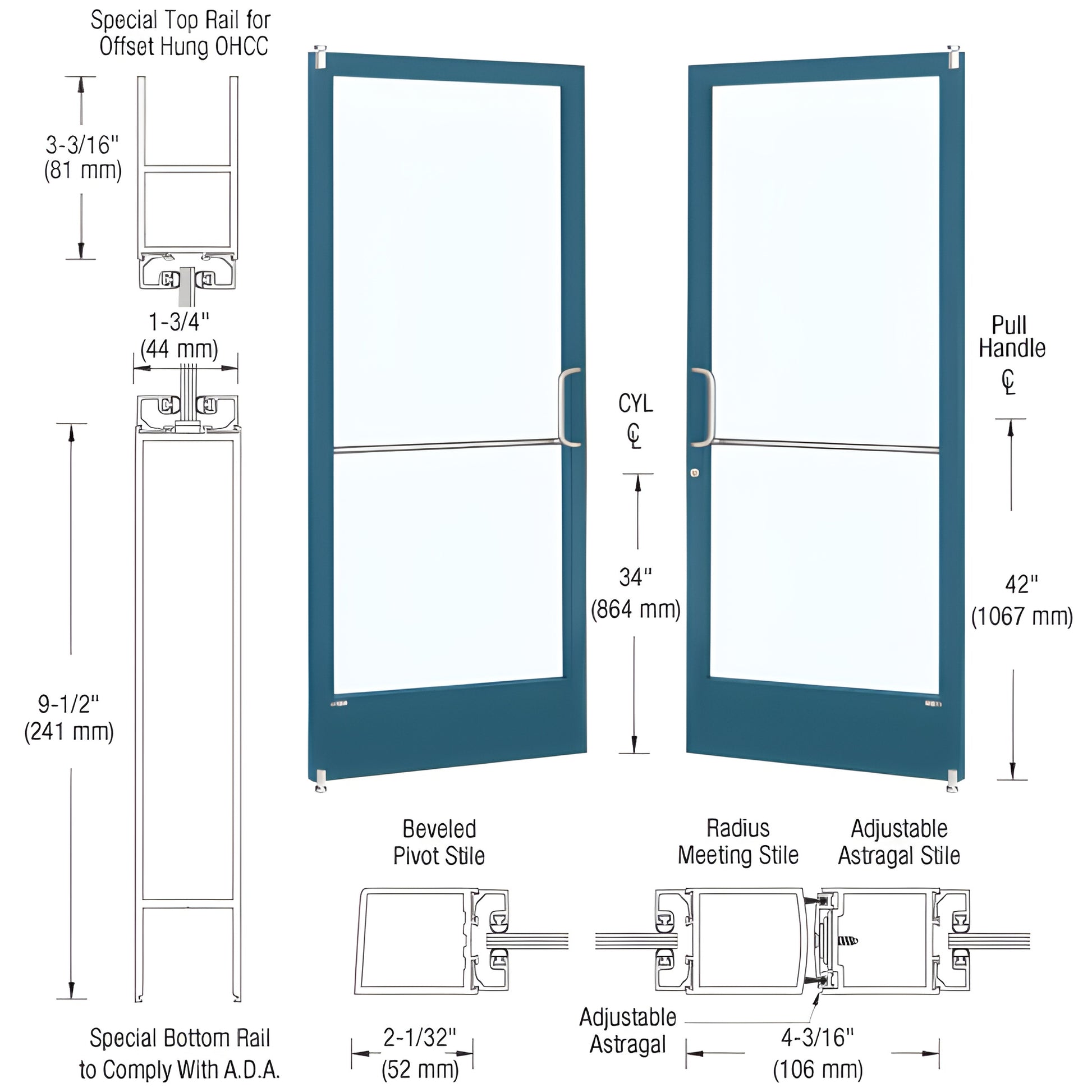

This Custom Narrow Stile Entrance Door (SKU DE22171) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard options include stiles prepped for Offset Pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied and installed by others). The door is ready for custom fabrication to accommodate optional locks, commercial hinges, pivots, and other specialty hardware.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer or installer.
Most shipping weights are approximate and unverified. If you need exact weight to calculate shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.
