CRL-U.S. Aluminum Narrow Stile Offset Pivot Entrance Doors w/ Panic

• 9-1/2" (241 mm) bottom rail — ADA compliant for accessible entry thresholds
• Lifetime Warranty on CORNER-LOC® mechanically fastened and welded corner construction. U.S. Patent No. 9,127,504
• Custom fabricated to accept optional hardware applications, including offset pivot and concealed vertical rod panic hardware
• Includes active and inactive leaf with all standard concealed vertical rod panic hardware
• Designed to accommodate 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)

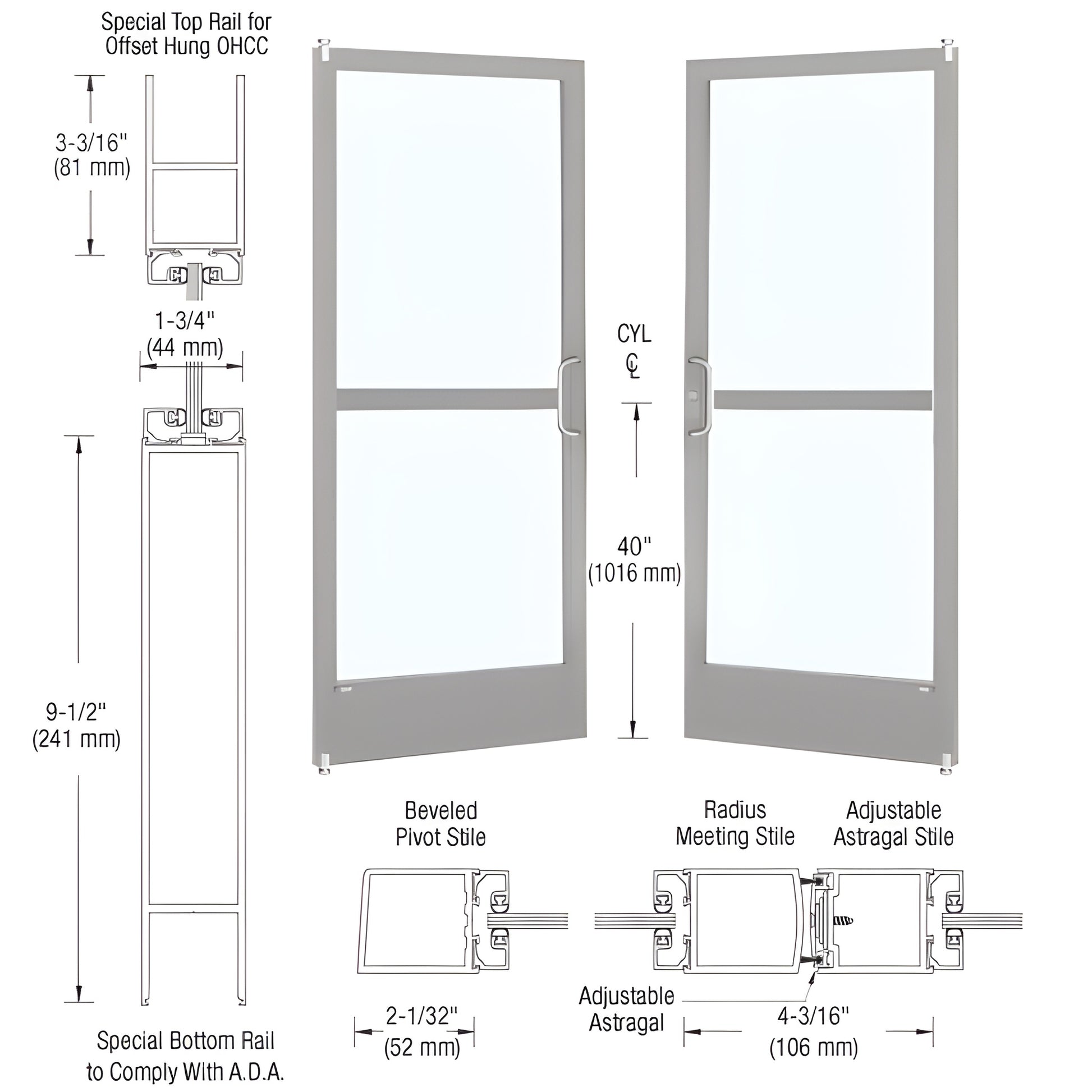

This CRL Custom Narrow Stile Entrance Door (SKU: CZ22111) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard configuration includes stiles for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass; door is ready for custom fabrication to support a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.

Order the CRL Narrow Stile Entrance Door (CZ22111) for a durable, ADA-compliant commercial entry solution—contact us to configure custom hardware options.
