CRL-U.S. Aluminum Offset Geared Hinge w/ Panic, White KYNAR®
CRL-U.S. Aluminum Offset Geared Hinge w/ Panic, White KYNAR®
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ41852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications

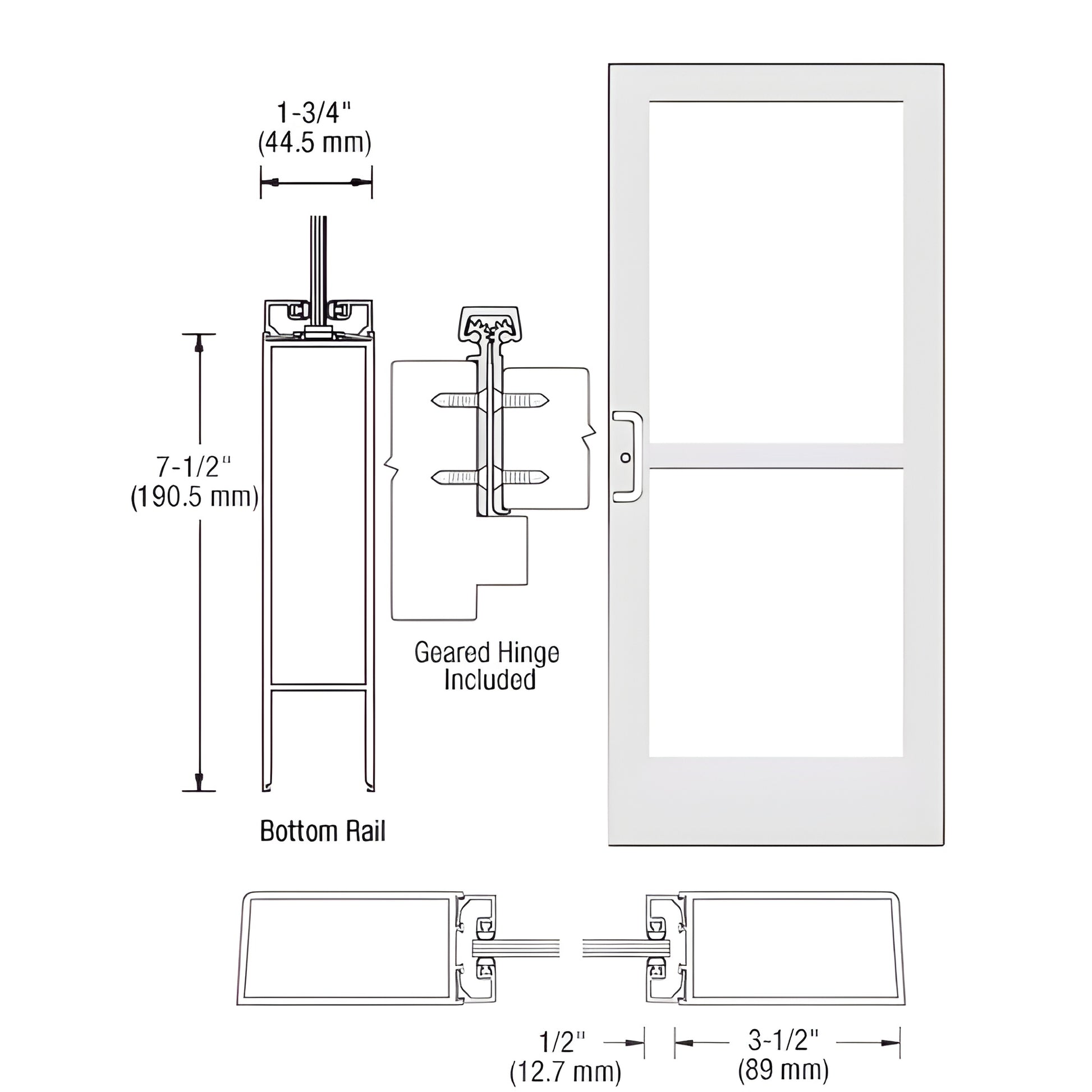

This Custom Medium Stile Entrance Door (SKU: HZ41852) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial applications, it ships with stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (provided by others). Ready for custom fabrication to accept a wide range of optional hardware, including concealed vertical rod panic hardware for emergency egress.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to avoid transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
Order the HZ41852 custom medium stile entrance door for secure, glass-ready commercial entries — contact us to start your custom configuration.
Specifications
BIM Objects - rvt
