CRL-U.S. Aluminum Offset Hung Geared Hinge Door for Overhead Closer

• Includes Standard Push/Pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders (SKU: DE41911)
• Accepts 1/4” (6 mm) tempered glass; optional 1” (25 mm) tempered insulating unit can be accommodated (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept a wide range of optional hardware applications and ready for storefront or commercial entrance installations

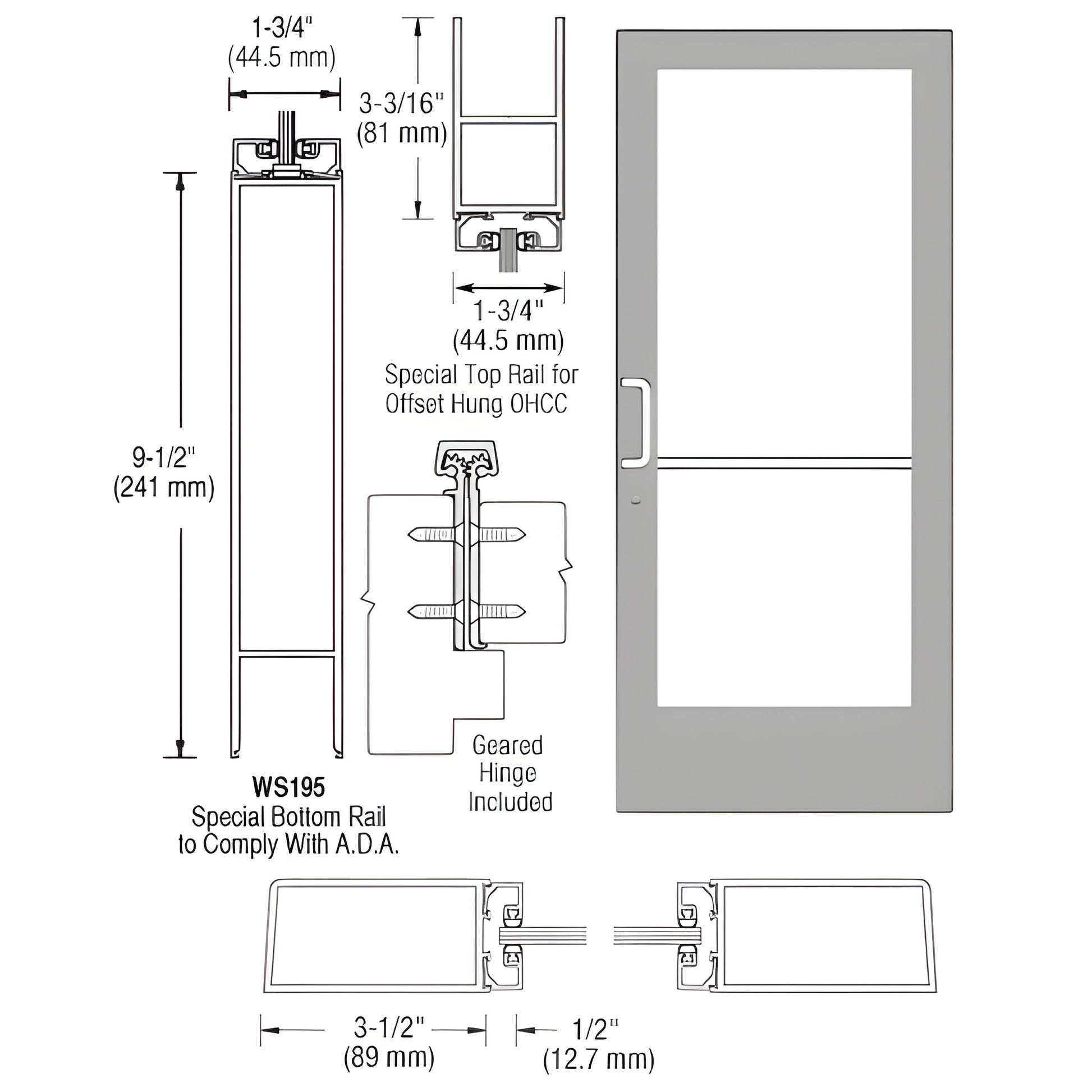

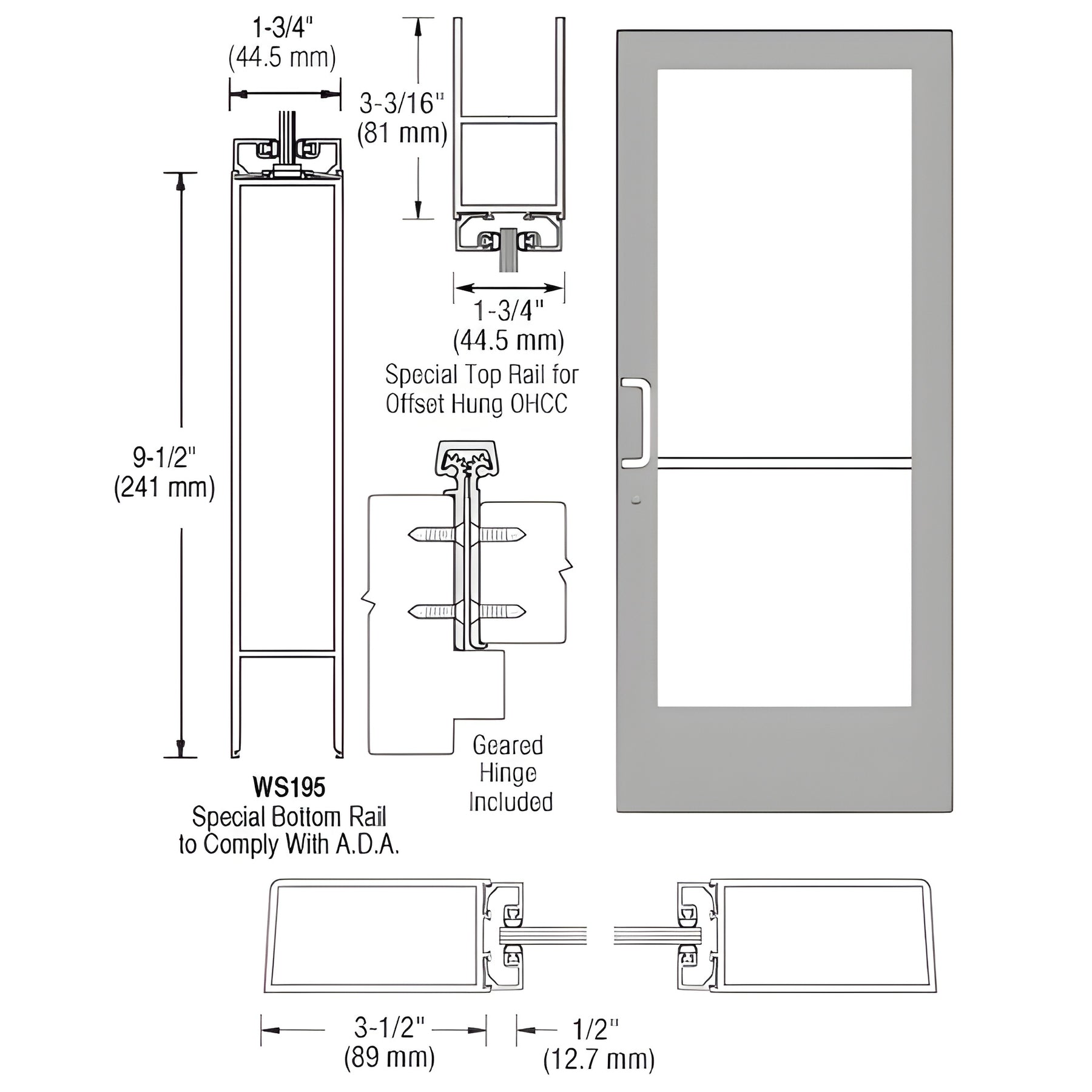

This Custom Medium Stile Entrance Door (DE41911) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard design includes stiles for Gear Hinge hardware and glass stops for 1/4” (6 mm) tempered glass (glass supplied by others). Built for commercial use and customizable for specialty hardware such as pivots and heavy-duty locksets.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately for transit protection and must be installed on site. Doors narrower than 36" (914 mm) may not meet A.D.A. inspection requirements.

Order the DE41911 custom medium stile entrance door for an ADA-compliant, customizable storefront solution — contact us to confirm options and lead time.
