CRL-U.S. Aluminum Offset Pivot Door, Narrow Stile, Concealed Closer
CRL-U.S. Aluminum Offset Pivot Door, Narrow Stile, Concealed Closer
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC21171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Standard 3-3/16" (81 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications (offset pivot ready)
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

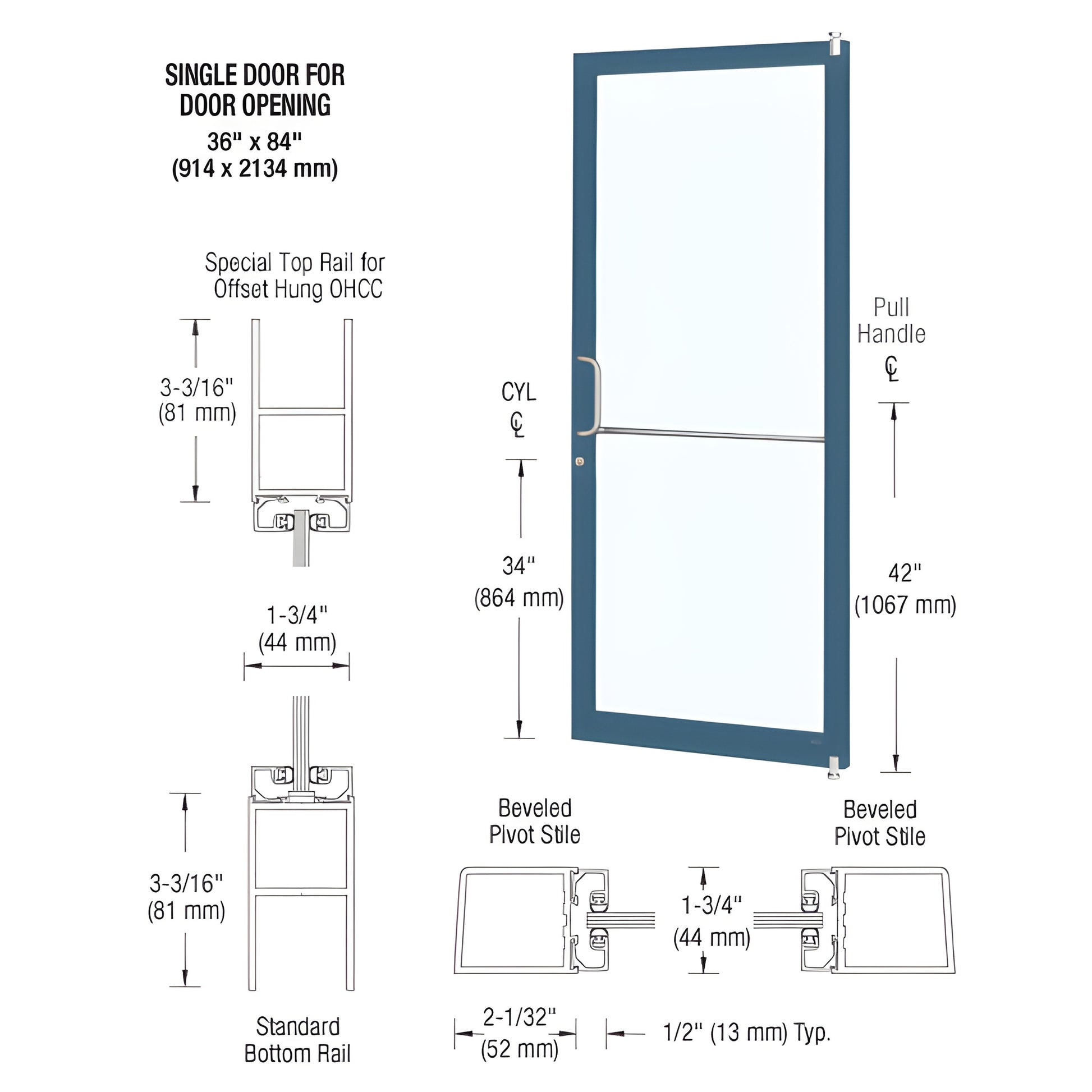

CRL Custom Narrow Stile Entrance Door (SKU: DC21171) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Designed as a narrow stile commercial entrance door for tempered glass, it ships ready for custom fabrication to support a wide range of optional hardware applications, including offset pivot hardware systems.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
For pricing, customization options, or to order this narrow stile entrance door (DC21171), contact CRL Customer Service or add to cart now.
Specifications
BIM Objects - rvt
