CRL-U.S. Aluminum Offset Pivot Door Series 250 - Clear Anodized Custom

CRL-U.S. Aluminum Offset Pivot Door Series 250 - Clear Anodized Custom

$0.00 CAD
$0.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DE21111
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders — SKU: DE21111
  • 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A. requirements
  • Custom fabricated to accept optional hardware applications (offset pivot, panic, closer prep)

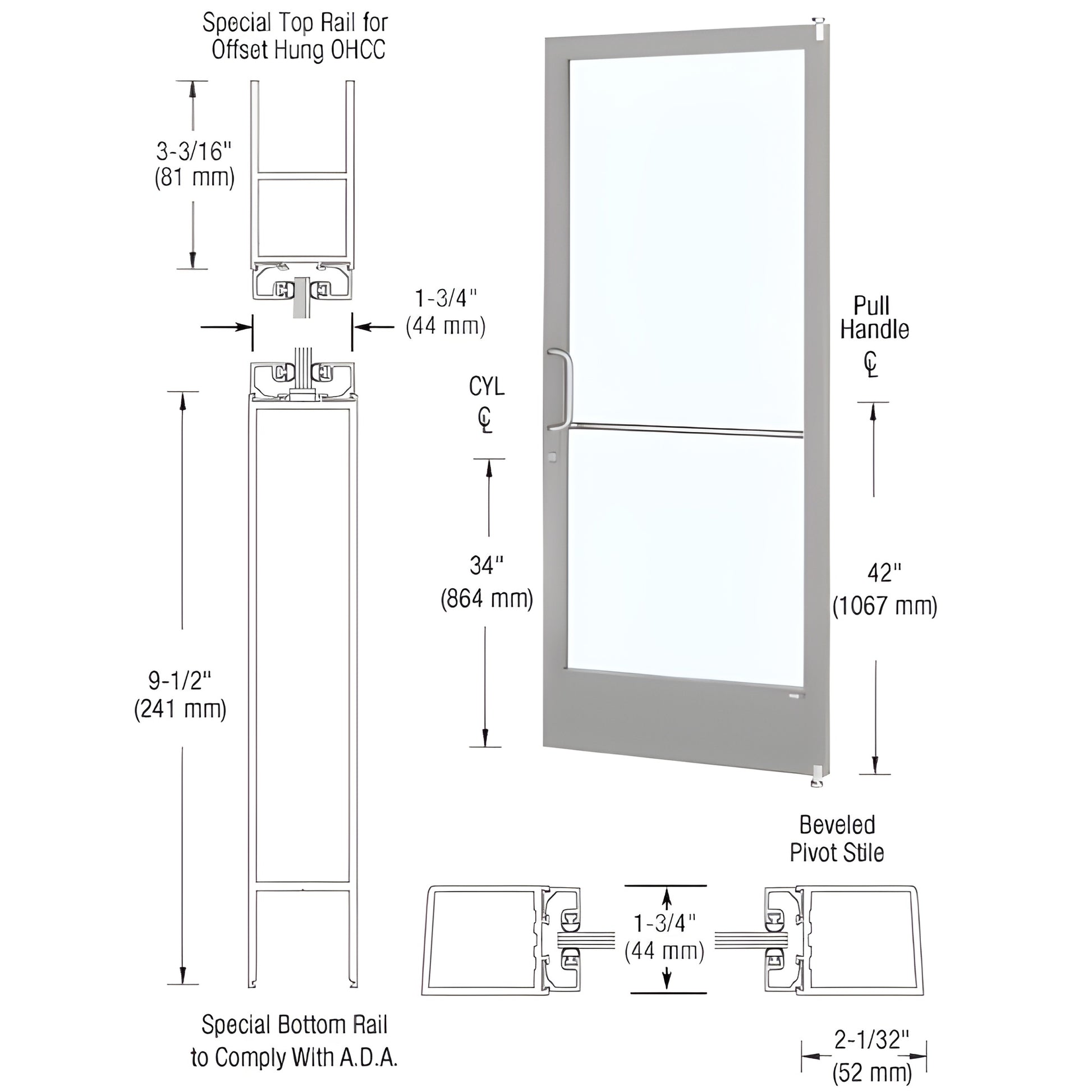

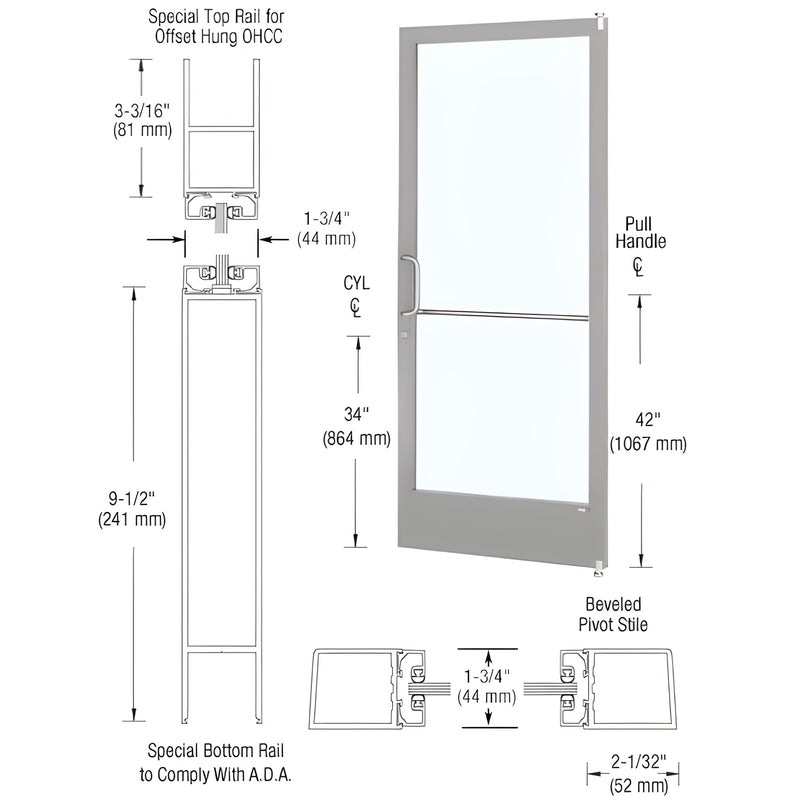

Custom Narrow Stile Entrance Door built with 2" (51 mm) stiles, 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard preparations include stiles for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Door arrives with protruding hardware (handles, pivots, etc.) boxed separately for protection and must be installed by the customer or installer.

Key differentiators: factory-ready for custom hardware installations, ADA-compliant bottom rail, bundled MS Hookbolt Lock and keyed-alike cylinders for simplified access control.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Order SKU DE21111 or contact CRL for custom hardware options and installation guidance.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
