CRL-U.S. Aluminum Offset Pivot Door w/ Panic & Surface Closer
Item# HZ21211
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1

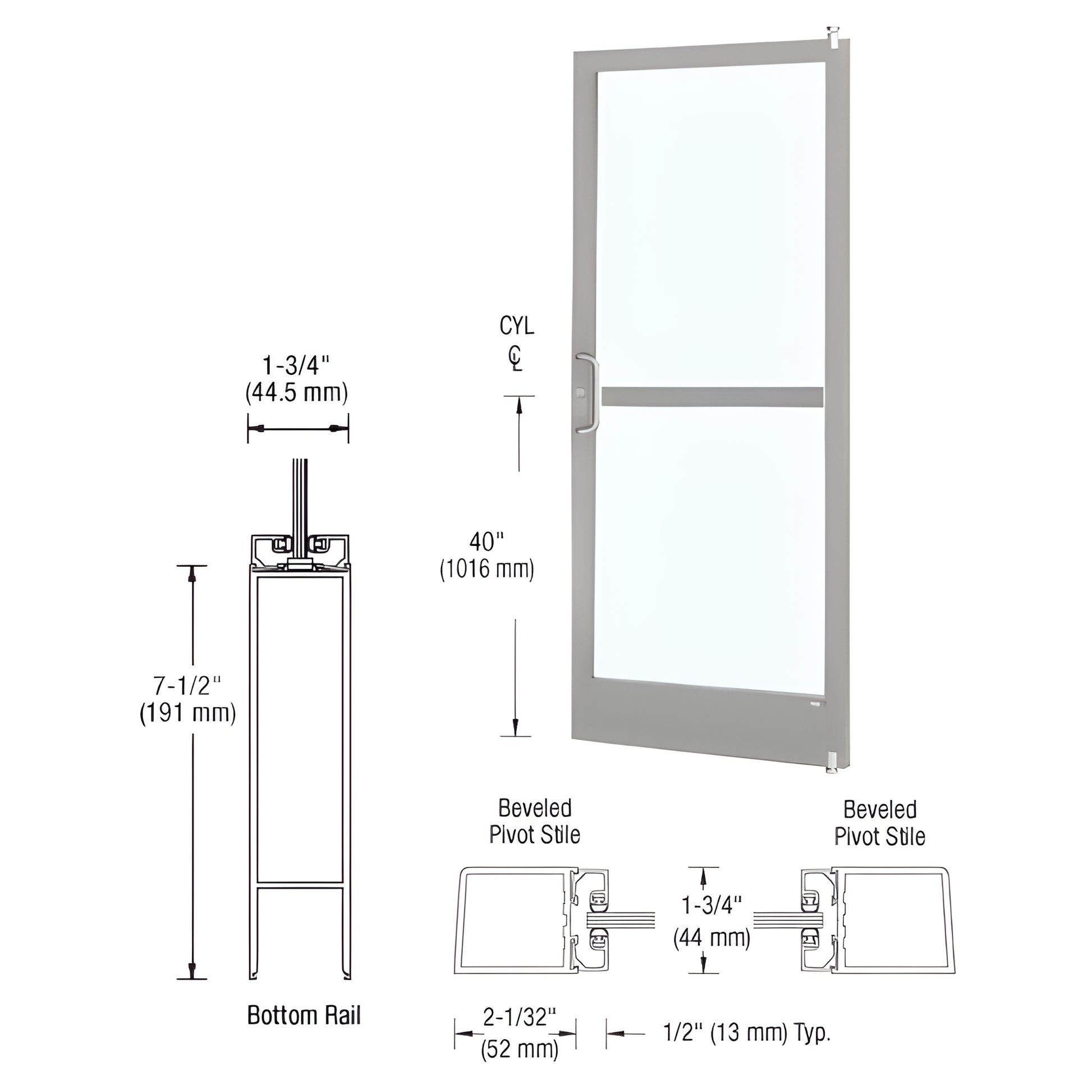

- 7-1/2" (191 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
This Custom Narrow Stile Entrance Door (SKU: HZ21211) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial glass entrances, it ships ready for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass. Built for custom fabrication, the frame accepts a wide range of optional hardware applications for storefront and commercial entry installations.
Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and unverified. If you require exact weight for shipping quotes prior to ordering, contact CRL Customer Service. Product images are representative; actual colors may vary by monitor settings.
Key differentiators: narrow stile design for modern storefronts, pre-configured panic hardware and cylinder, and flexible fabrication for optional hardware—ideal for commercial entrance retrofit and new construction projects.
Order SKU HZ21211 or contact us for a custom quote today.
BIM Objects - rvt
