CRL-U.S. Aluminum Offset Pivot Narrow-Stile Doors KYNAR® Closer-Ready
CRL-U.S. Aluminum Offset Pivot Narrow-Stile Doors KYNAR® Closer-Ready
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22271
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

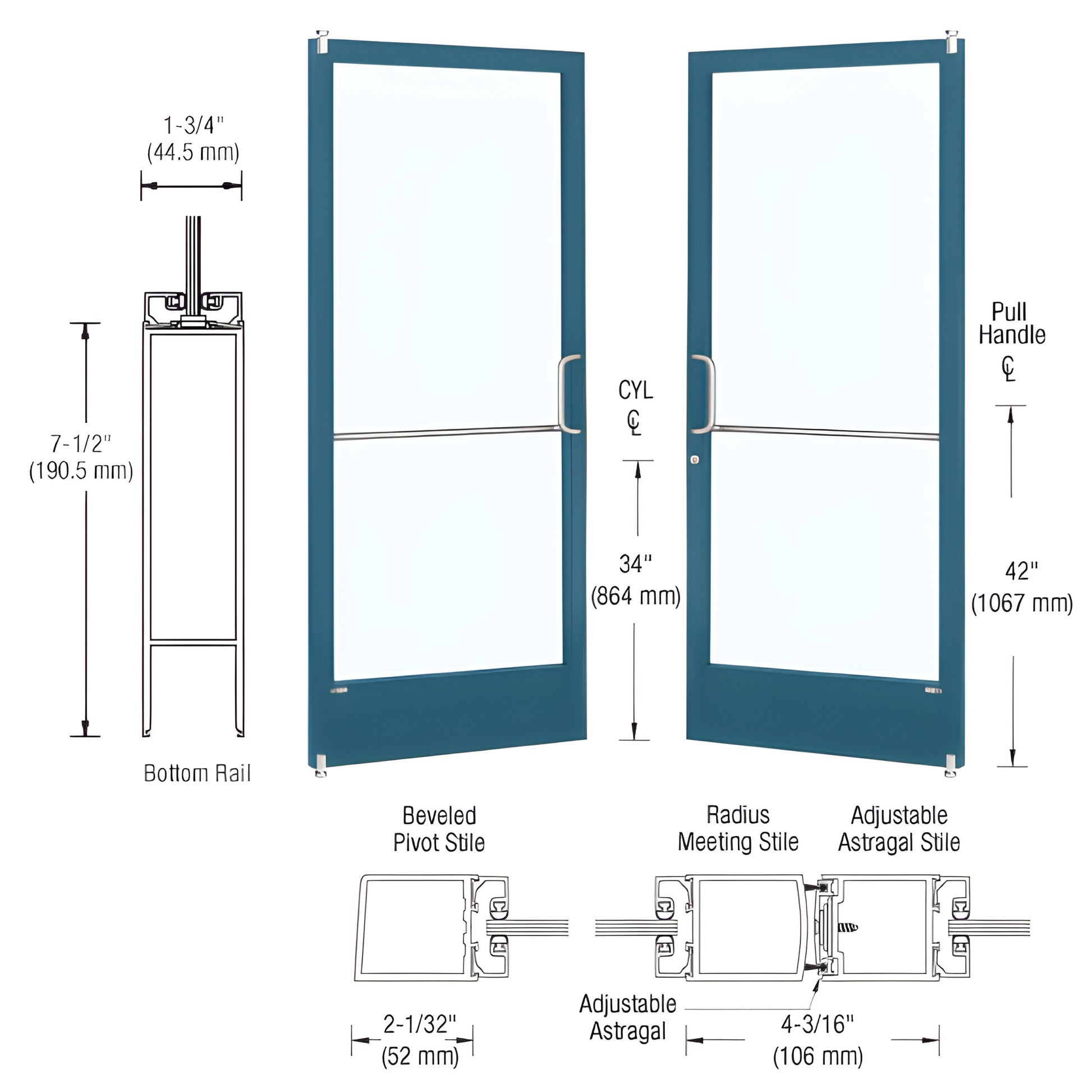

- 7-1/2" (191 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass with the option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware
This Custom Narrow Stile Entrance Door (SKU: HE22271) features narrow 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail engineered for commercial entrances. Standard design includes stiles prepared for Offset Pivot hardware and glass stops for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to support a wide range of optional hardware applications, making it ideal for storefronts and custom commercial entry projects.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on-site.
Order SKU HE22271 today to get a narrow stile entrance door ready for custom hardware—contact us to confirm options and lead times.
Specifications
BIM Objects - rvt
