CRL-U.S. Aluminum Offset Pivot Narrow-Stile Pair Doors KYNAR® Panic
CRL-U.S. Aluminum Offset Pivot Narrow-Stile Pair Doors KYNAR® Panic
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22252
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications (handles, pivots, locks)
- Includes active and inactive leaf with standard panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

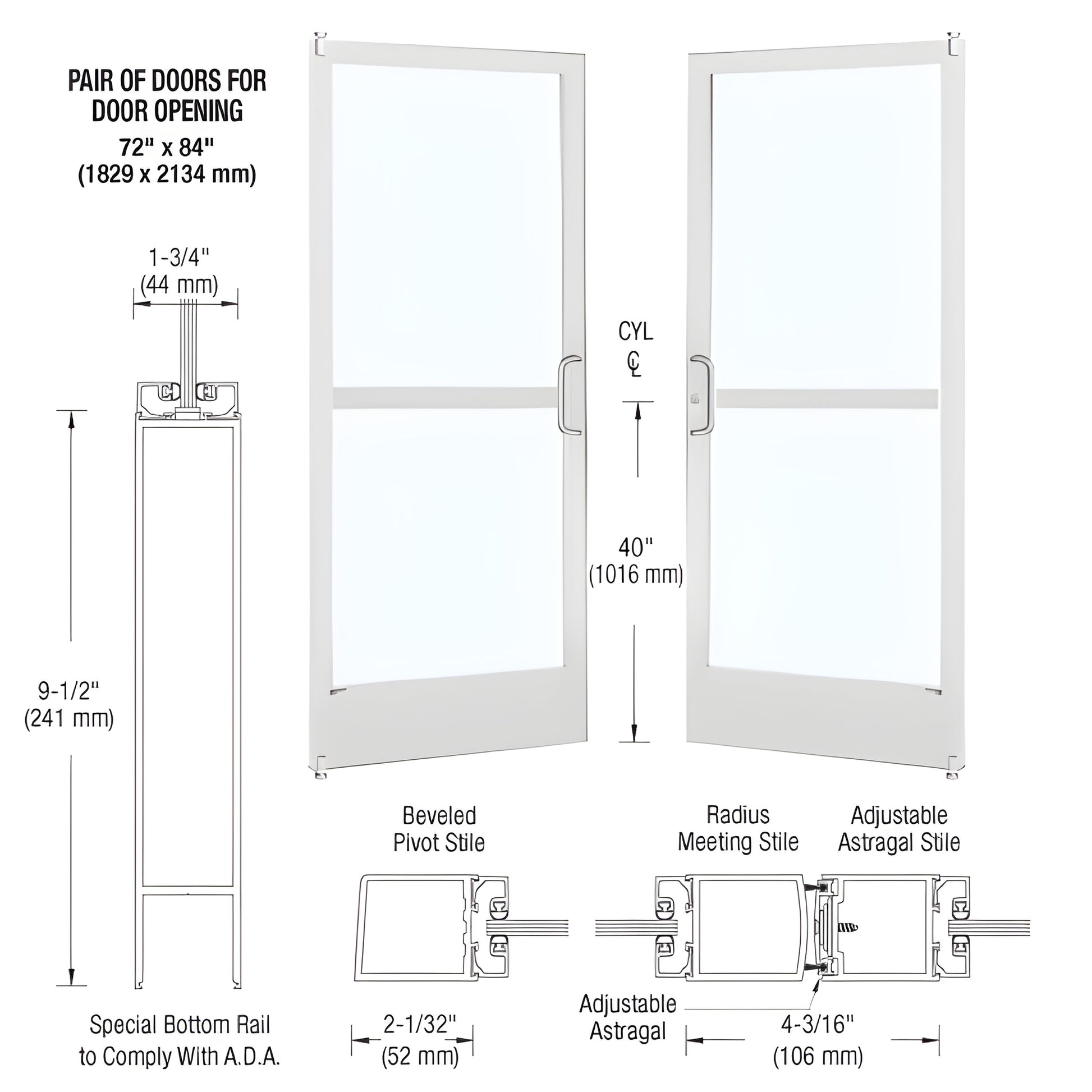

This Custom Narrow Stile Entrance Door (SKU: CZ22252) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard configuration is prepared for offset pivot hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass by others). Door is ready for custom fabrication to accommodate a wide range of optional hardware applications and field-installed protruding hardware (handles, pivots, etc.), which ship boxed separately to prevent transit damage.
For pricing, lead times, or to specify hardware and glass options for CZ22252, contact CRL or your sales representative today.
Specifications
BIM Objects - rvt
