CRL-U.S. Aluminum S250 Narrow Stile Offset Pivot Doors, White KYNAR®
Item# DC22152
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar
- Includes active and inactive leaf with all standard hardware (handles/pivots boxed separately)
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 9-1/2" (241 mm) bottom rail available for ADA and Title 24 applications
- Custom fabricated to accept optional architectural hardware and offset pivot applications

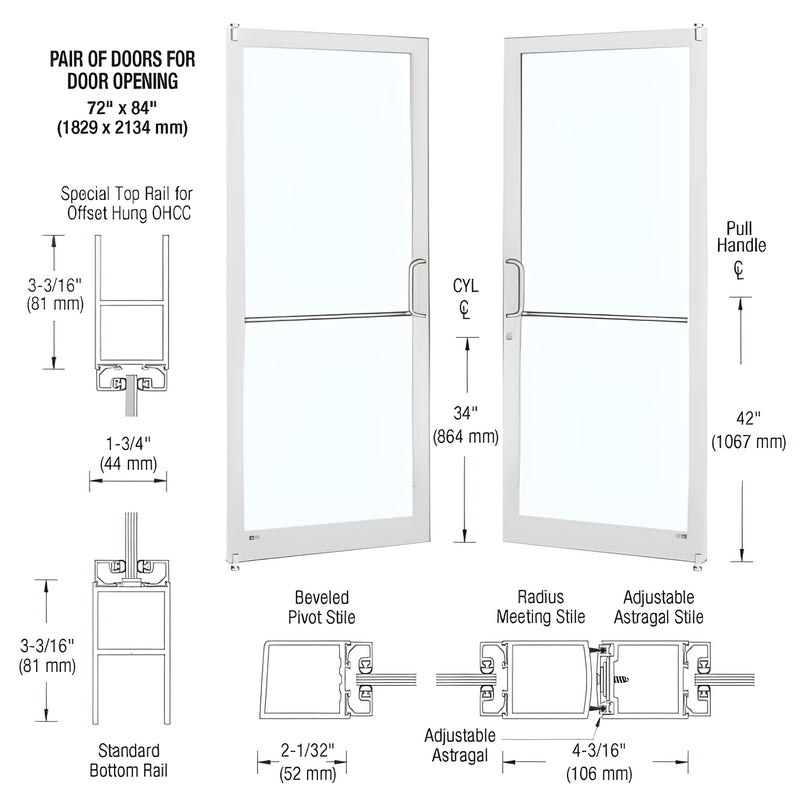

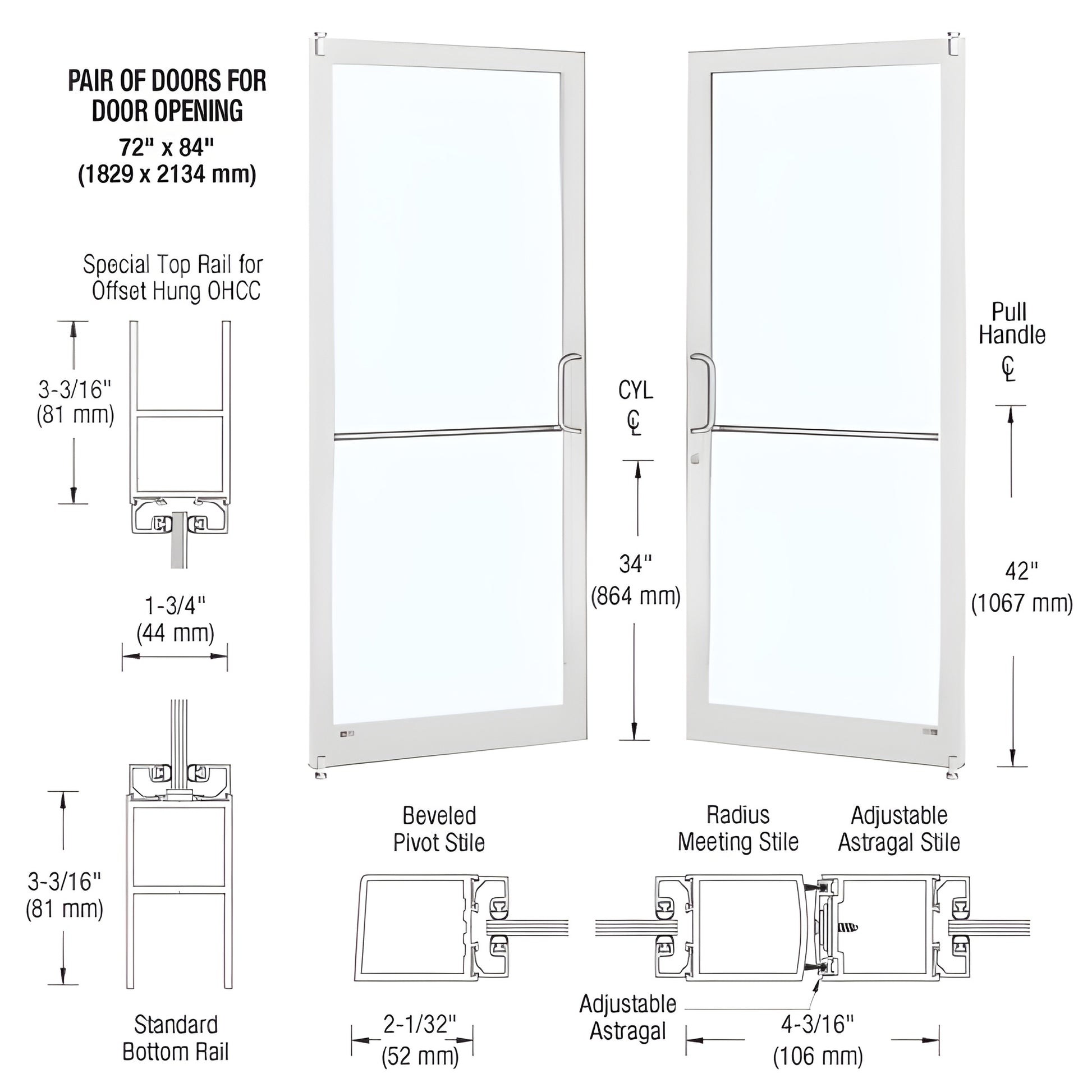

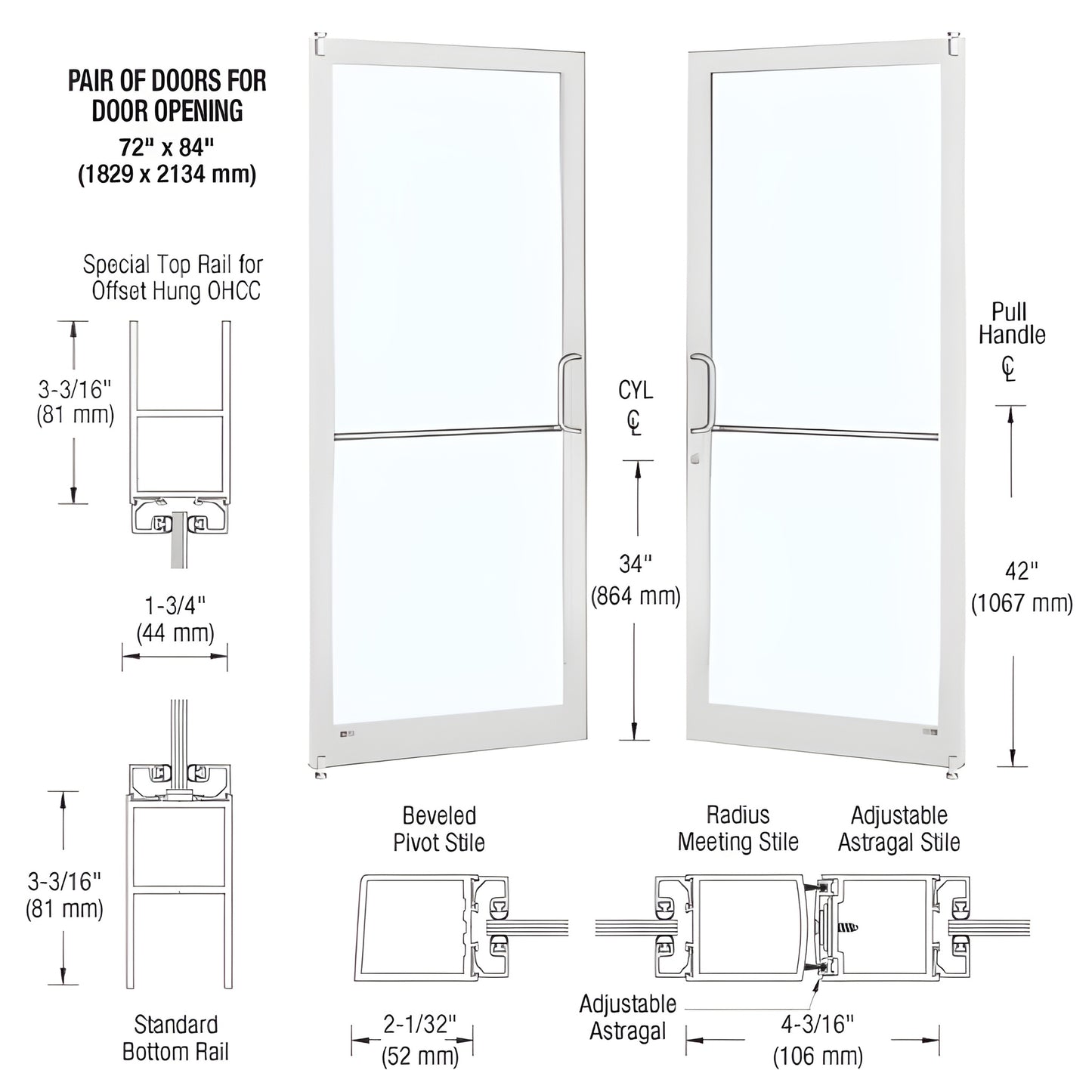

This CRL Custom Narrow Stile Entrance Door (SKU: DC22152) features 2" (51 mm) stiles, 3-3/16" (81 mm) top rail, and 3-3/16" (81 mm) bottom rail. Standard construction includes stiles for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass. Designed for custom fabrication to accommodate a wide range of optional hardware—ideal for narrow stile storefronts, commercial entryways, and architectural glazing projects.
Most shipping weights are approximate and have not been verified. If an exact weight is required to determine shipping costs, please request this prior to ordering by contacting CRL Customer Service. Product images are representative; colors may vary by monitor.
For pricing, lead times, or to request exact shipping weight for SKU DC22152, contact CRL Customer Service or request a quote today.
BIM Objects - rvt
