CRL-U.S. Aluminum S400 Clear Anodized Pair Butt-Hinged Entry Doors
CRL-U.S. Aluminum S400 Clear Anodized Pair Butt-Hinged Entry Doors
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit accepted (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

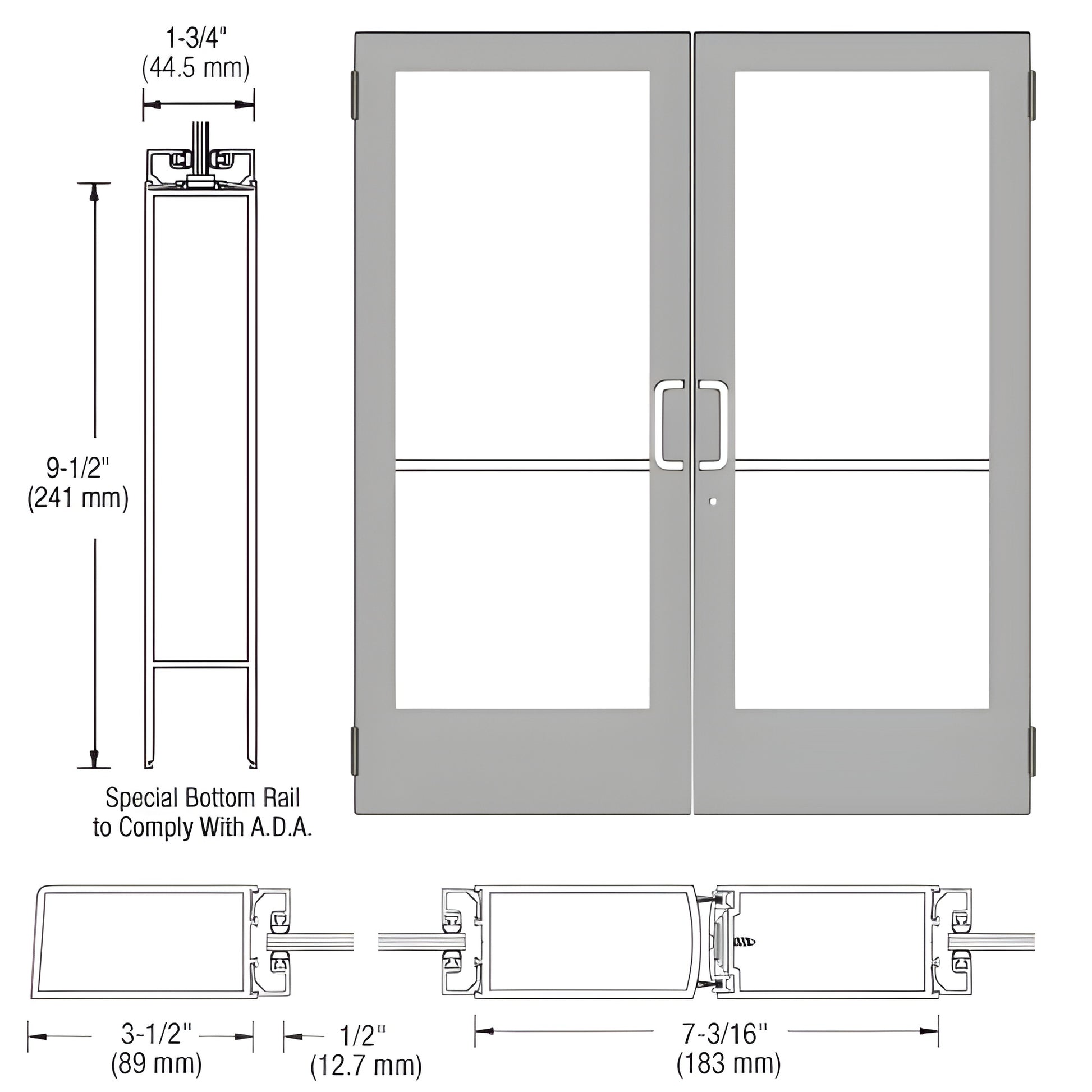

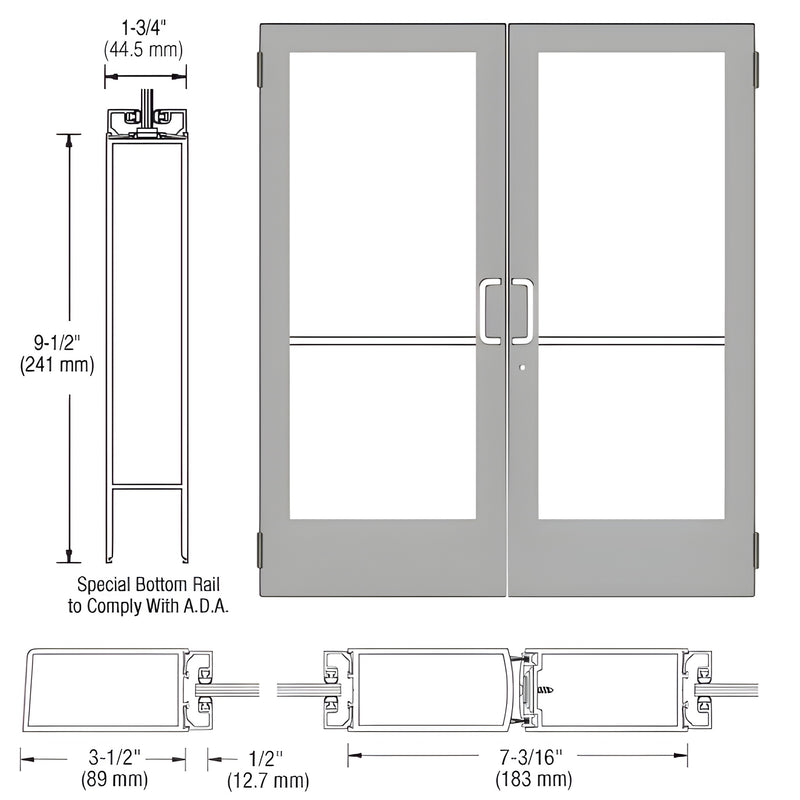

This Custom Medium Stile Entrance Door (SKU: DE42511) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed for storefront and commercial applications, it includes stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom hardware integration, this medium stile door is ideal for ADA-compliant entrance solutions, tempered glass storefront doors, and specialty hardware installations.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Specifications
BIM Objects - rvt
