CRL-U.S. Aluminum S400 KYNAR Offset Pivot Entry Door (Panic-Ready)
CRL-U.S. Aluminum S400 KYNAR Offset Pivot Entry Door (Panic-Ready)
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ41171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- 6-1/2" (165 mm) bottom rail for added durability
- Custom fabricated to accept a wide range of optional hardware applications, including offset pivot hardware
- Selected panic hardware and cylinder are ordered and added separately
- Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots) shipped boxed separately for protection

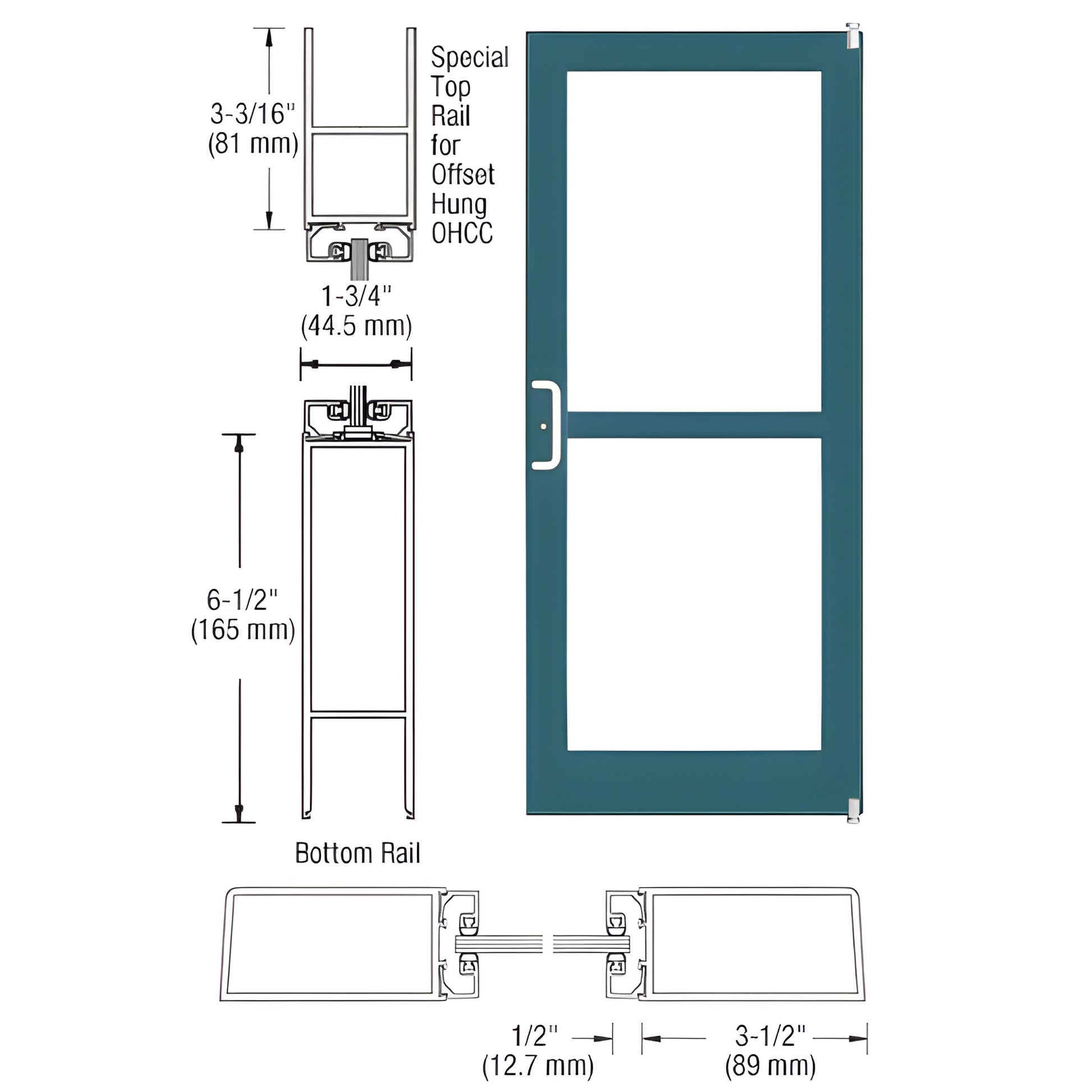

This Custom Medium Stile Entrance Door (SKU: DZ41171) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. The door comes with glass stops for 1/4" (6 mm) tempered glass (by others) and is configured for custom fabrication to support optional panic hardware, cylinders, and other commercial entrance components. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order the DZ41171 custom medium stile entrance door or contact us for a quote and hardware options.
Specifications
BIM Objects - rvt
