CRL
CRL-U.S. Aluminum S400 Offset Pivot Entry Door - KYNAR, Panic Bar
CRL-U.S. Aluminum S400 Offset Pivot Entry Door - KYNAR, Panic Bar
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ41271
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

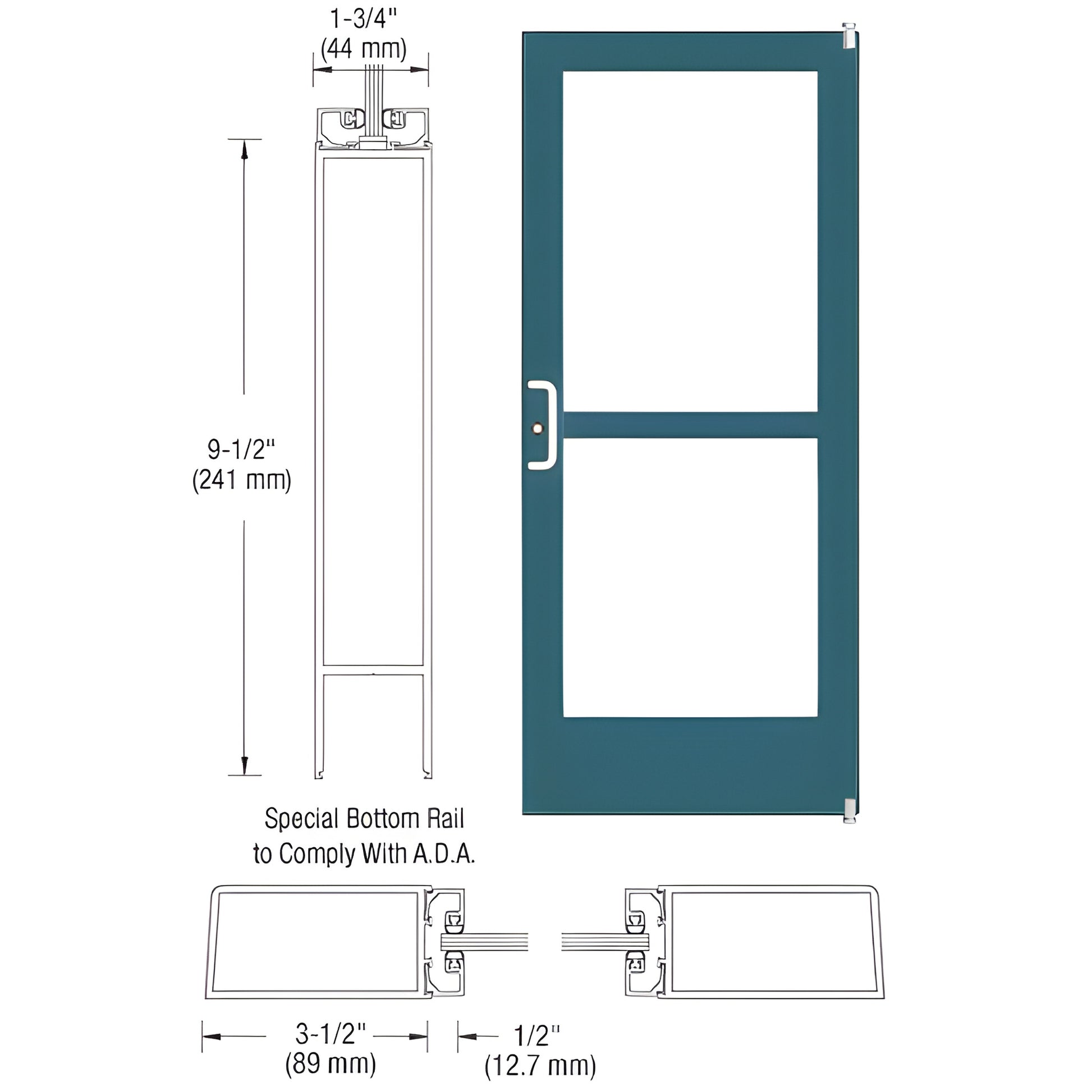

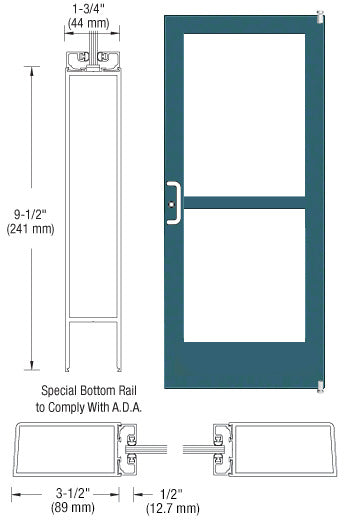

This CRL Custom Medium Stile Entrance Door (SKU: CZ41271) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Built for commercial entryways, the door is ready for offset pivot hardware and shipped with glass stops for 1/4" (6 mm) tempered glass. Custom fabrication options accommodate a wide range of optional hardware applications and commercial door configurations.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
Order or request a quote for SKU CZ41271 — contact CRL Customer Service today.
Specifications
BIM Objects - rvt
