CRL-U.S. Aluminum Custom Sized Clear Anodized Series 450 Tubular Offset Pivot Transom Frame Complete (1FT)

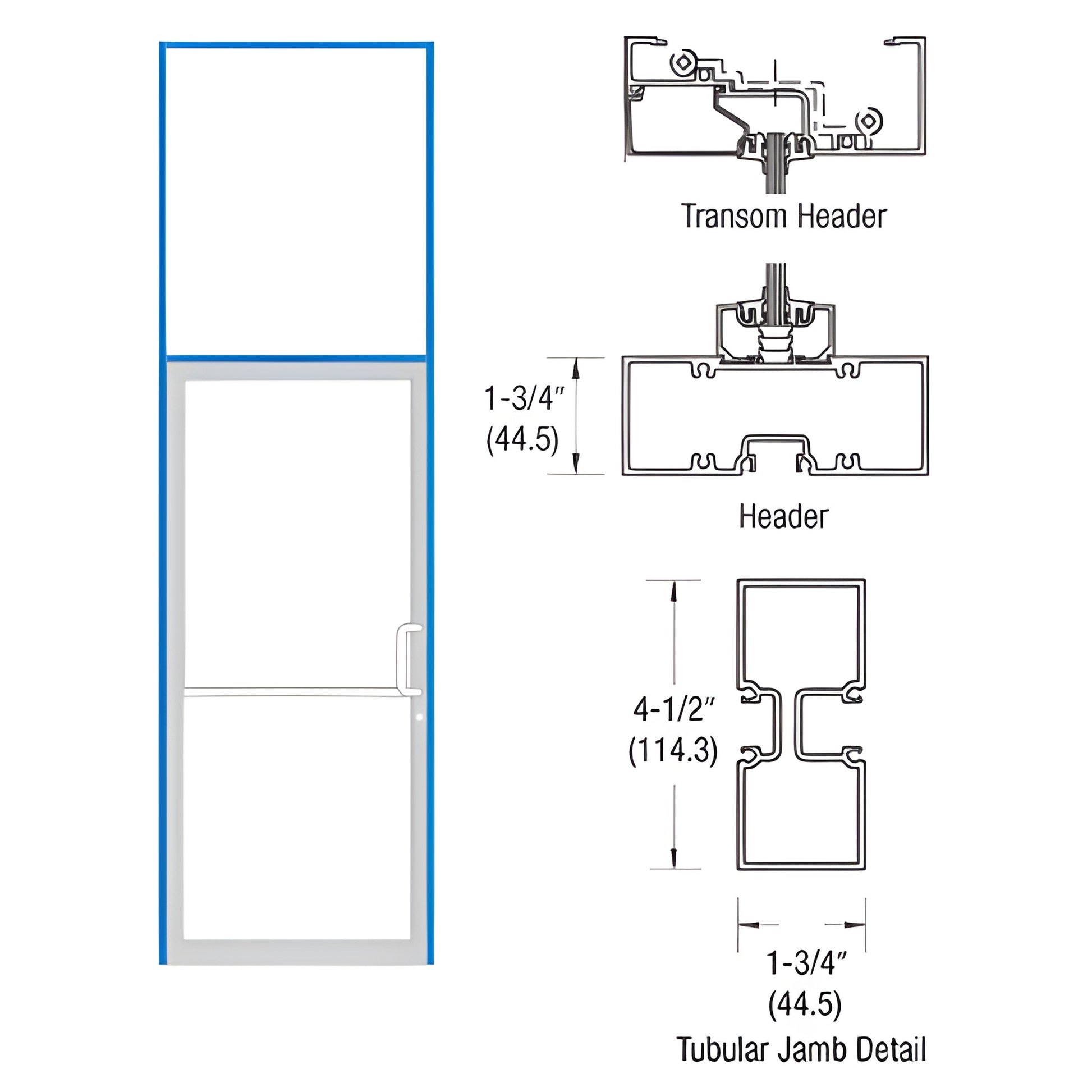

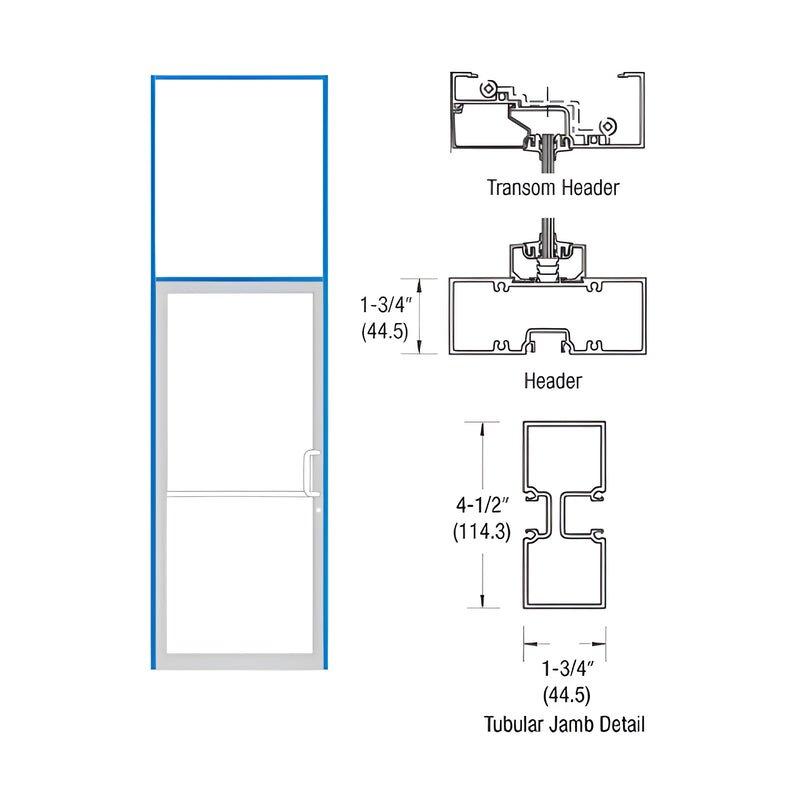

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Offset Pivot Transom Frame with Tubular Jambs
• With Standard Hookbolts
• Custom Sized
• Aluminum Threshold is Included

Complete Frame

is built to accommodate customer's custom size Offset Pivot Door for a Surface Mount Closer, constructed using JS455 Tubular Jambs with JS467 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening. Frame widths less than 39-1/2" (1.0 m) may not pass A.D.A. Inspection.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
