CRL-U.S. Aluminum S450 39-1/2x85-3/4 Bronze/Black Up-and-Over Frame

CRL-U.S. Aluminum S450 39-1/2x85-3/4 Bronze/Black Up-and-Over Frame

$585.23 CAD
$585.23 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FZ41222R36
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

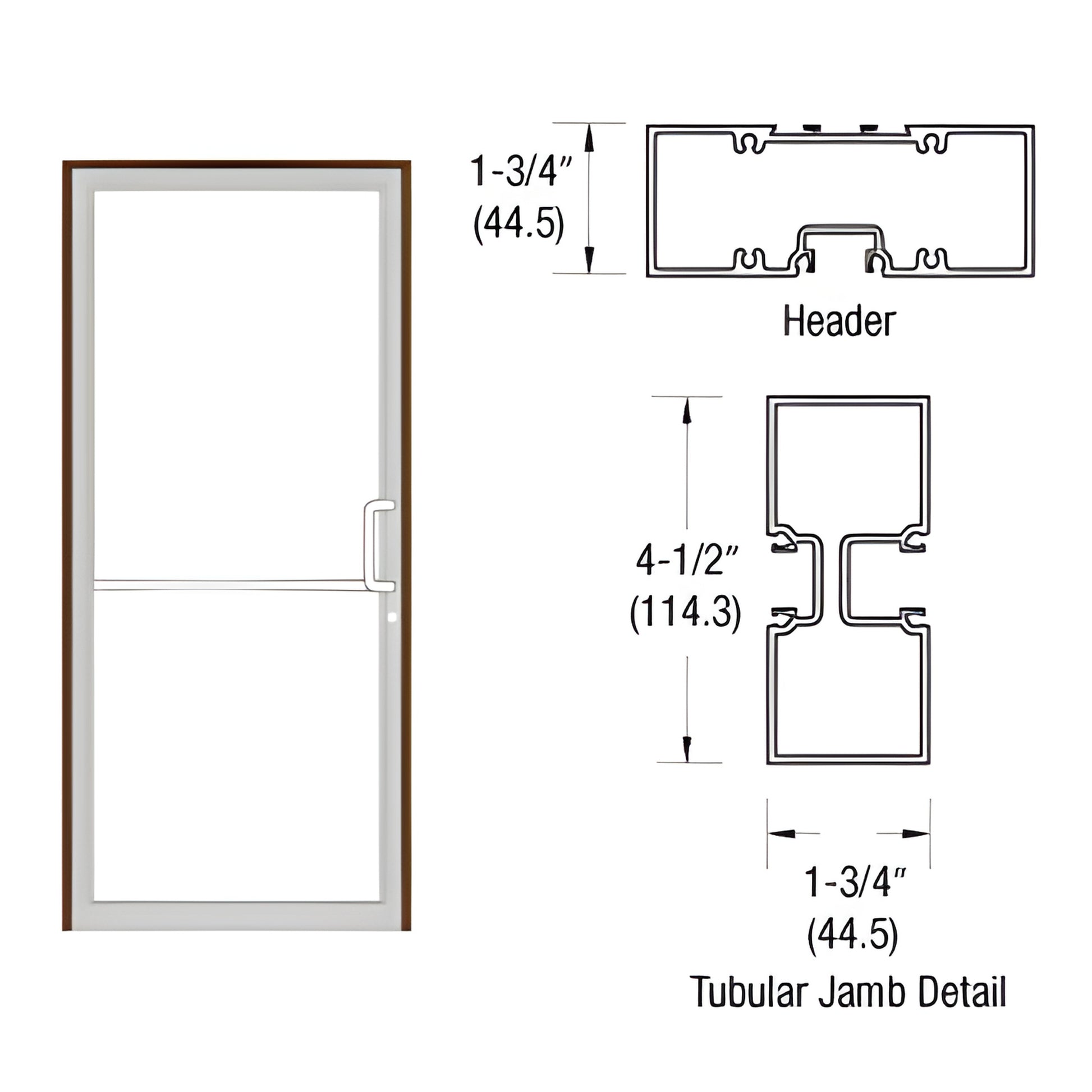

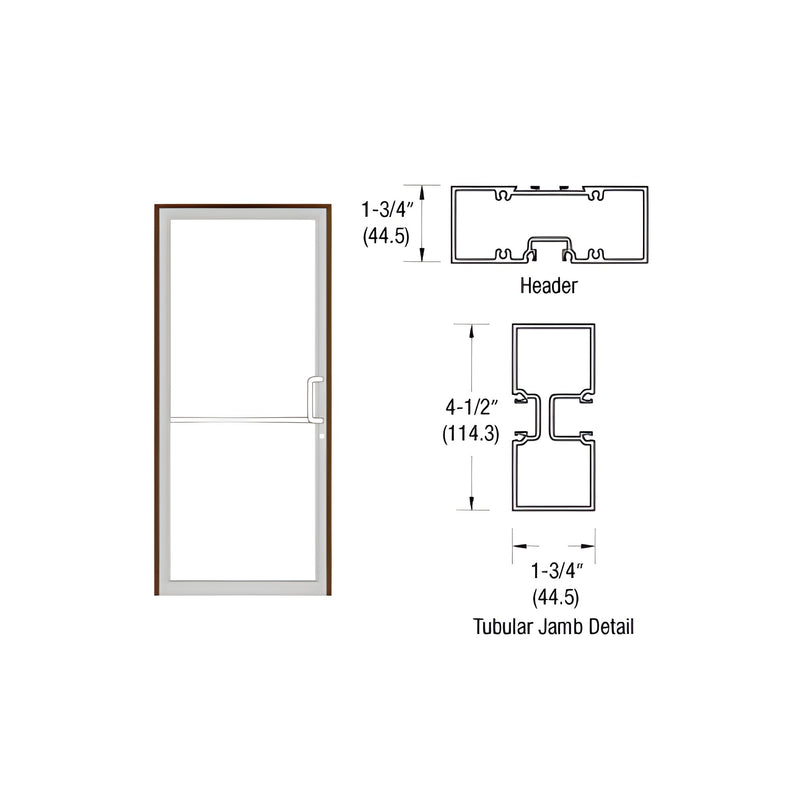

  • 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Offset Pivot Up-and-Over Frame with Tubular Jambs
  • Door opening: 36" x 84" (0.9 x 2.1 m) — fits standard 36x84 panic door installations
  • Aluminum threshold included
  • Base frame (outside dimensions): 39-1/2" x 85-3/4" (1.0 x 2.2 m)

Complete Frame built to accommodate a base 36" x 84" Offset Pivot Concealed Vertical Rod Panic Door with provisions for a Surface Mount Closer. Constructed with JS455 tubular jambs and JS467 header. Includes all associated extrusions, weatherstrip, standard hardware, and hardware preparations for panic door installation.

All assembly fasteners, standard hardware, and hardware fabrication are included; customer supplies fasteners to attach frame to opening. No modifications are offered on Standard Frames.

SKU: FZ41222R36 — Offset pivot frame for panic door, aluminum threshold included, tubular jambs, surface-mount closer ready.

Most shipping weights are approximate and have not been verified. If exact shipping weight or costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.


Ready to order or need help selecting the correct offset pivot panic door frame? Contact CRL Customer Service or add SKU FZ41222R36 to your cart now.
