Product Details
- 39-1/2" x 85-3/4" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
- 36" x 84" (.9 x 2.1 m) Door Opening
- Aluminum Threshold is Included

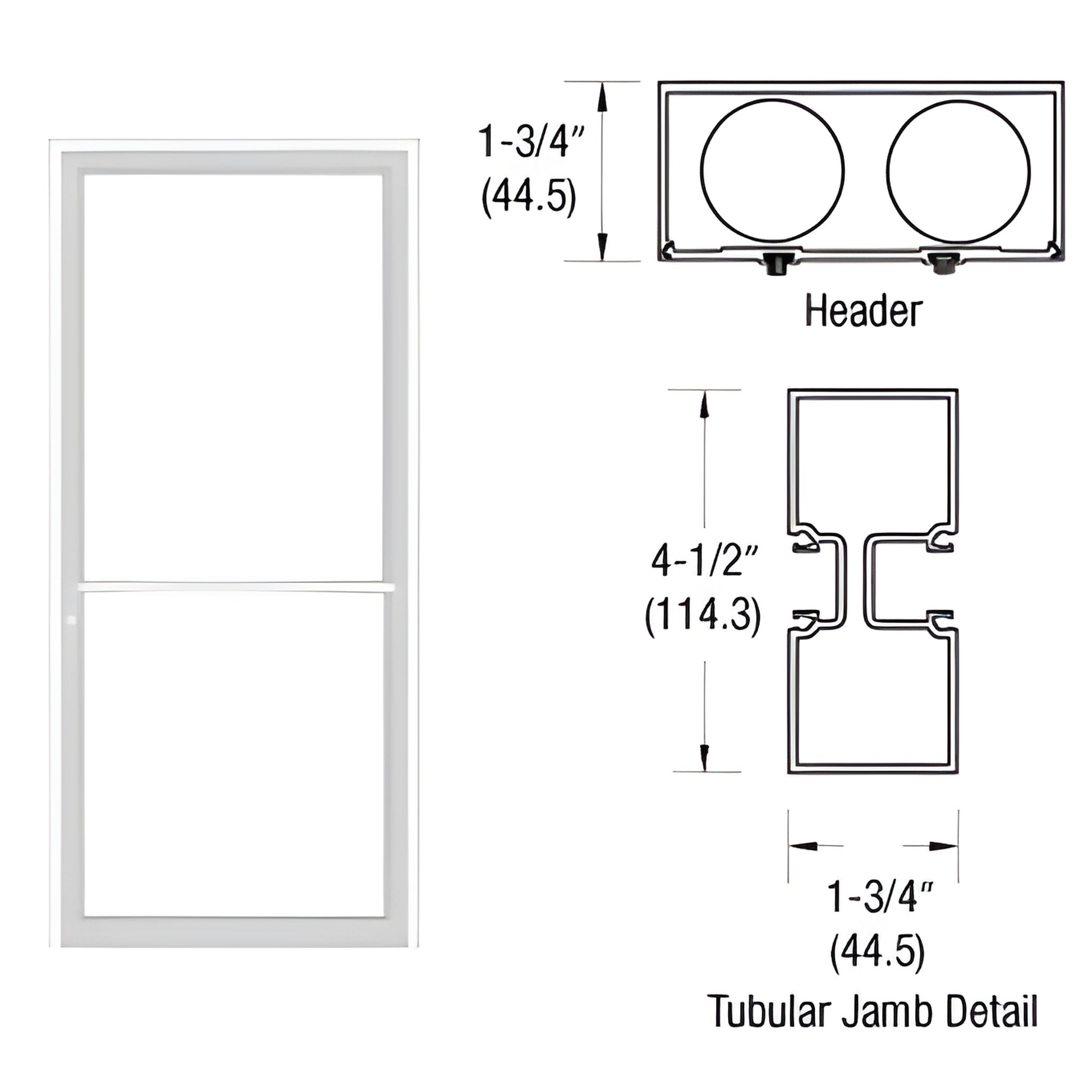

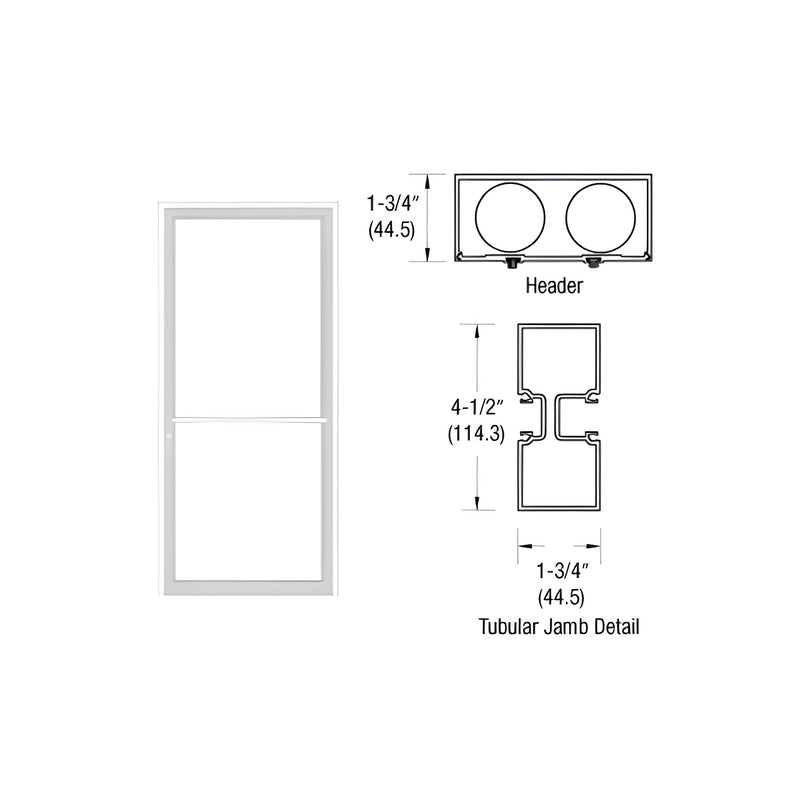

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Center Hung Up and Over Frame with Tubular Jambs
Complete Frame is built to accommodate a base 36" x 84" Center Hung Concealed Vertical Rod Panic Door for a Overhead Concealed Closer, constructed using JS456 Tubular Jambs with JC457/P427 Header. All associated extrusions, weatherstrip, standard hardware, and hardware preparations are included.
All assembly fasteners, standard hardware, and hardware fabrication is included. Customer supplies fasteners to attach frame to opening. No modifications are offered on Standard Frames.
