CRL-U.S. Aluminum Custom KYNAR® Paint Custom Size Series 451 Tubular Gear Hinge Transom Frame Complete (1FT)

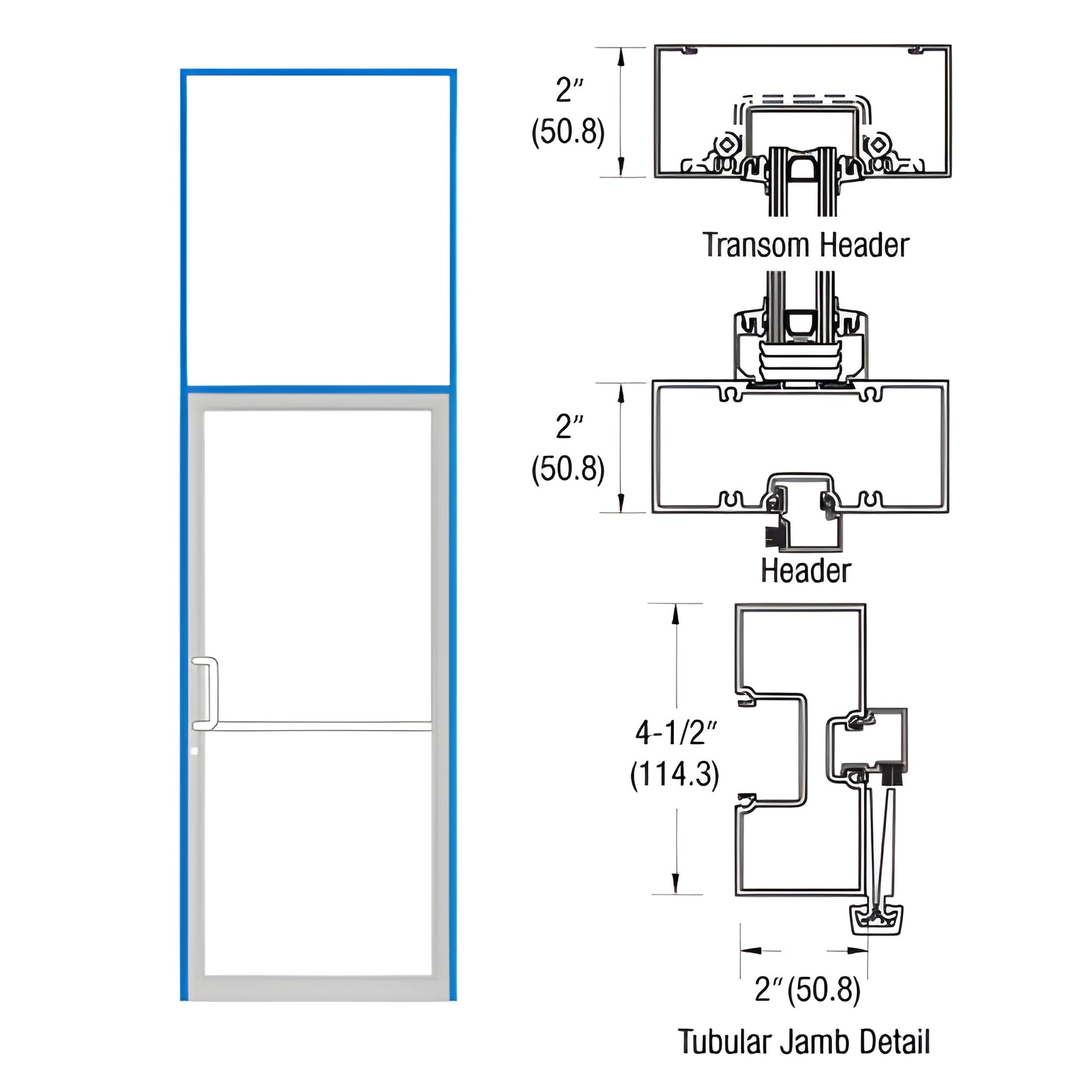

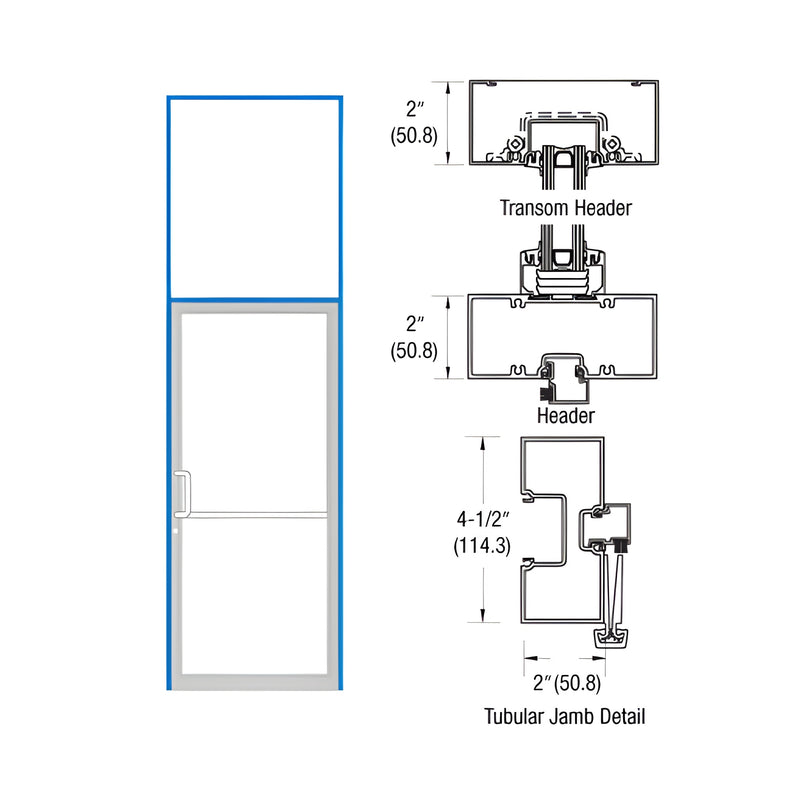

• 2" x 4-1/2" (50.8 x 114.3 mm) Gear Hinge Transom Frame with Tubular Jambs
• With Standard Hookbolts
• Custom Size
• Aluminum Threshold is Included

Complete Frame

is built to accommodate a base 36" x 84" Gear Hinge Door for a Surface Mount Closer, constructed using 1S456 Tubular Jambs with 1S467 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening. Frame widths less than 40" (1.0 m) may not pass A.D.A. Inspection.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
