CRL-U.S. Aluminum Drill Jig for Screw Spline Assembly

CRL-U.S. Aluminum Drill Jig for Screw Spline Assembly
CRL-U.S. Aluminum Drill Jig for Screw Spline Assembly

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUDJ050
Sold as1 Each
Finish/Color:Mill

Description

Product Details

  • For 400 and 450 Storefronts
  • For Use with 1/4" and 3/8" (6 and 10 mm) Glazing
  • Drill Guide for Vertical Mullions
  • Drill Guide for Screw Spline Assembly Screws

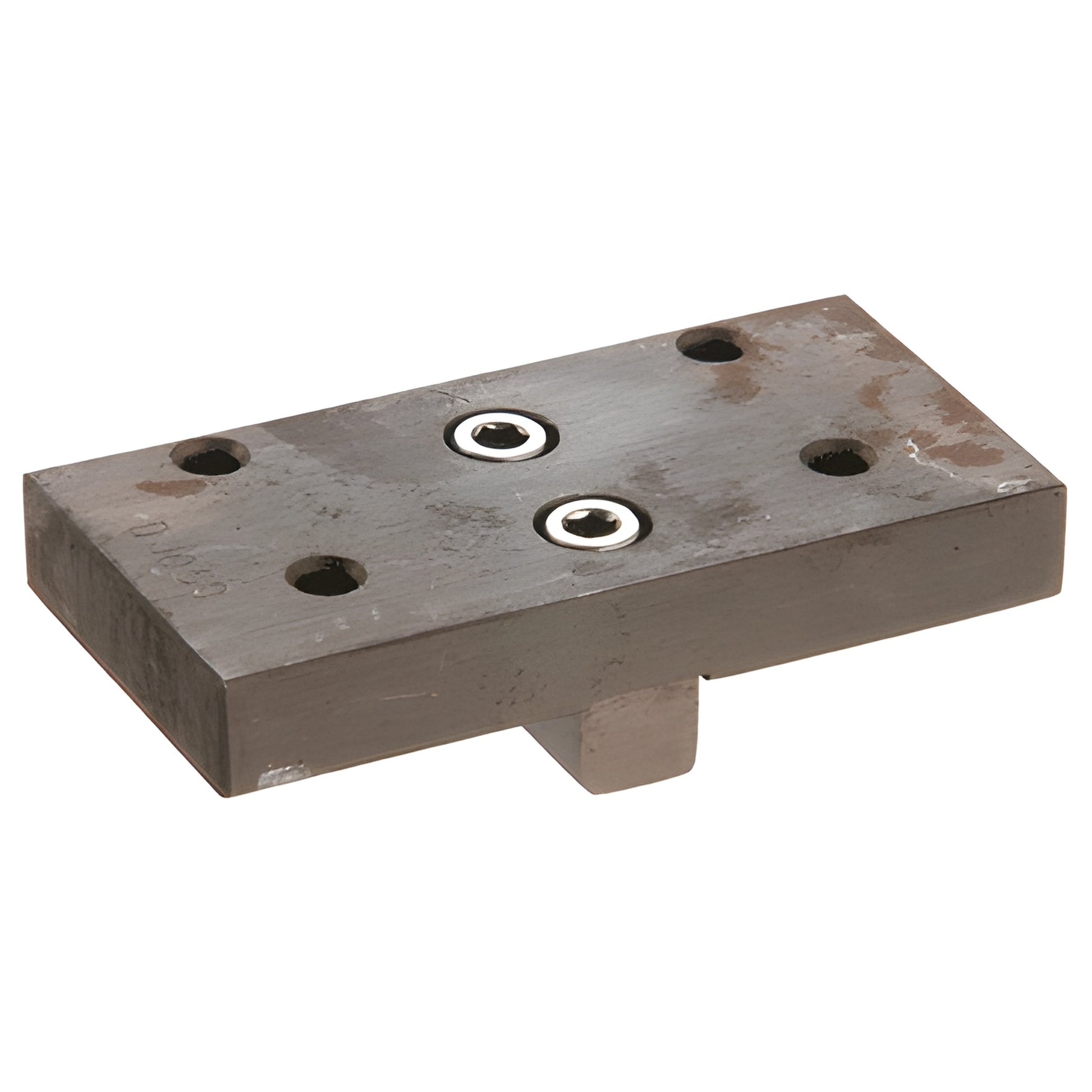

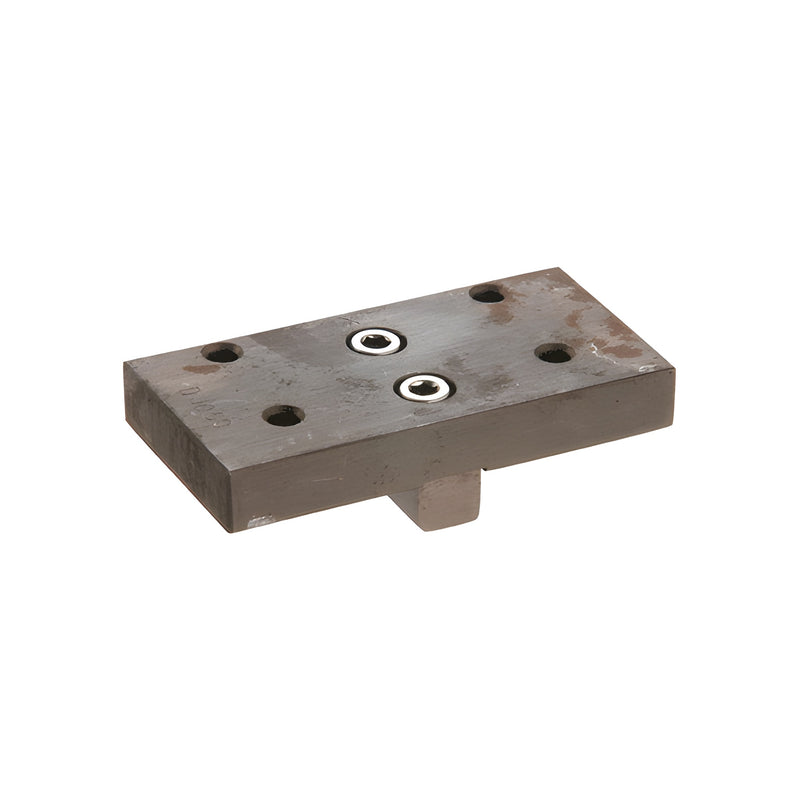

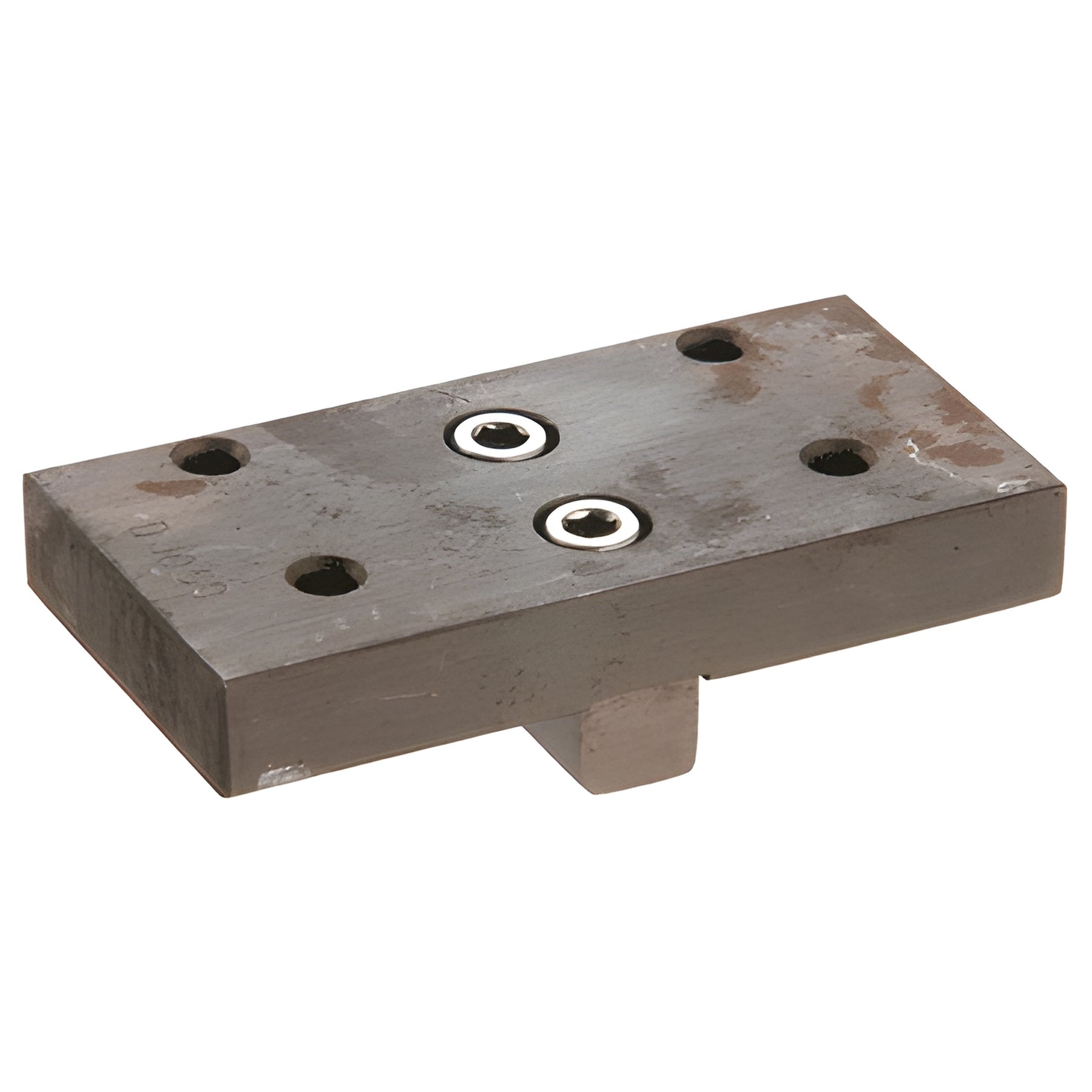

CRL Drill Jig is used in preparation for intermediate horizontal to vertical joinery.
