CRL-U.S. Aluminum Ser. 250 Narrow-Stile Geared Doors - Panic Ready
Item# DZ22871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail available for ADA and Title 24 applications
- Custom fabricated to accept a wide range of optional hardware, including panic hardware and cylinders (ordered separately)
- Custom made to your size specifications
- Includes standard panic pull and hanging hardware (protruding hardware boxed separately to prevent transit damage)

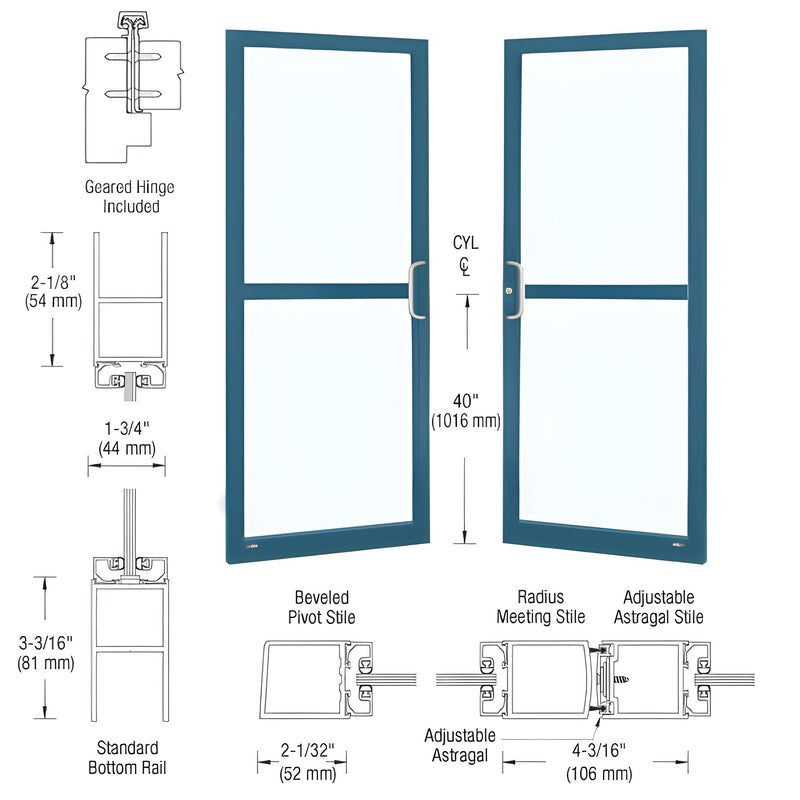

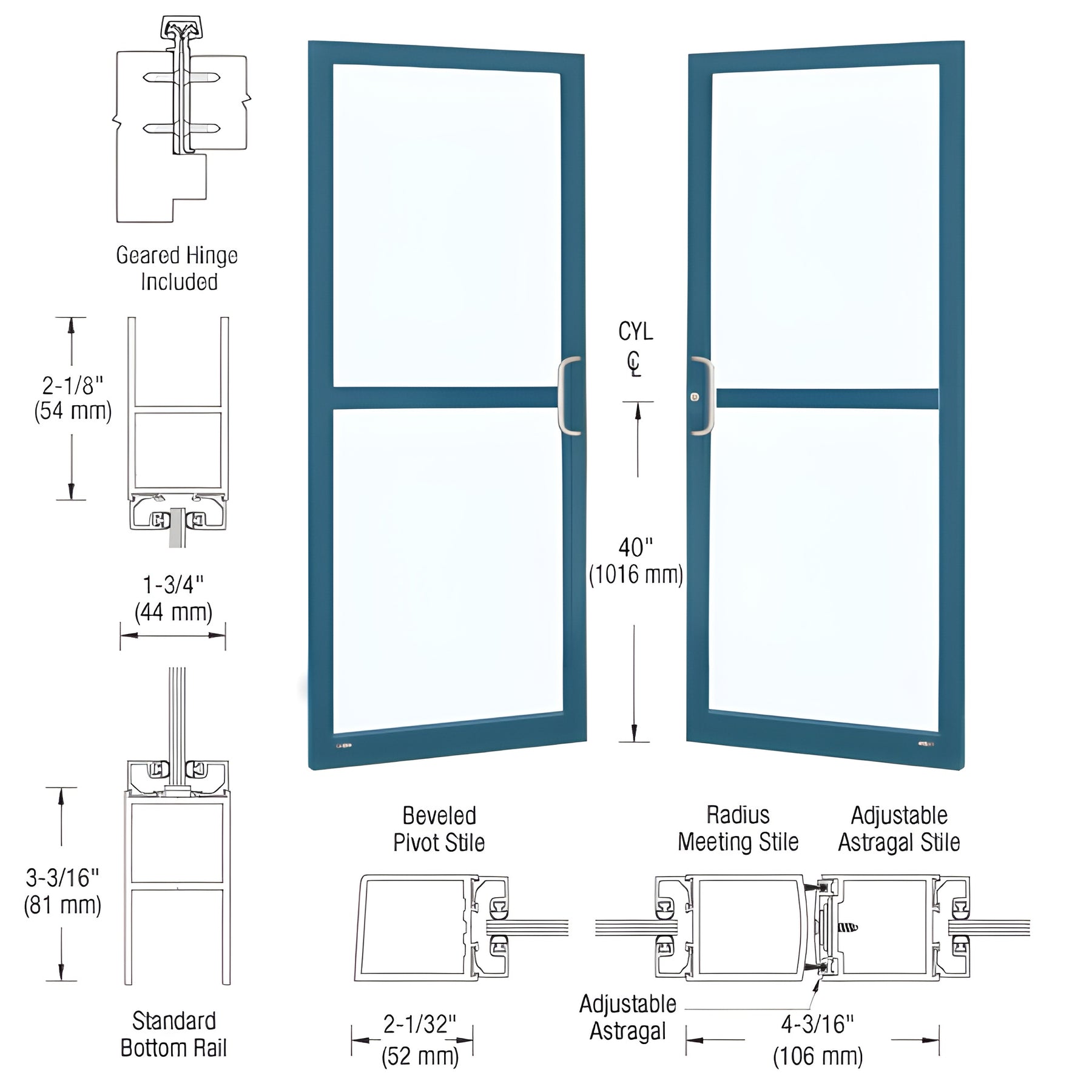

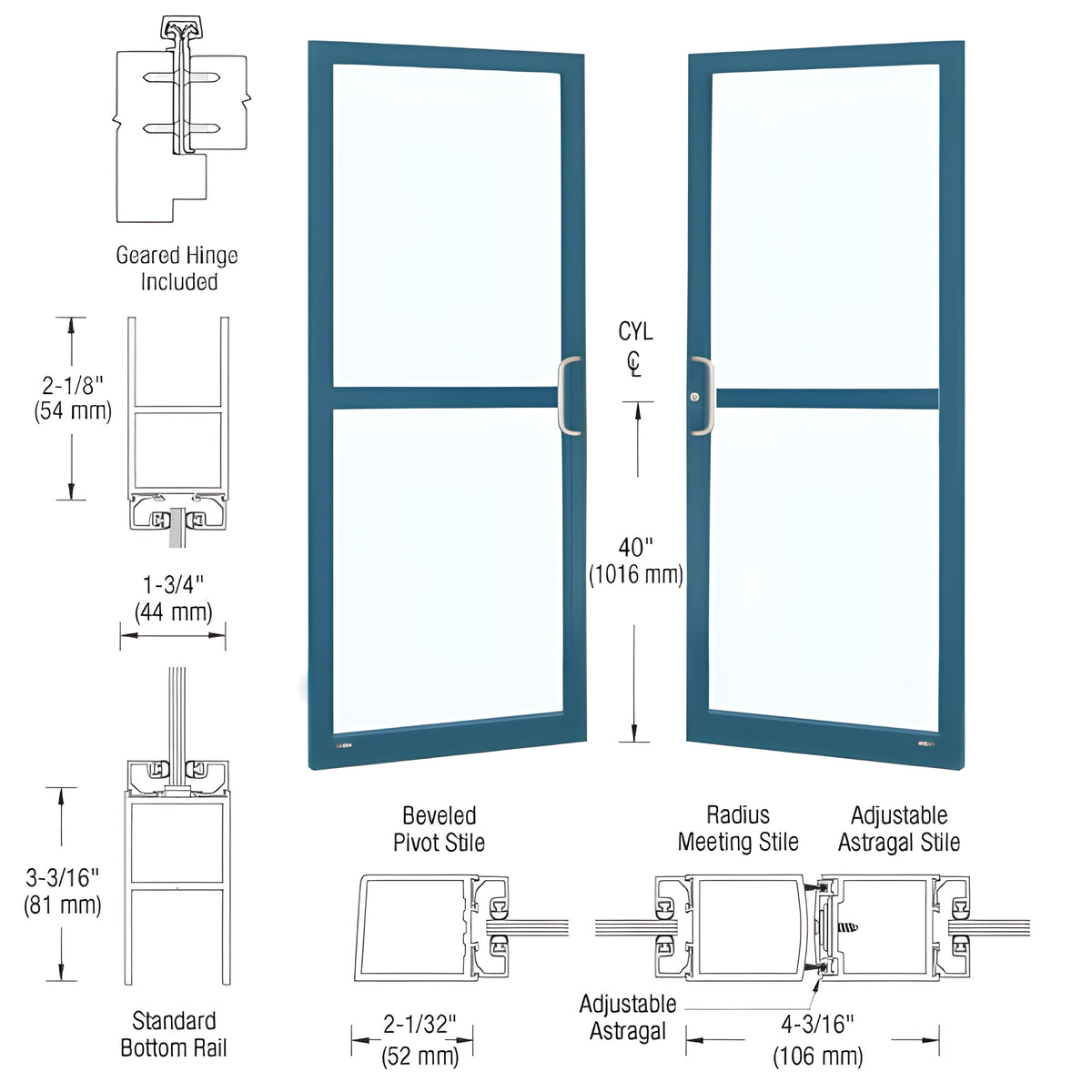

This Custom Narrow Stile Entrance Door (SKU: DZ22871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard glass stops accommodate 1/4" (6 mm) tempered glass (by others). Built for commercial storefronts, this narrow-stile door is ready for custom fabrication to meet optional hardware and ADA-compliant storefront door requirements. Note: door widths under 36" (914 mm) may not meet ADA inspection. Panic hardware and one cylinder must be ordered separately.
Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, contact CRL Customer Service before placing your order. Product images are representative; colors may vary by monitor settings.
Order your custom narrow stile entrance door (DZ22871) or contact us for a quote and ADA guidance.
BIM Objects - rvt
