CRL-U.S. Aluminum Ser. 400 Clear Anodized Offset Pivot Entrance Door
Item# DE41111
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass not included)

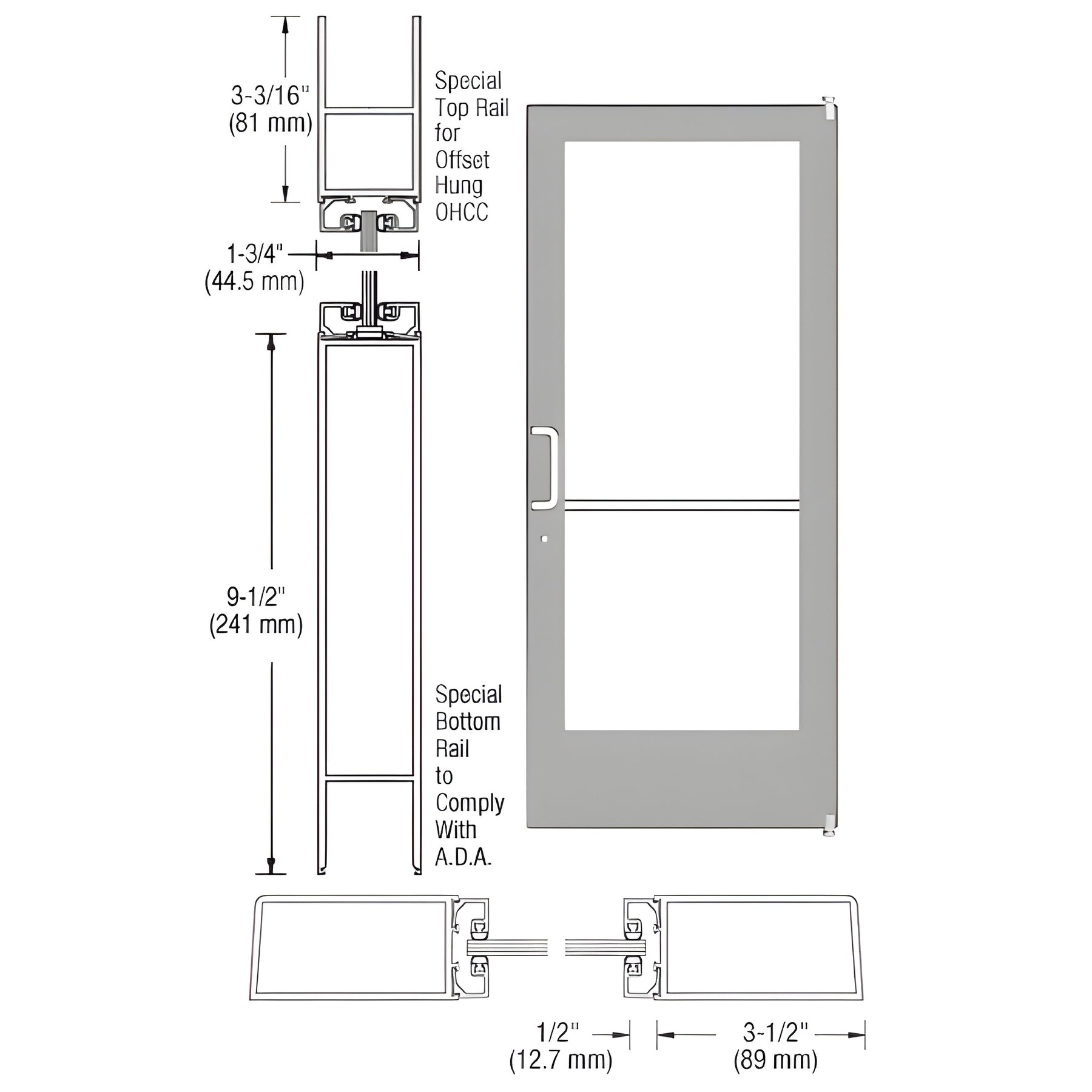

This Custom Medium Stile Entrance Door (SKU: DE41111) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Built for commercial entrances, it ships ready for offset pivot hardware and includes glass stops for 1/4" tempered glass (by others). Designed for custom fabrication to support a wide range of optional hardware and commercial door applications.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, contact CRL Customer Service before submitting your order. Product images are representative; actual colors may vary by monitor settings.
Order SKU DE41111 or contact us to configure hardware and glass options for your project.
