CRL-U.S. Aluminum Series 250 36x84 Narrow Stile Door, Black Anodized
Item# DE21422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- Custom fabricated to accept optional hardware applications
- CRL Storefront Doors include standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.

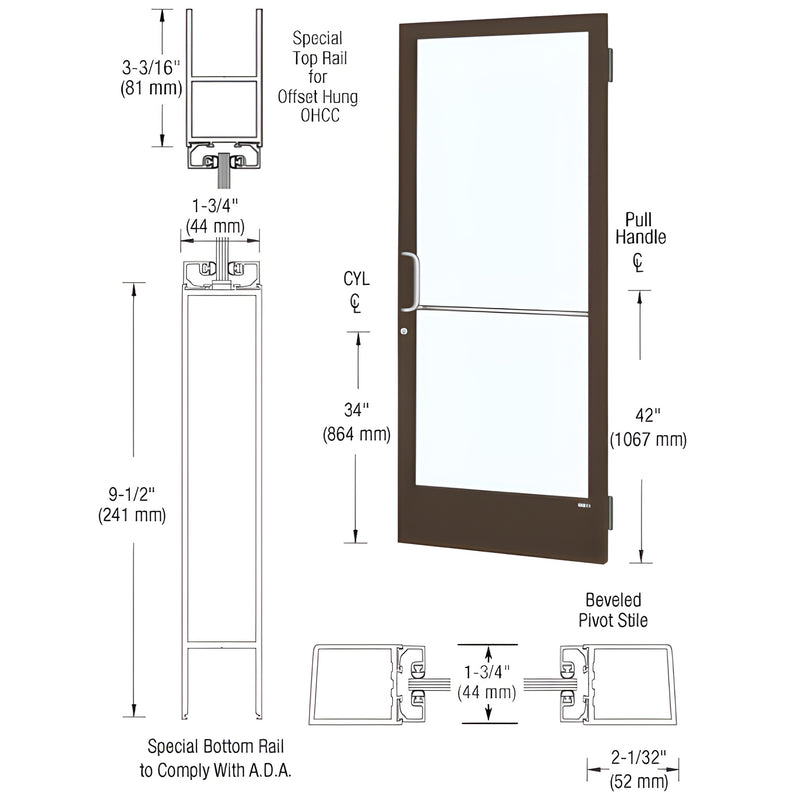

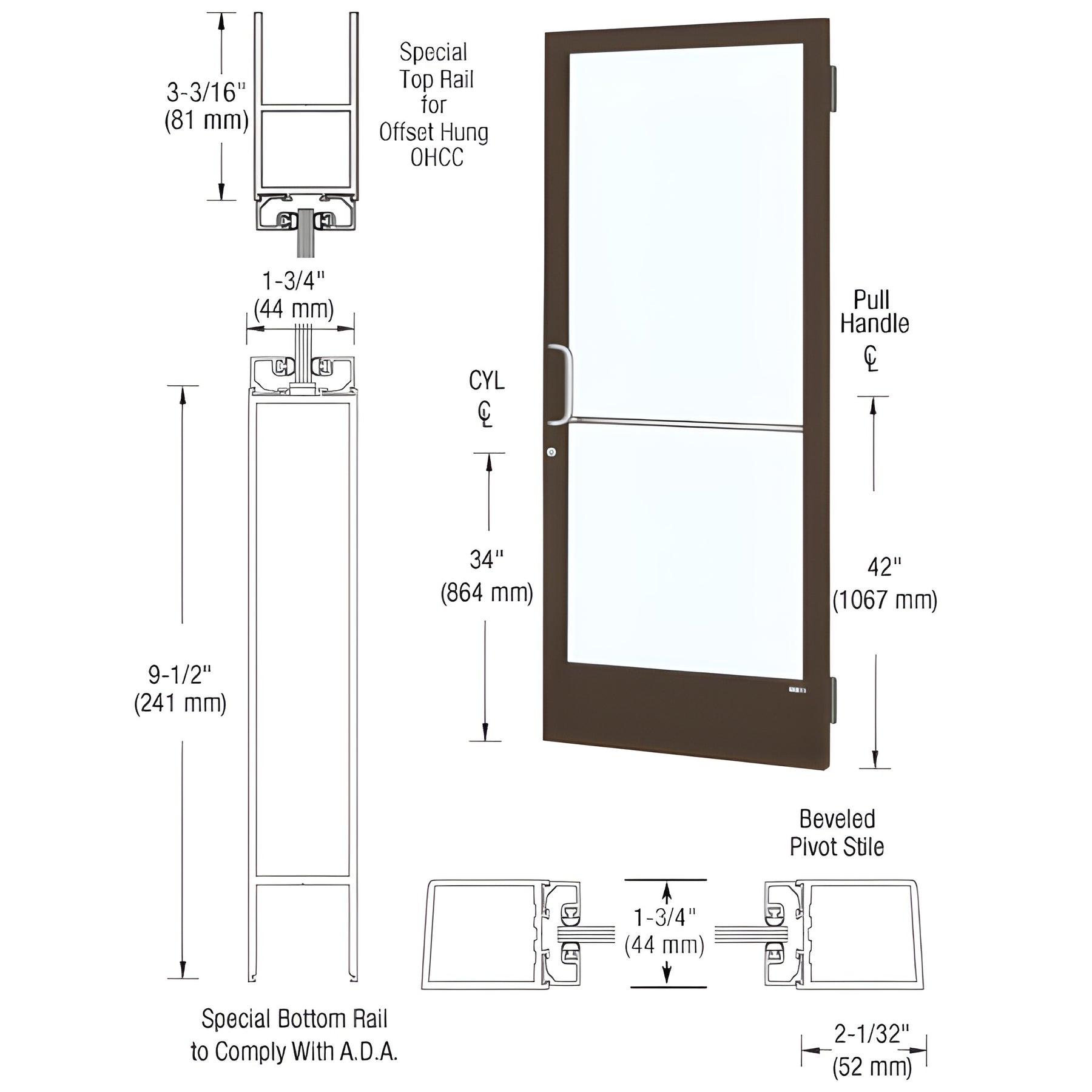

This Custom Narrow Stile Entrance Door (SKU: DE21422) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard storefront-ready details include stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The design is ready for custom fabrication for a wide range of optional hardware—ideal for tempered glass storefront door projects and ADA-compliant commercial entrances.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not pass ADA inspection.
Most shipping weights are approximate and unverified. If you need exact weight to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Buy or request a quote for SKU DE21422 today to get a customizable, ADA-ready narrow stile storefront door.
BIM Objects - rvt
