CRL-U.S. Aluminum Series 250 72x84 Narrow Stile Butt Hinge Door Pair
CRL-U.S. Aluminum Series 250 72x84 Narrow Stile Butt Hinge Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC22422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)

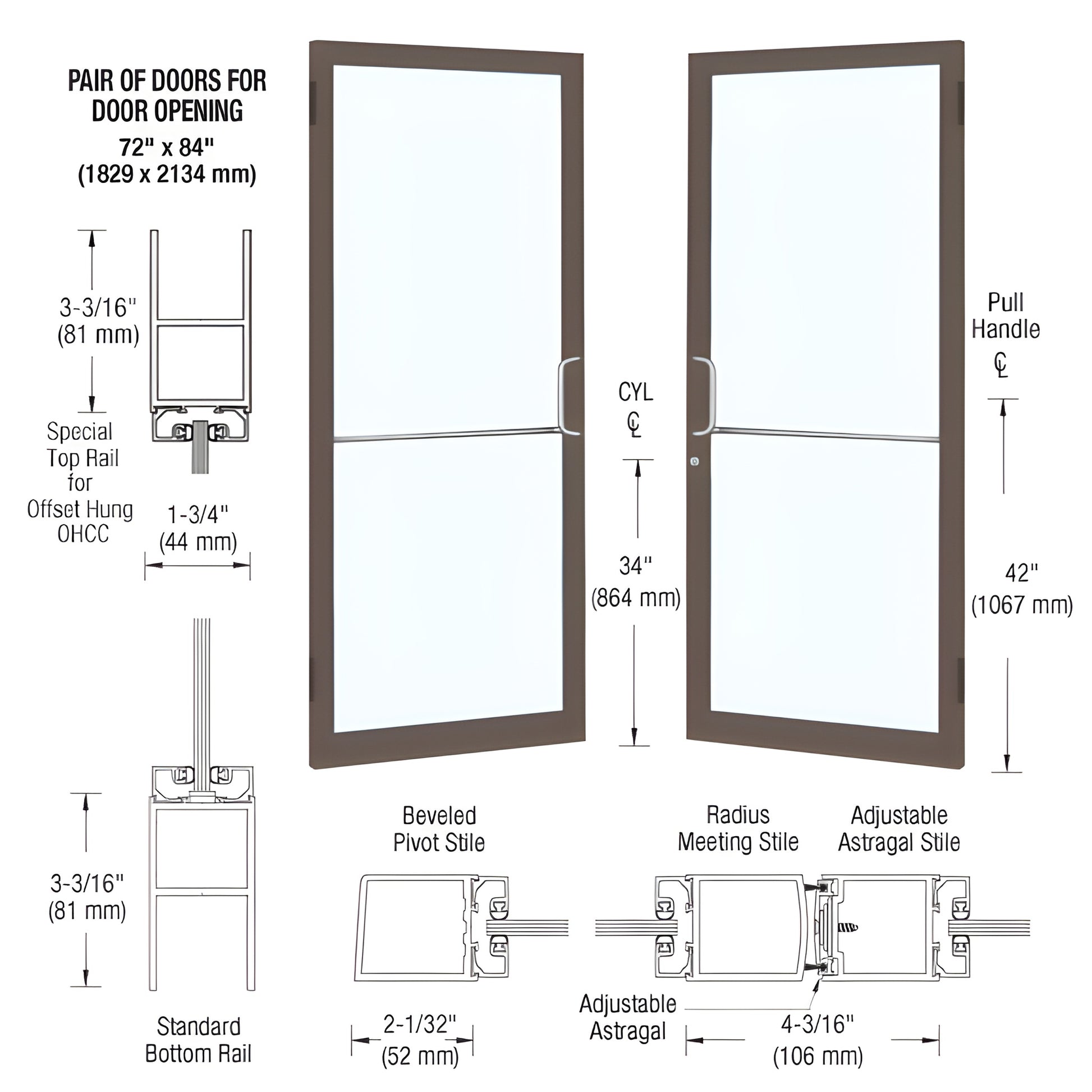

This CRL Custom Narrow Stile Entrance Door (SKU: DC22422) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Designed for storefront and commercial entry use, this narrow-stile aluminum entrance door is ready for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). It is custom-configurable for a wide range of optional hardware—ideal when you need an ADA-compliant, commercial tempered-glass entrance solution.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.
Specifications
BIM Objects - rvt
