CRL-U.S. Aluminum Series 250 Butt Hinge 72x84 Narrow Stile Door Pair
CRL-U.S. Aluminum Series 250 Butt Hinge 72x84 Narrow Stile Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

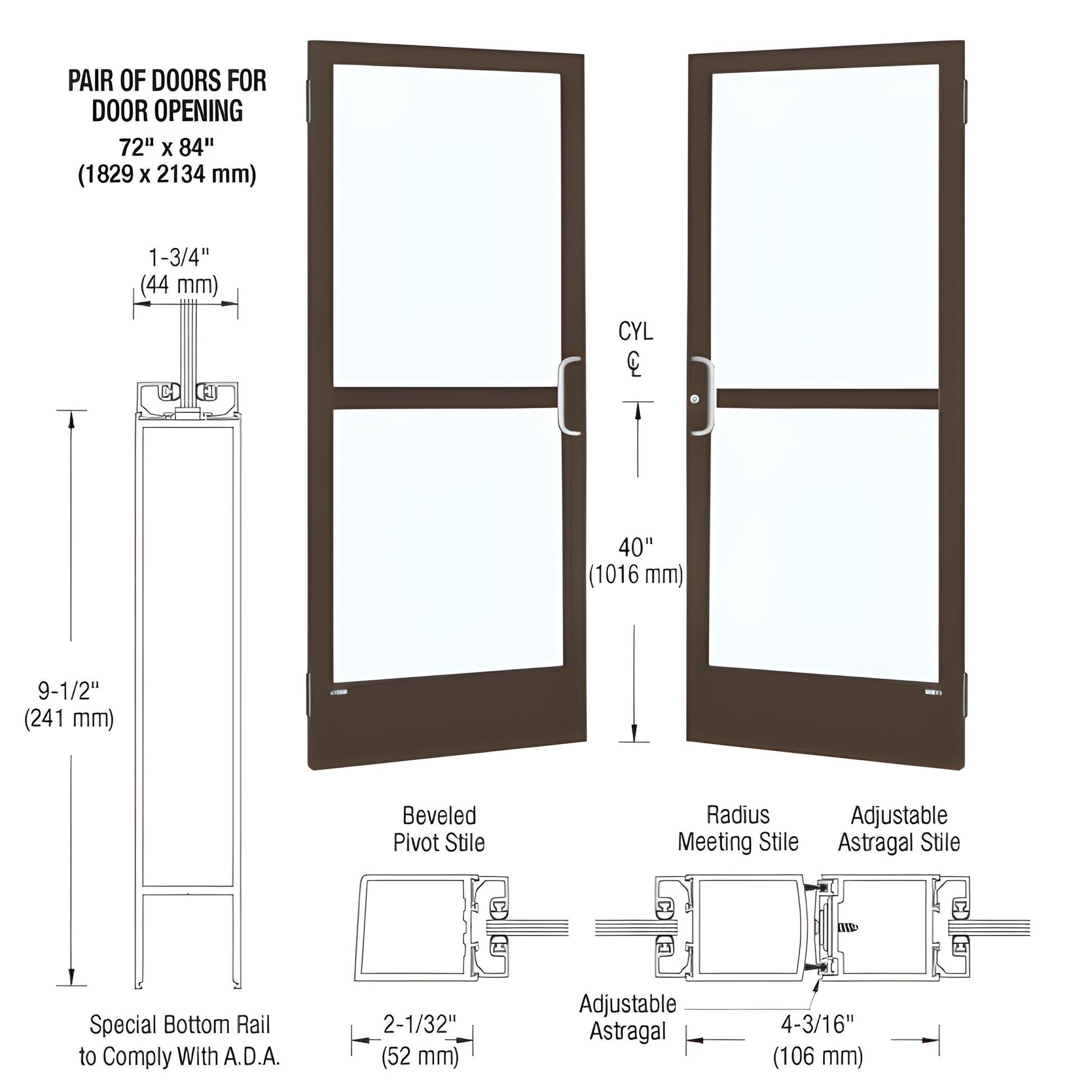

- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications
This CRL Custom Narrow Stile Entrance Door (SKU: CZ22522) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed for storefront and commercial glass applications, it ships with stiles prepared for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Ready for custom fabrication to accommodate concealed vertical rod panic hardware and other optional hardware configurations.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
Order the CRL Custom Narrow Stile Entrance Door (CZ22522) or contact us for custom hardware options.
Specifications
BIM Objects - rvt
