CRL-U.S. Aluminum Series 250 Clear Anodized Geared-Hinge Pair

• Custom made to your size specifications
• Includes standard panic pull and hanging hardware
• Panic hardware and one cylinder ordered and added separately
• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications
• Accommodates 1/4" (6 mm) tempered glass (by others) with the option for 1" (25 mm) tempered insulating unit; glass not included

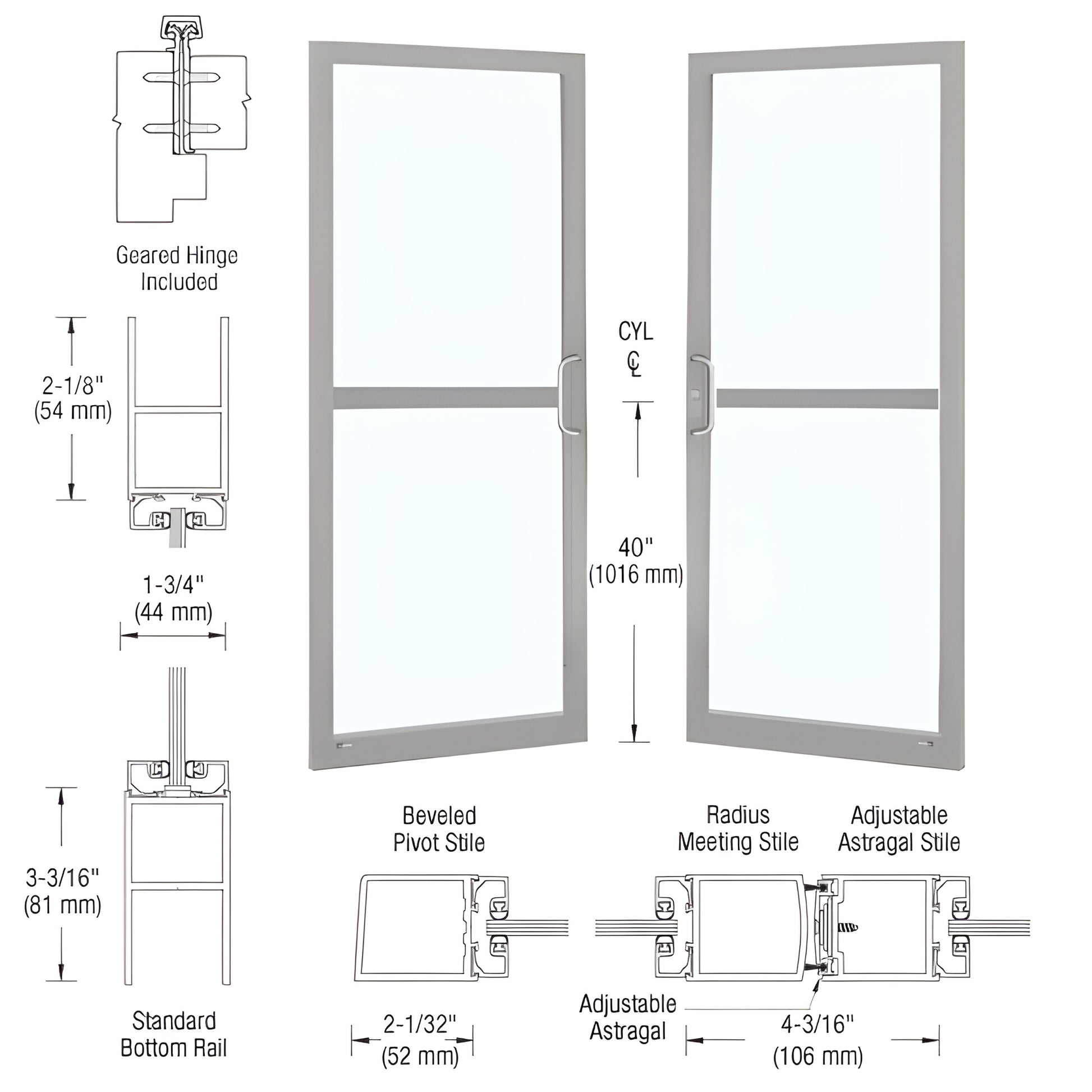

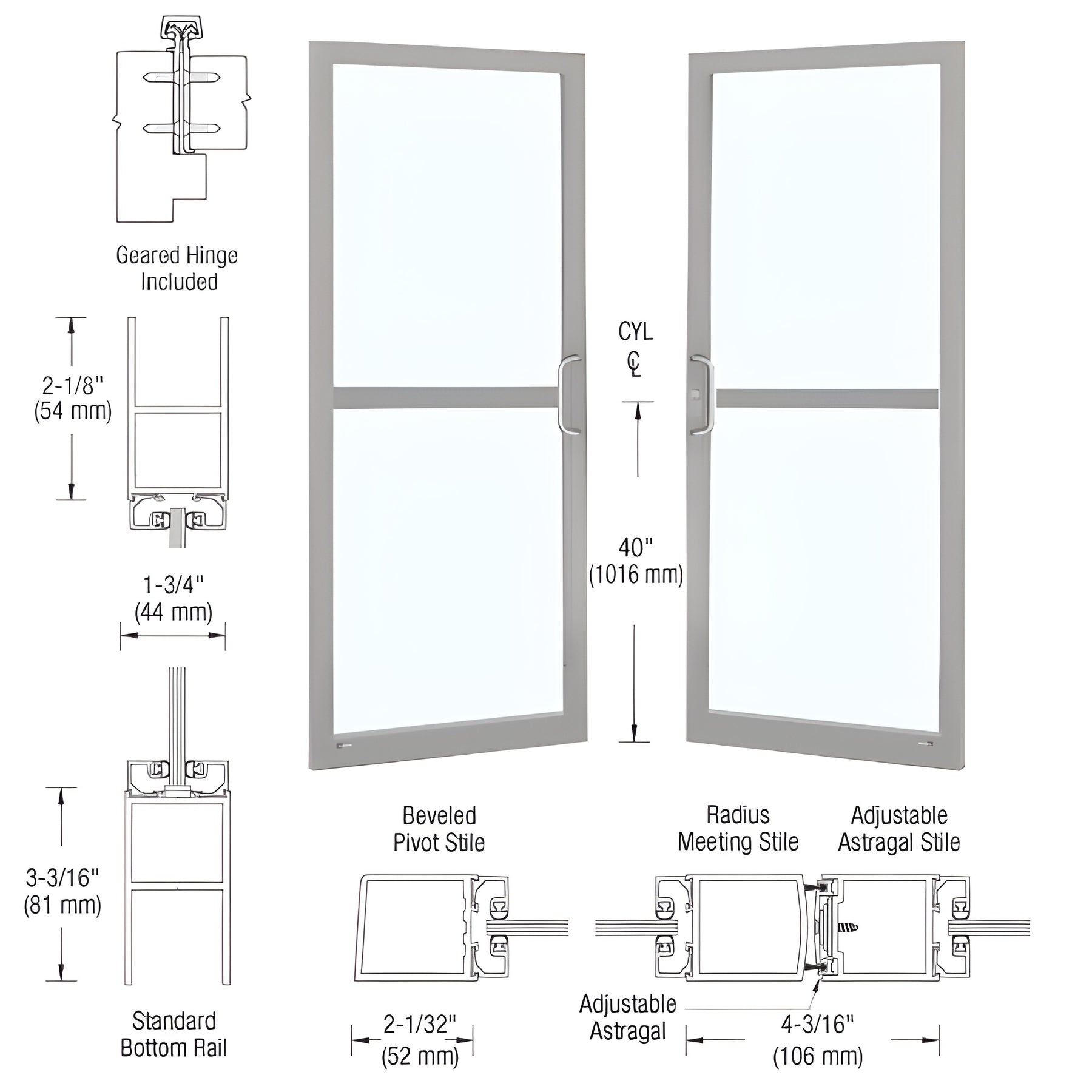

This Custom Narrow Stile Entrance Door (SKU: DZ22811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for customization—ready for a wide range of optional hardware and ADA-compliant configurations.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not pass A.D.A. inspection. Panic hardware and one cylinder are sold and added separately.

Highlight: ADA-ready narrow stile entrance door for commercial applications, customizable to accept insulating glass units and optional panic hardware—order SKU DZ22811 or contact CRL Customer Service to confirm specifications and shipping.
