CRL-U.S. Aluminum Series 250 Clear Anodized Narrow Stile Butt Hinge

• Custom made to your size specifications — SKU: DZ21511
• Includes standard panic pull and hanging hardware
• Selected panic hardware and one cylinder ordered and added separately
• Accommodates 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept optional hardware applications

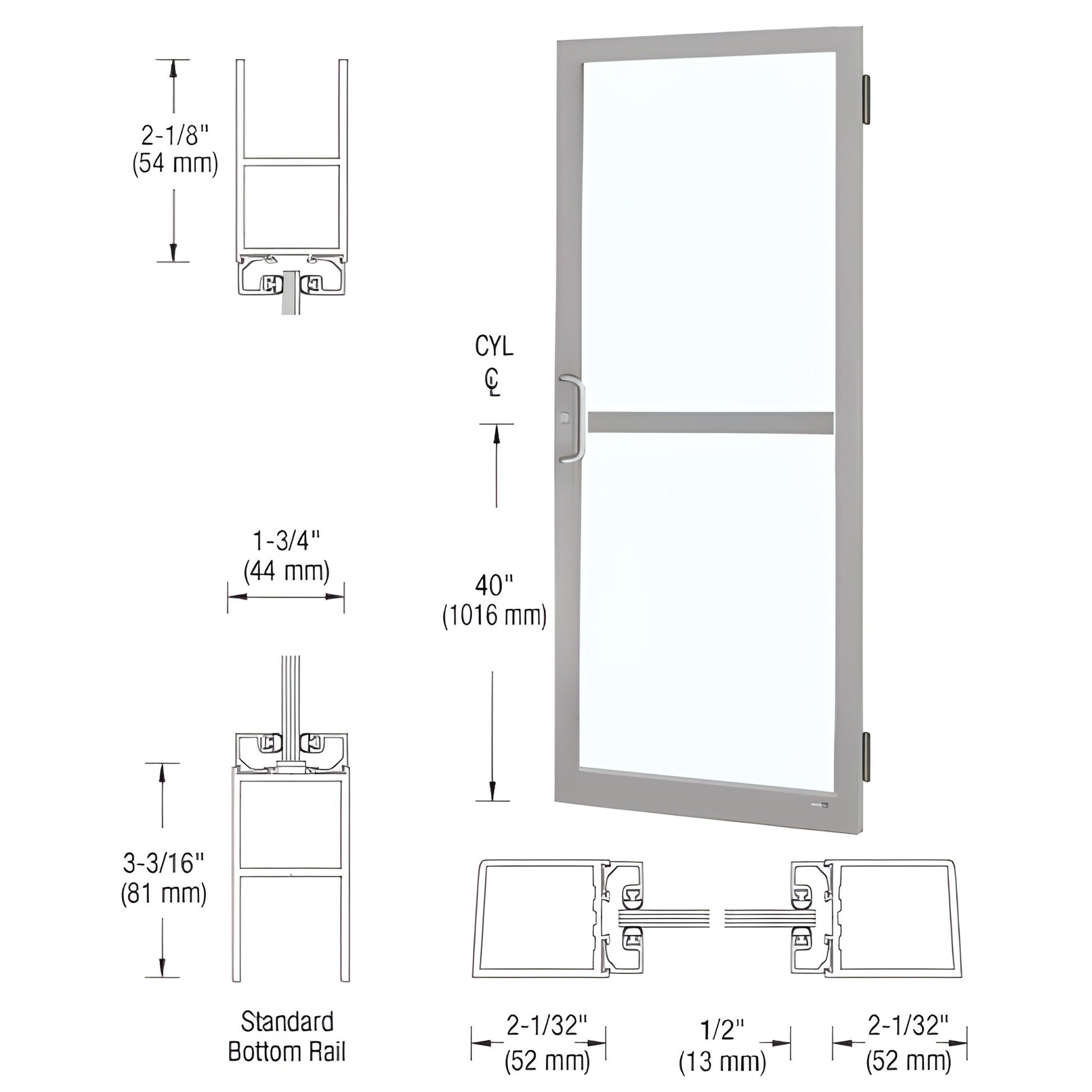

This Custom Narrow Stile Entrance Door is engineered for commercial storefronts and interior openings, built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard features include stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). The door is ready for custom fabrication to accept a wide range of optional hardware applications, providing a tailored solution for ADA-accessible entries and high-traffic commercial doors.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection. Panic hardware and one cylinder must be ordered separately.
