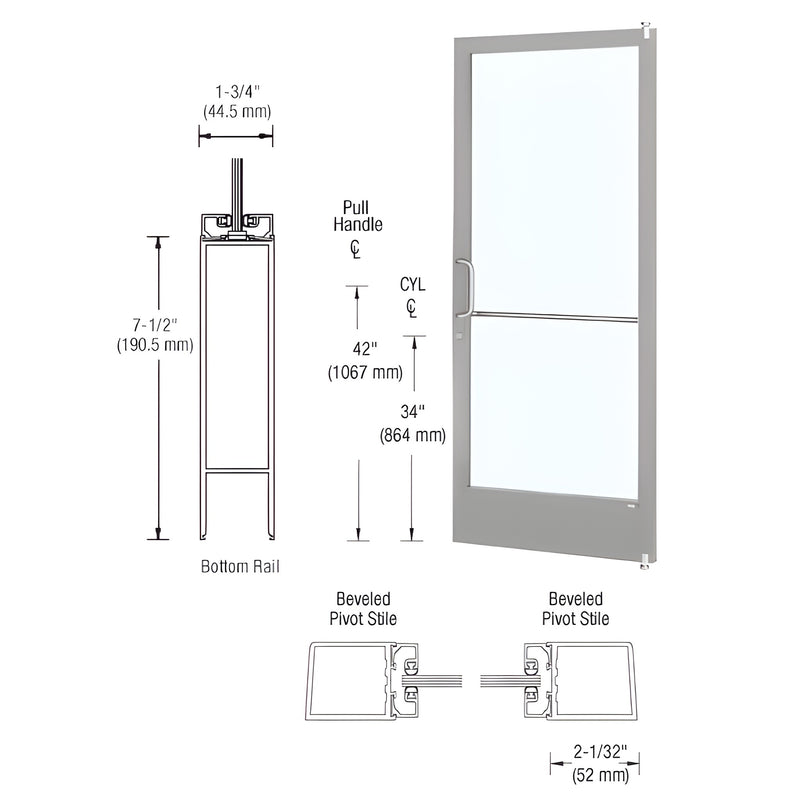

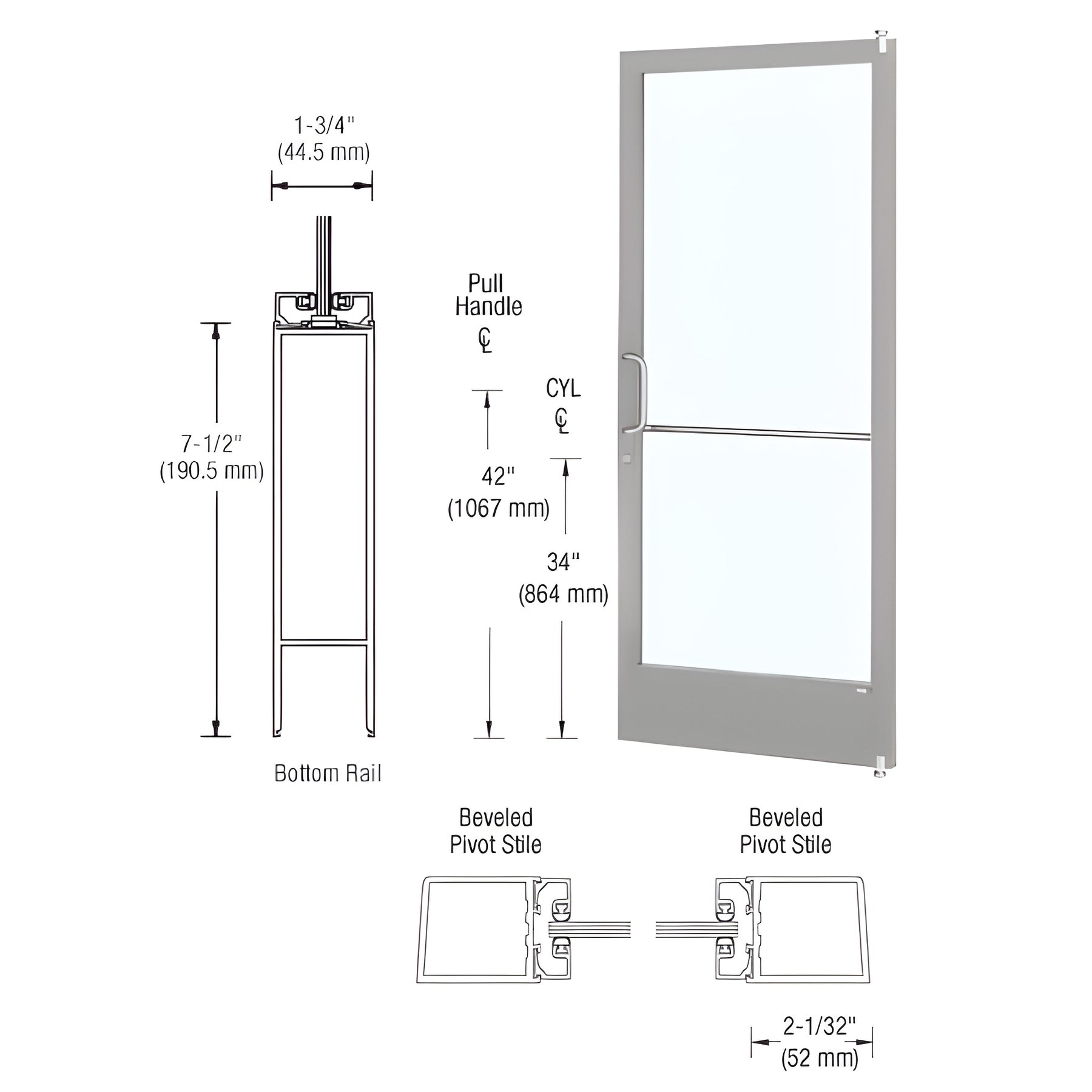

CRL-U.S. Aluminum Series 250 Clear Anodized Offset Pivot Entry Door

• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (IGU) available — glass not included
• 7-1/2" (191 mm) bottom rail
• Custom fabricated to accept optional hardware applications (offset pivot ready)
• Single door 36" x 84" (914 mm x 2.13 m)

Custom Narrow Stile Entrance Door (SKU: HE21211) — engineered with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard glass stops accept 1/4" (6 mm) tempered glass (supplied by others). Door is fabricated to accept offset pivot hardware and a wide range of optional commercial entrance hardware for storefront and architectural applications.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Doors narrower than 36" (914 mm) may not meet A.D.A. requirements or pass ADA inspection.

Ordering or questions? Contact CRL Customer Service to confirm hardware compatibility, IGU options, or lead times.
