CRL-U.S. Aluminum Series 250 Geared Entrance Hinge - Clear Anodized
CRL-U.S. Aluminum Series 250 Geared Entrance Hinge - Clear Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE21811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass with the option for 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications for storefront and commercial entrances
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders (hardware boxed separately to prevent transit damage)

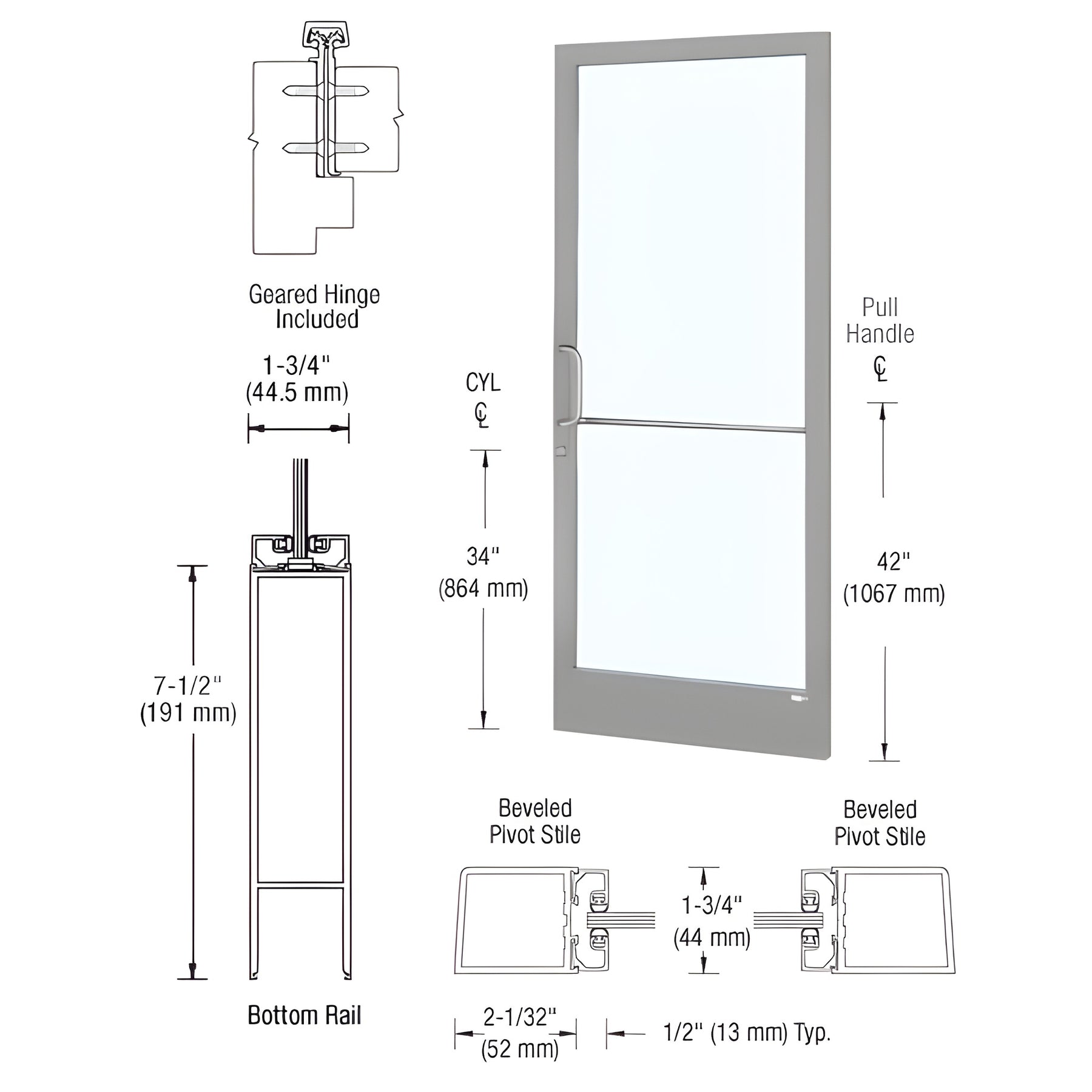

This Custom Narrow Stile Entrance Door (SKU: HE21811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard glass stops accept 1/4" (6 mm) tempered glass (glass supplied by others). Designed for Gear Hinge hardware and ready for custom fabrication to suit a wide range of commercial storefront and tempered glass door hardware options.
Note: Customer must install included protruding hardware (handles, pivots, etc.) removed for shipping. Door widths less than 36" (914 mm) may not pass A.D.A. inspection.
Order SKU HE21811 today to get a custom narrow stile commercial entrance door built for tempered glass and ADA-ready bottom rail—contact us to request exact shipping weight or customization options.
Specifications
BIM Objects - rvt
