CRL-U.S. Aluminum Series 250 Geared Hinge - Narrow Stile, Panic

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

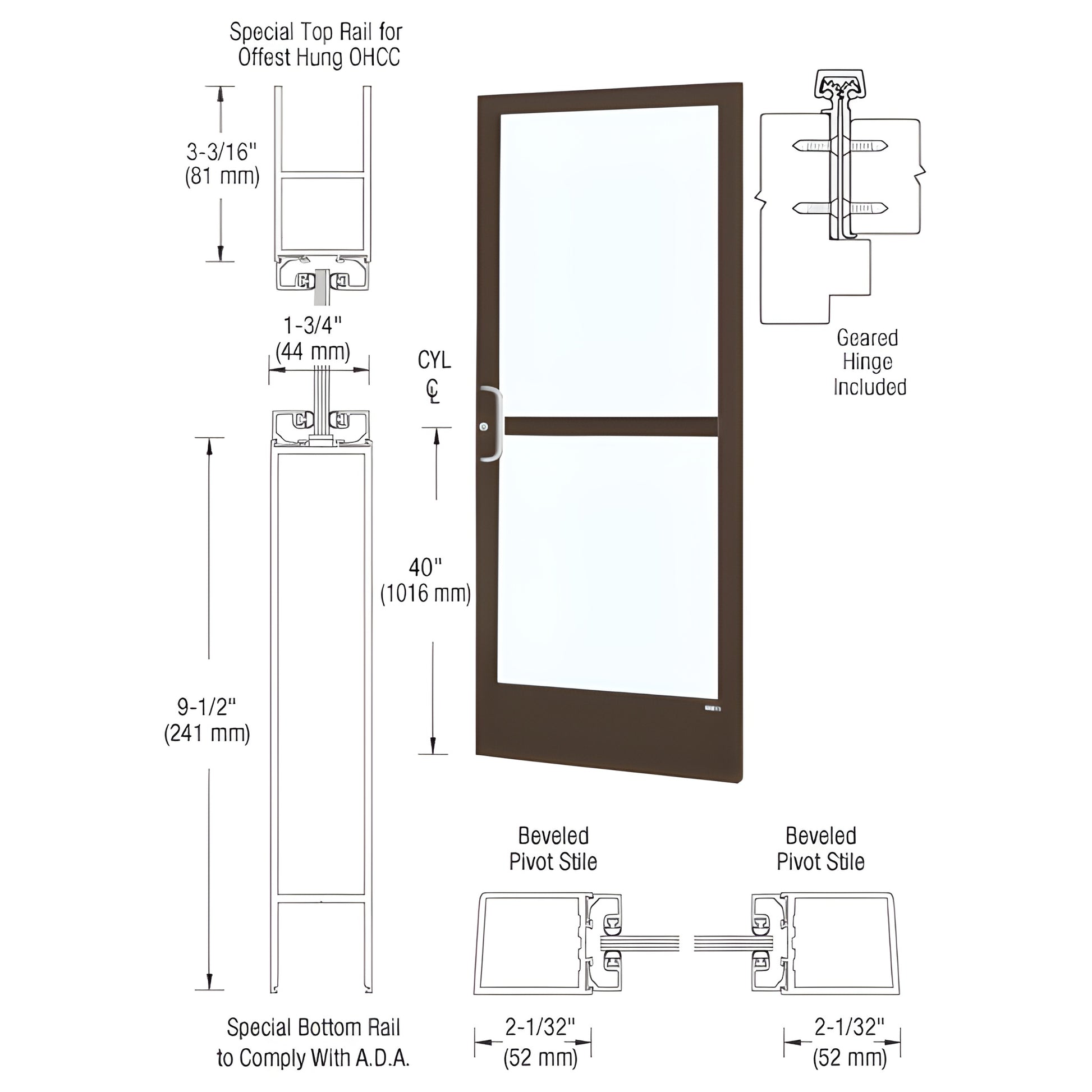

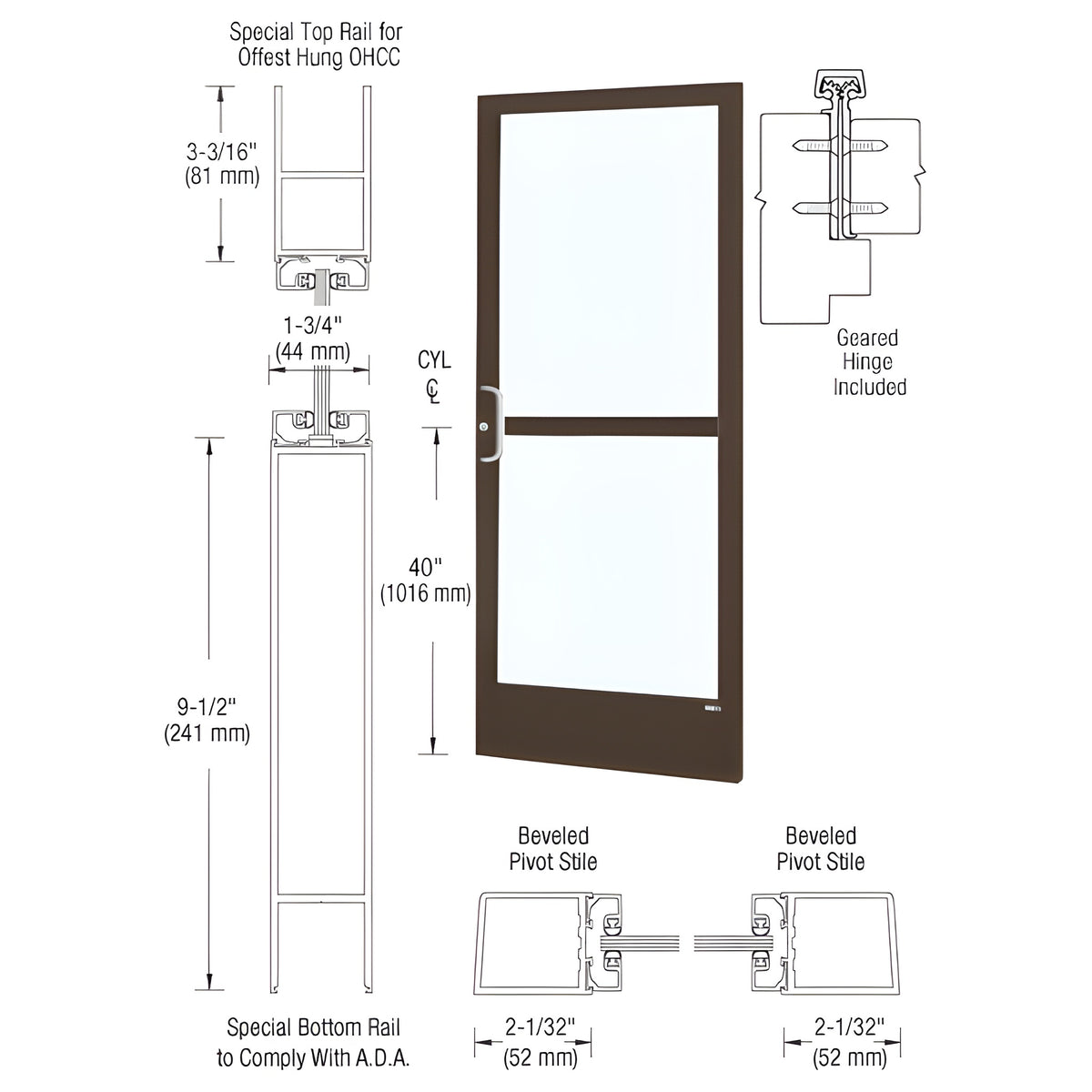

This CRL Custom Narrow Stile Entrance Door (SKU CZ21922) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Engineered for commercial use, this narrow stile entrance door is prepped for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Custom fabrication options allow compatibility with a wide range of commercial hardware applications and concealed vertical rod panic devices.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed on-site. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Key differentiators: ADA-compliant bottom rail, narrow stile commercial design, factory-prepped for Gear Hinge and concealed vertical rod panic hardware, and custom fabrication flexibility. Order SKU CZ21922 or contact us for customization and lead times.
