CRL-U.S. Aluminum Series 250 Geared Hinge Narrow Stile Panic Doors

• Custom made to your size specifications (SKU: DZ22822)
• Includes standard panic pull and hanging hardware
• Panic hardware and one cylinder ordered and added separately
• 9-1/2" (241 mm) bottom rail option available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications (gear hinge ready)
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

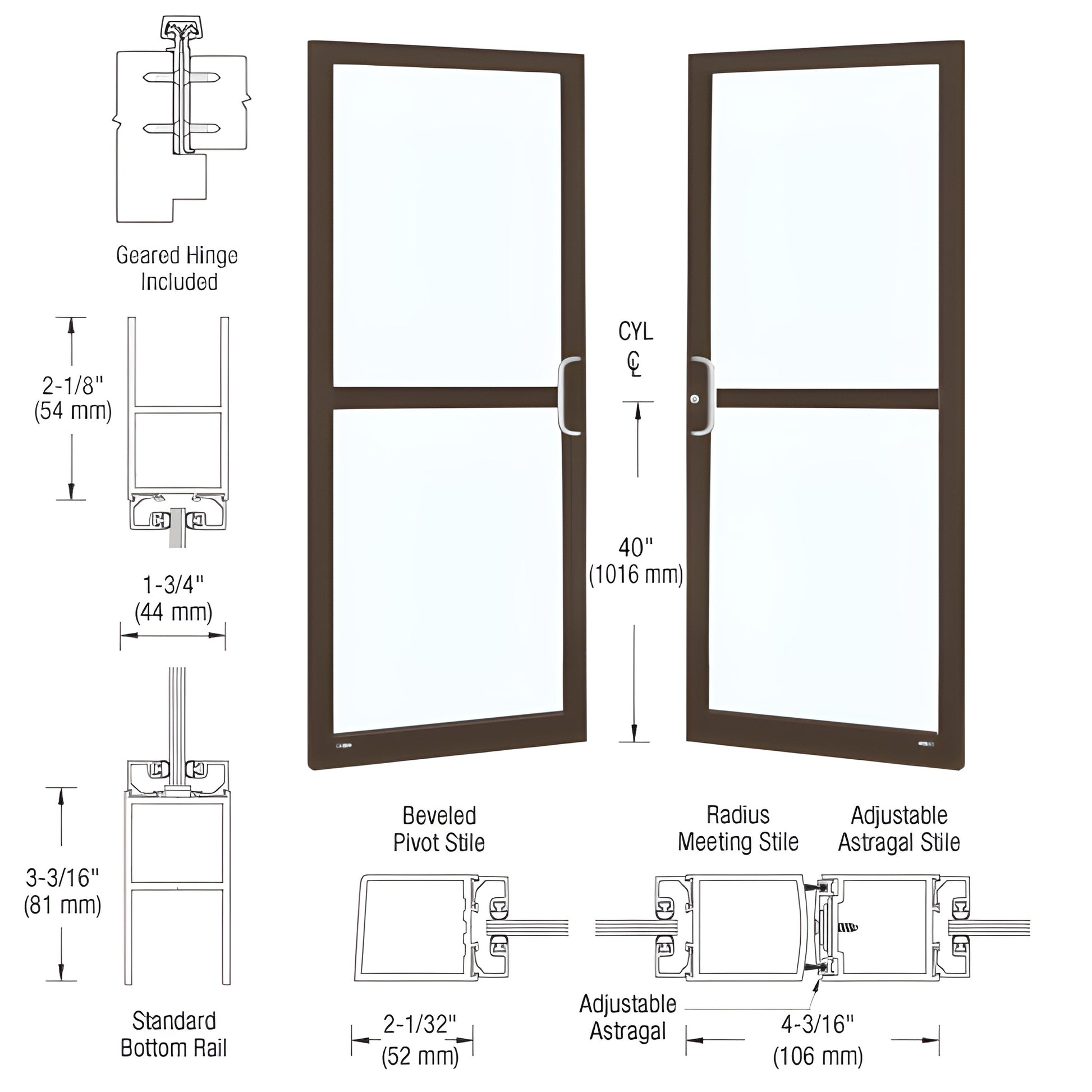

This Custom Narrow Stile Entrance Door is engineered for commercial and ADA-conscious installations with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard features include stiles for gear hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). The door is ready for custom fabrication to support a wide range of optional hardware applications and commercial panic hardware systems.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements. Panic hardware and one cylinder are ordered and added separately.

Need a quote or custom configuration for SKU DZ22822? Contact CRL Customer Service or order now to customize your narrow stile entrance door.
