CRL-U.S. Aluminum Series 250 Geared Hinge Panic Door, White KYNAR

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass (by others) with optional 1" (25 mm) tempered insulating unit; glass not included

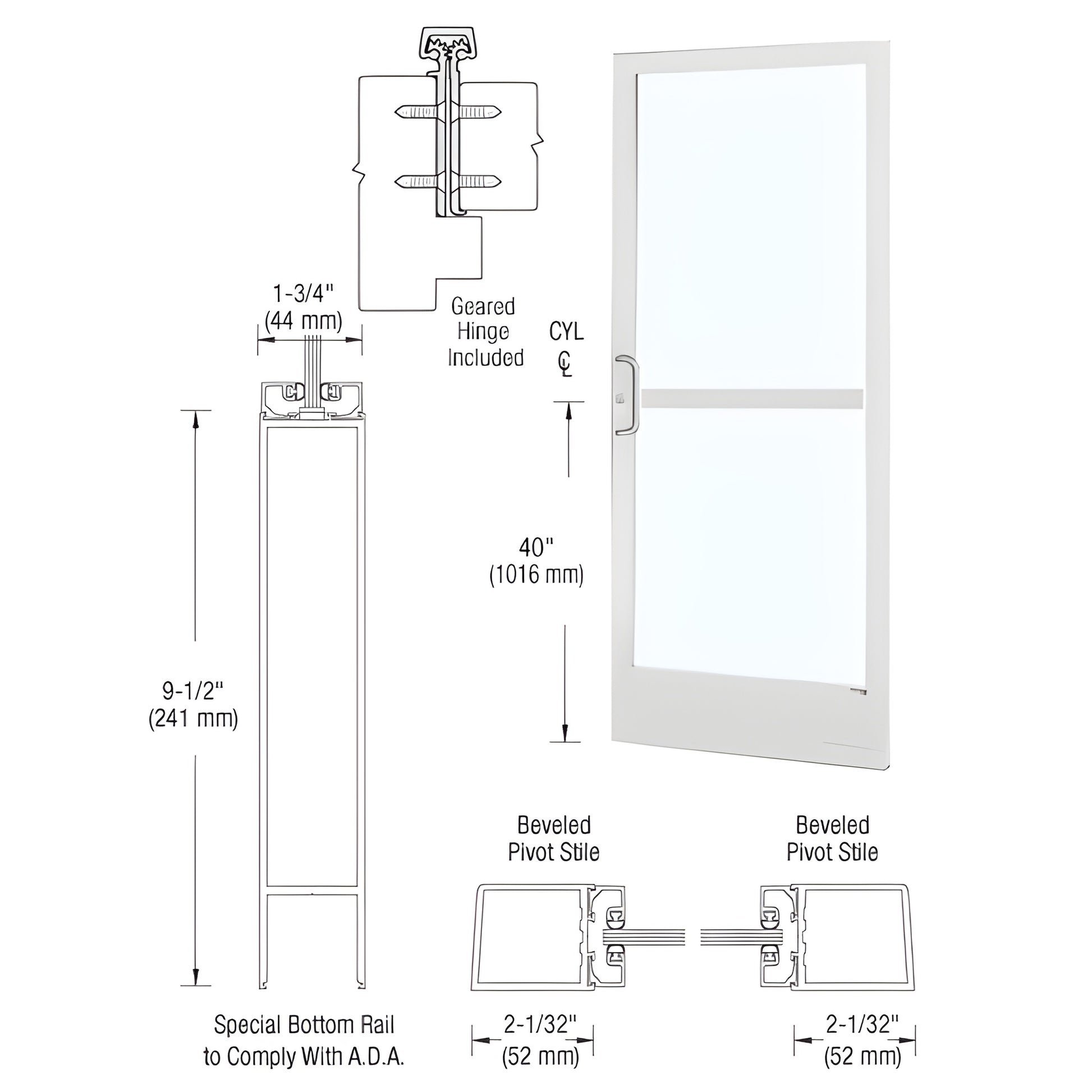

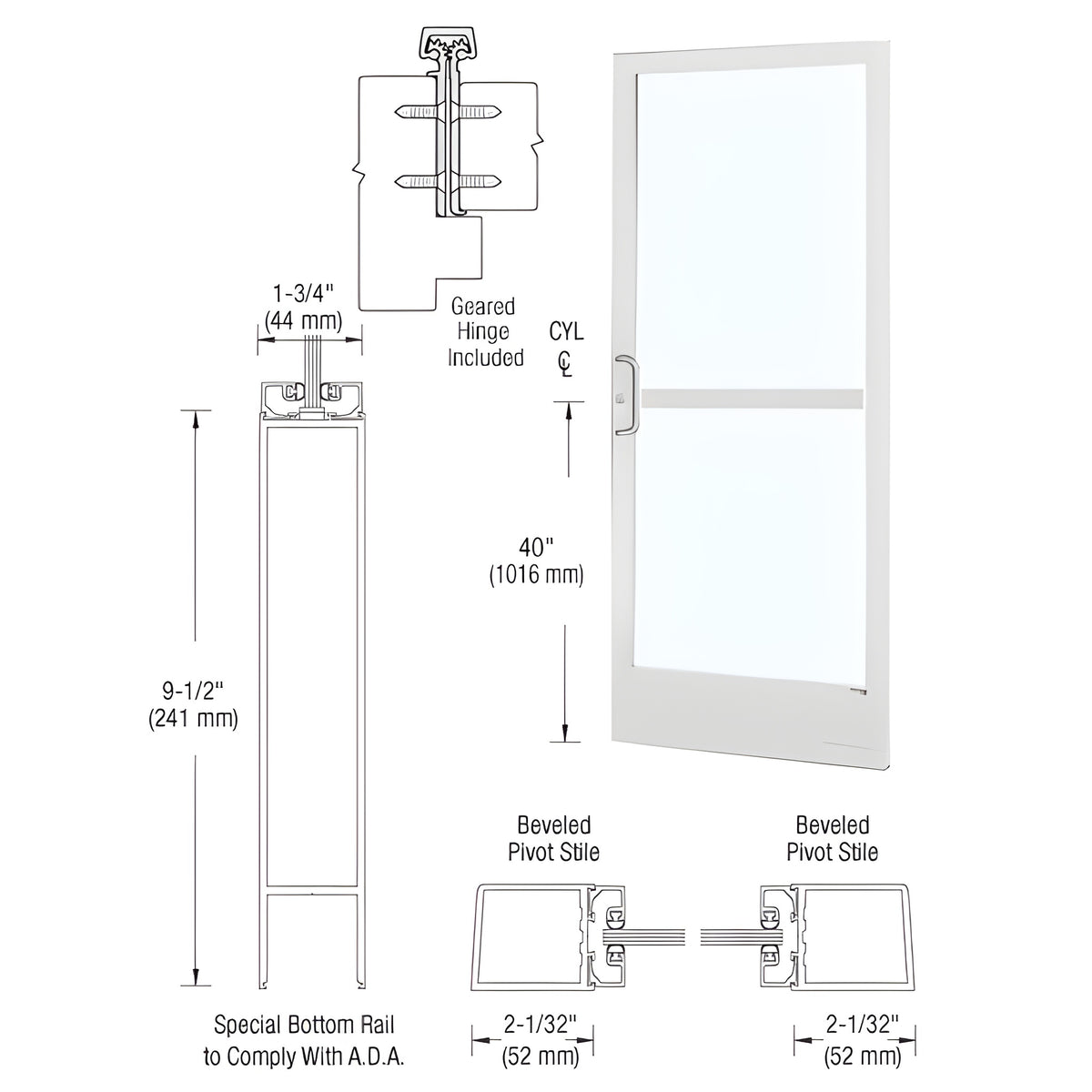

This CRL Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for narrow stile storefronts and commercial entrances, it ships ready for gear hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass. Custom fabrication options allow a wide range of optional hardware applications, including concealed vertical rod panic hardware for secure, code-compliant egress.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths less than 36" (914 mm) may not pass A.D.A. inspection.

SKU: CZ21852

Order SKU CZ21852 or contact CRL for custom hardware options and lead times.
