CRL-U.S. Aluminum Series 250 Narrow-Stile Butt Hinge, Clear Anodized
CRL-U.S. Aluminum Series 250 Narrow-Stile Butt Hinge, Clear Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware
- 7-1/2" (191 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept a wide range of optional hardware applications

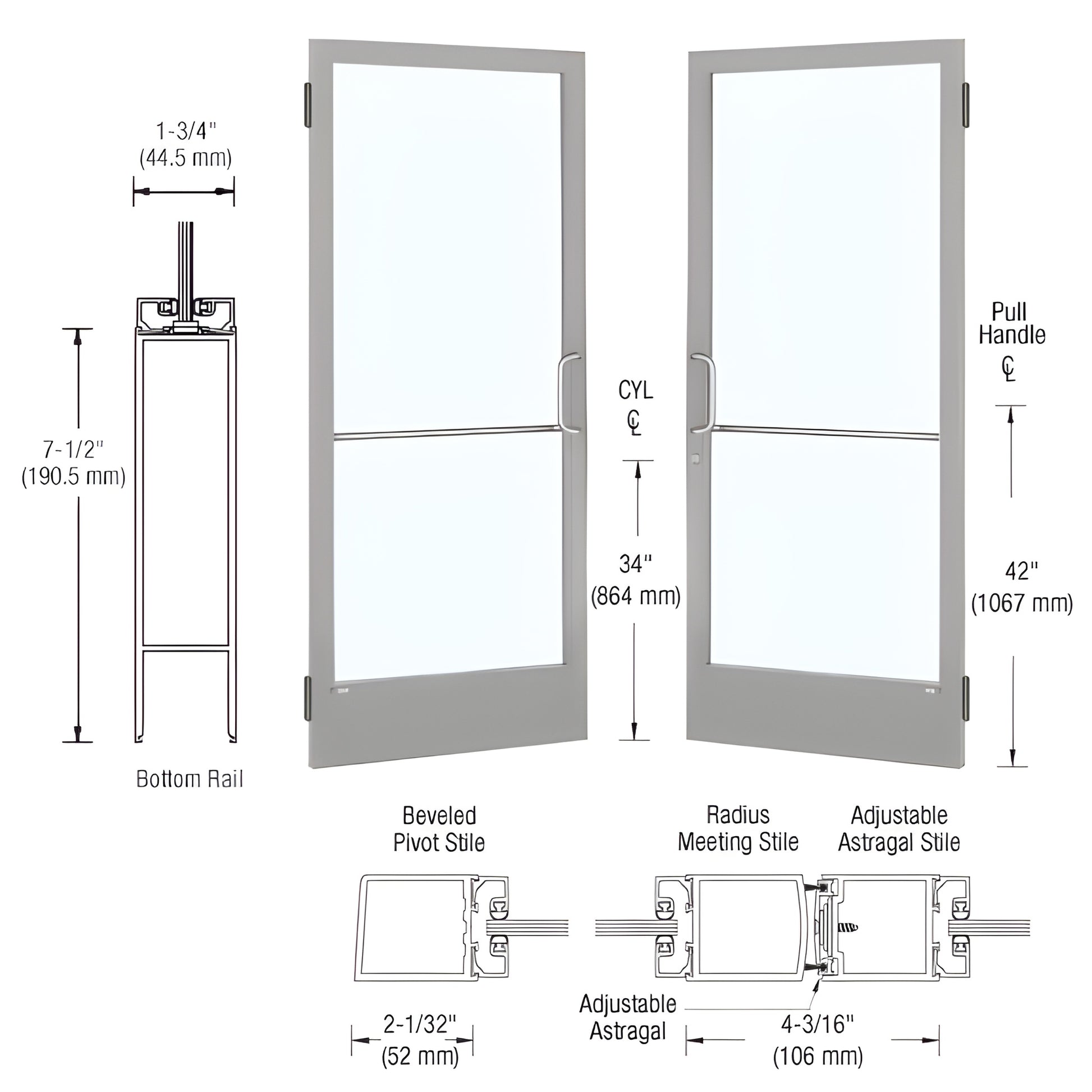

This Custom Narrow Stile Entrance Door (SKU: HE22511) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard construction includes stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Ready for custom fabrication to accommodate optional locking, pivot, and accessory hardware—ideal for commercial tempered glass entry systems and narrow stile storefront installations.
Customer must install included protruding hardware (handles, pivots, etc.) boxed separately to prevent damage in transit.
Shop HE22511 — customize rails and hardware for ADA-compliant tempered glass entry doors. Contact us to configure your door today.
Specifications
BIM Objects - rvt
