CRL-U.S. Aluminum Series 250 Narrow Stile Butt Hinge Pair, KYNAR
CRL-U.S. Aluminum Series 250 Narrow Stile Butt Hinge Pair, KYNAR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR22571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware; protruding hardware (handles, pivots) boxed separately for customer installation
- Custom fabricated for specialty applications
- Commonly specified for auto and boat dealership entrances and showroom storefronts

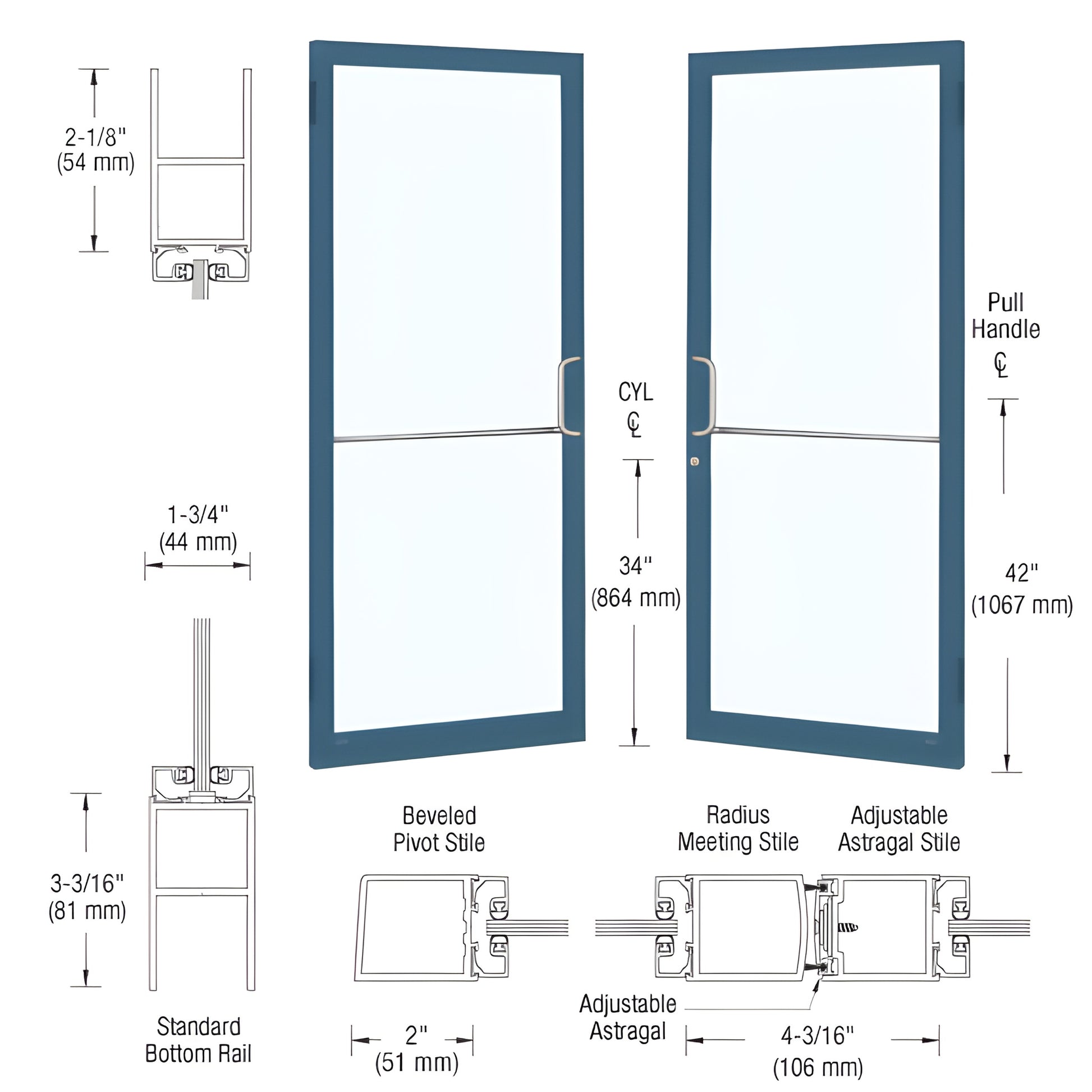

This Custom Narrow Stile Entrance Door (SKU: SR22571) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others), making it ready for a wide range of optional hardware and storefront configurations. Designed for commercial showroom and dealership use where a narrow stile, high-visibility entrance is required.
Customer must install included protruding hardware that is boxed separately to prevent transit damage.
Why choose this door: Custom-fabricated narrow stile entrance ideal for dealership and showroom storefronts, accepts insulating glass options, and ships with all standard hardware for flexible field installation.
Contact CRL Customer Service to confirm specs or request shipping weight and to place an order.
Specifications
BIM Objects - rvt
