CRL-U.S. Aluminum Series 250 Narrow Stile Door - Geared Hinge, KYNAR
CRL-U.S. Aluminum Series 250 Narrow Stile Door - Geared Hinge, KYNAR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Custom fabricated to accept optional hardware applications for commercial and institutional entrances
- Includes standard push/pull hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements

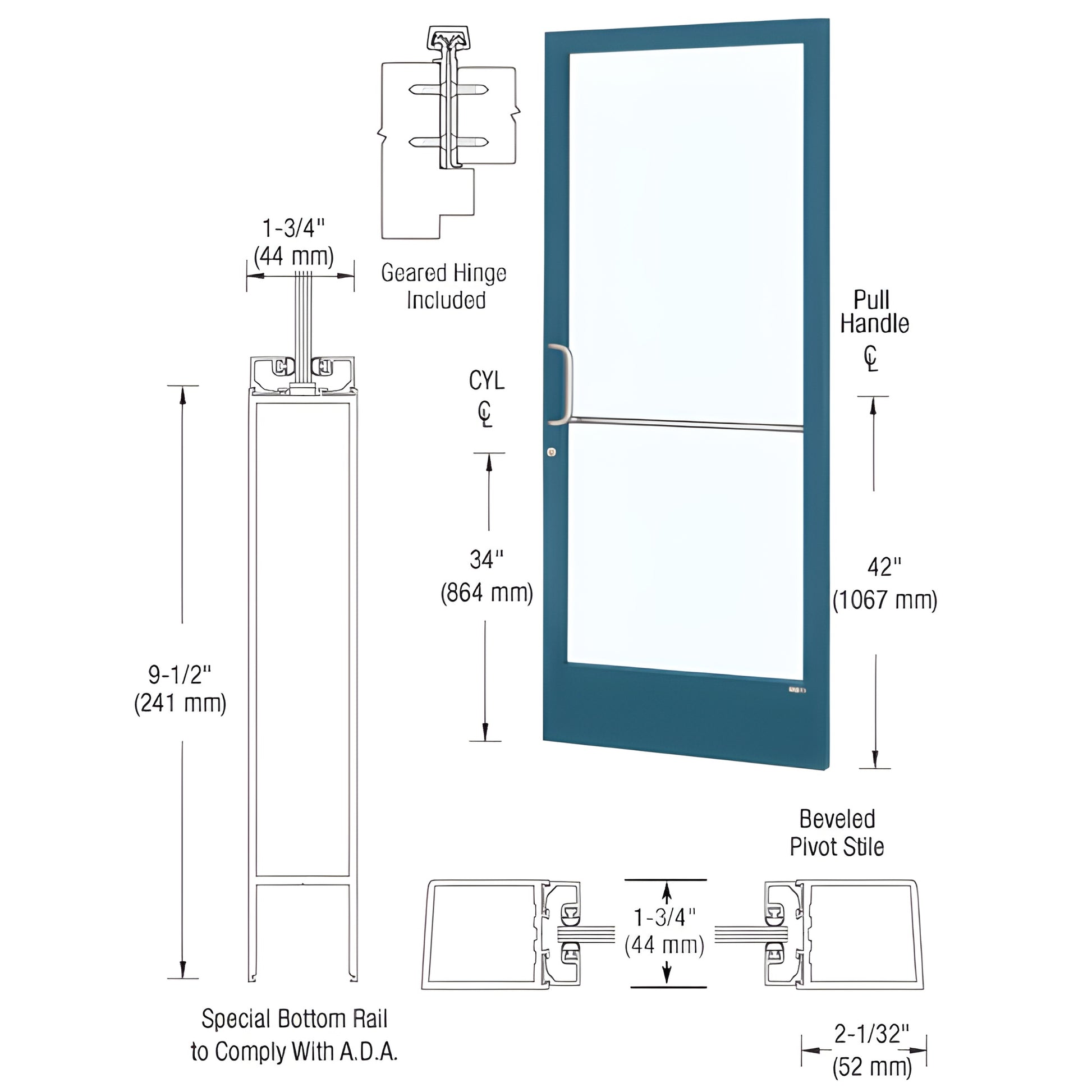

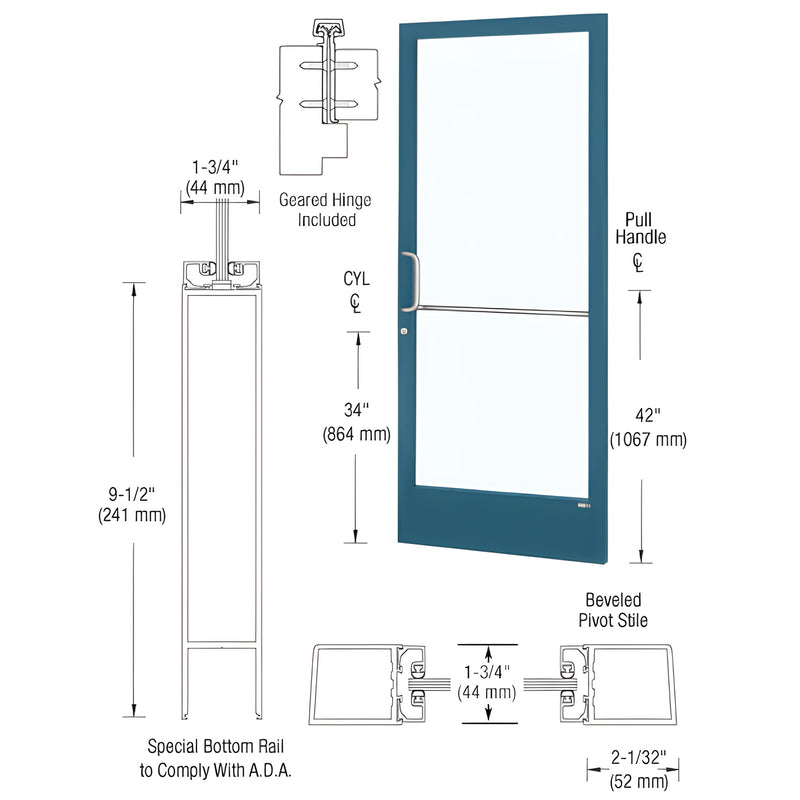

This Custom Narrow Stile Entrance Door (SKU: DE21871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Door is ready for custom fabrication to accommodate a wide range of optional hardware for commercial entrance installations.
Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Specifications
BIM Objects - rvt
