CRL-U.S. Aluminum Series 250 Narrow Stile Door, KYNAR, Geared Hinge
Item# DC21871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass with the option for a 1" (25 mm) tempered insulating unit (glass not included)

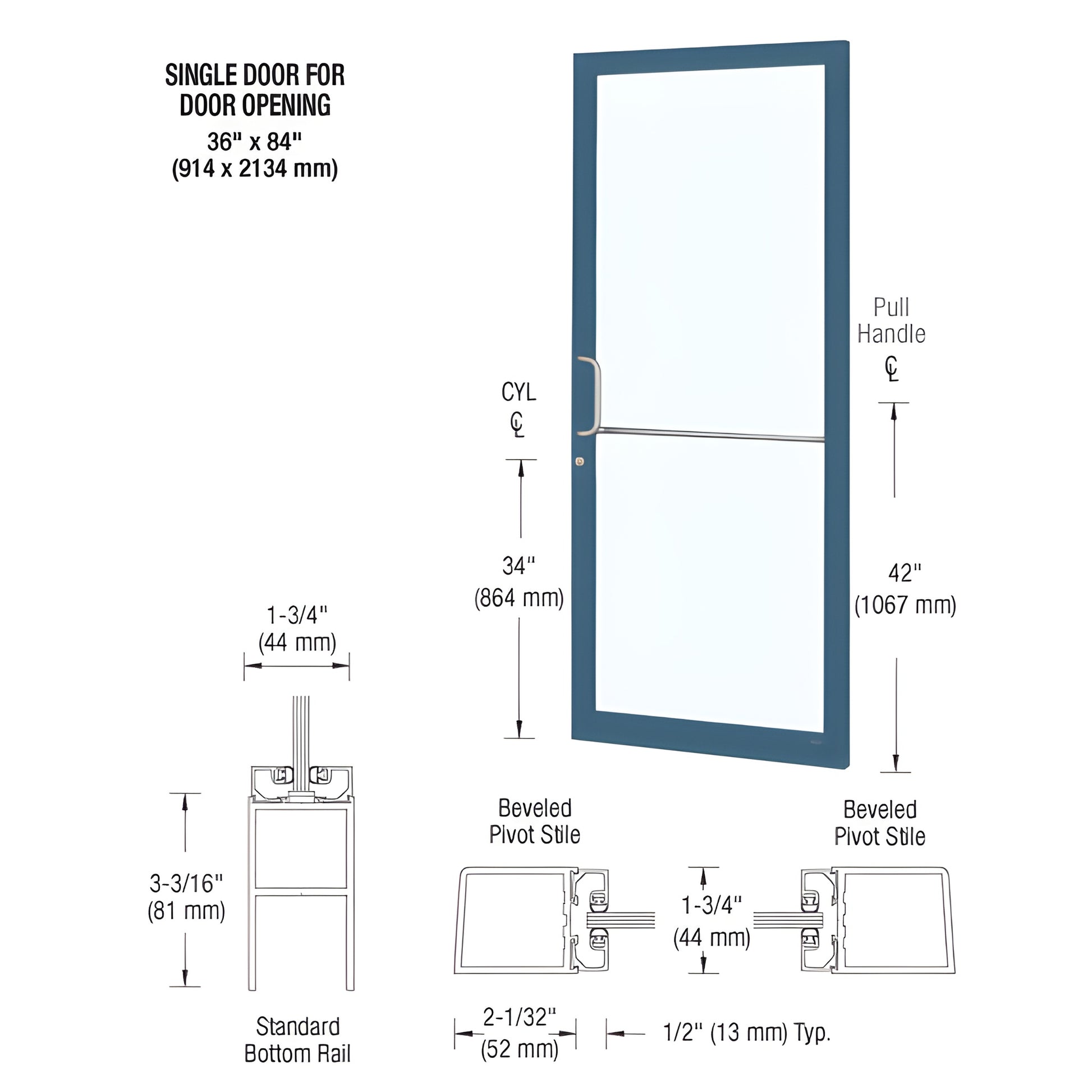

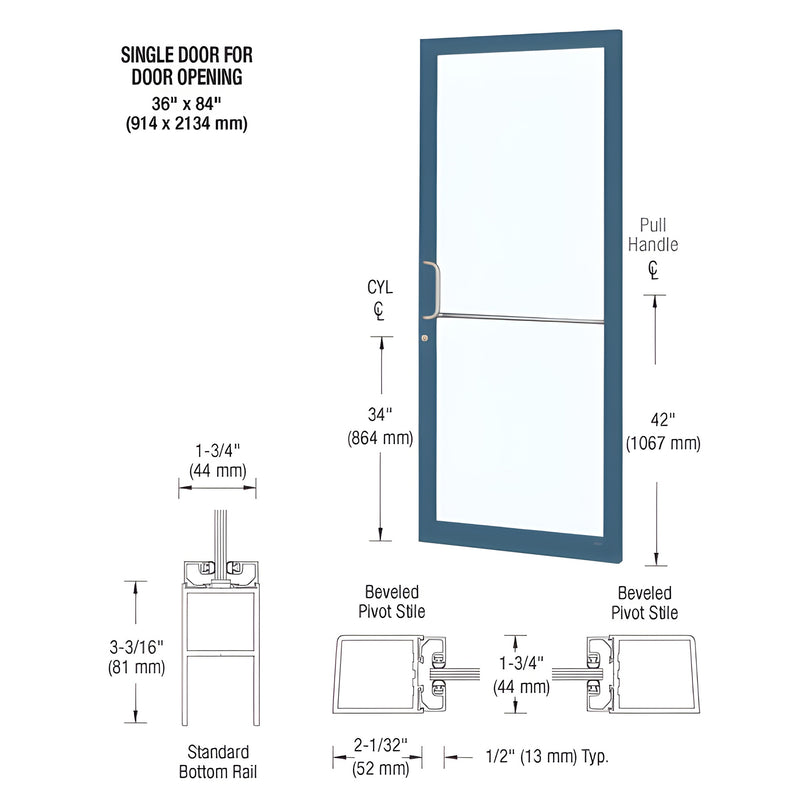

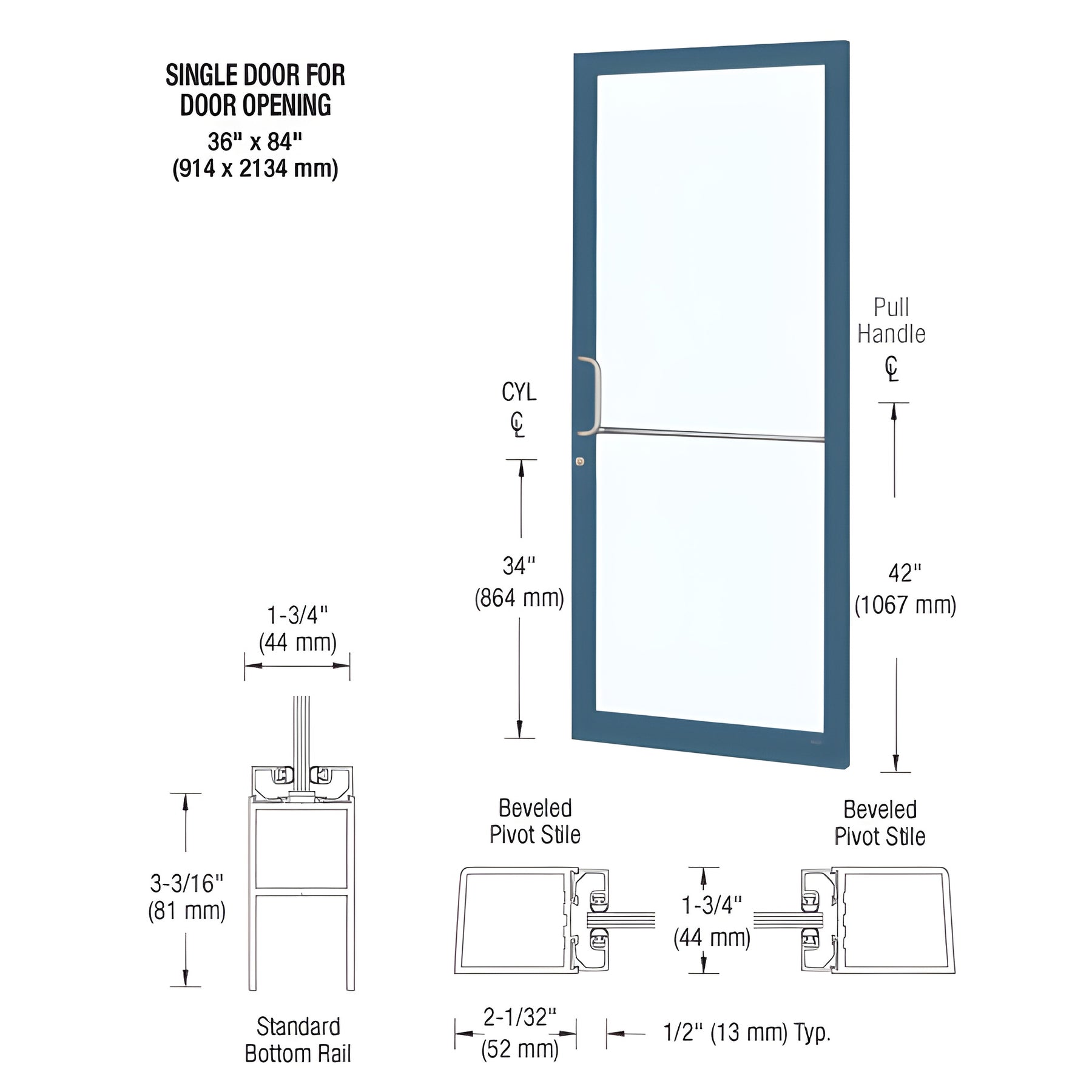

This Custom Narrow Stile Entrance Door (SKU: DC21871) is designed for commercial and retail entrances that require a narrow stile profile. Built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail, the door features stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Engineered for custom fabrication, it supports a wide range of optional hardware for specialty and ADA-compliant storefront and commercial glass door installations.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Note: door widths less than 36" (914 mm) may not pass A.D.A. inspection.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor's settings.
Ideal for storefronts, commercial entrances, and ADA-conscious projects—order SKU DC21871 or contact us for quotes and lead times.
BIM Objects - rvt
