CRL-U.S. Aluminum Series 250 Narrow Stile Entry Door - Geared Hinge
CRL-U.S. Aluminum Series 250 Narrow Stile Entry Door - Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE21852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders (SKU: HE21852)
- 9-1/2" (241 mm) bottom rail option for ADA and Title 24 compliance
- Custom fabricated to accept a wide range of optional hardware applications
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)

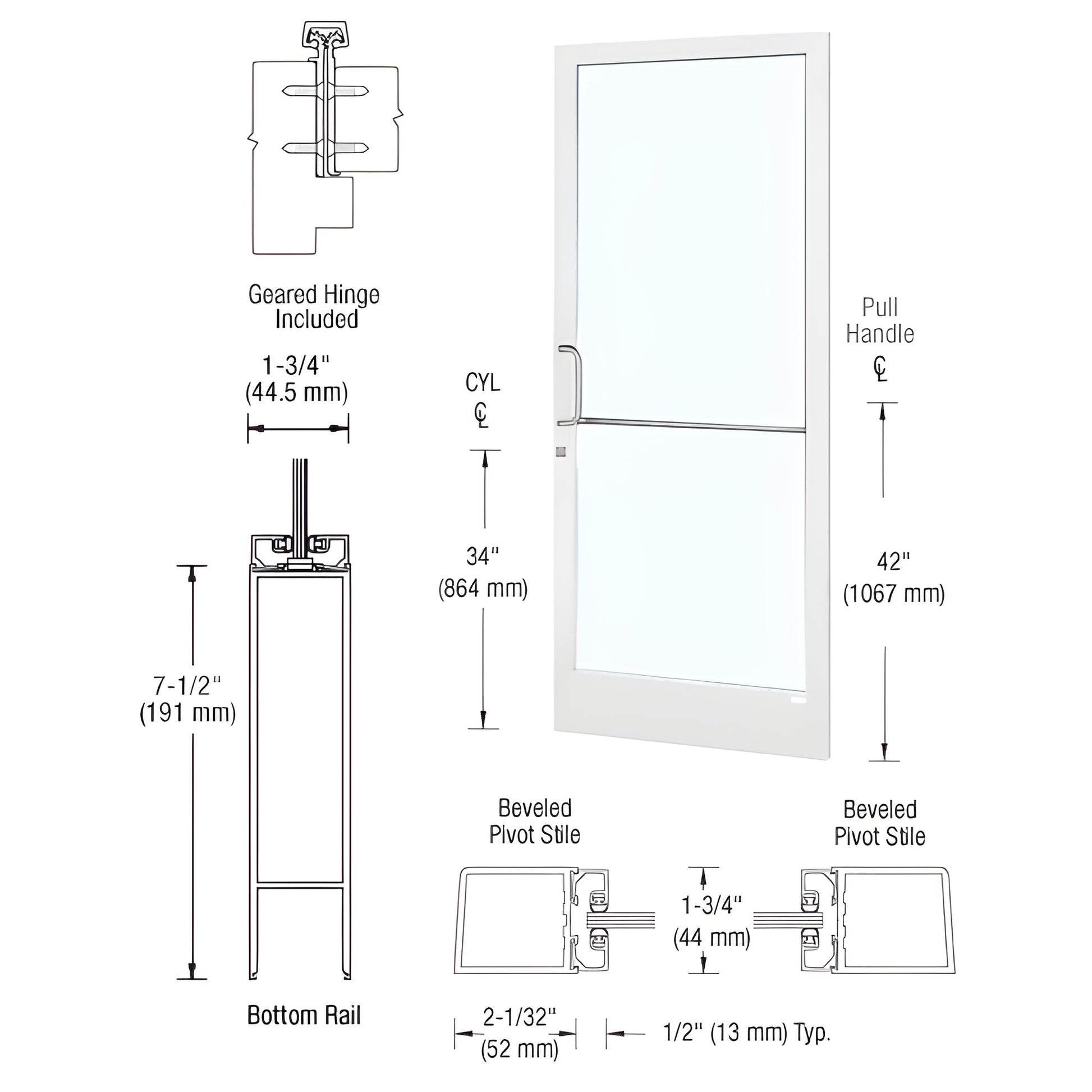

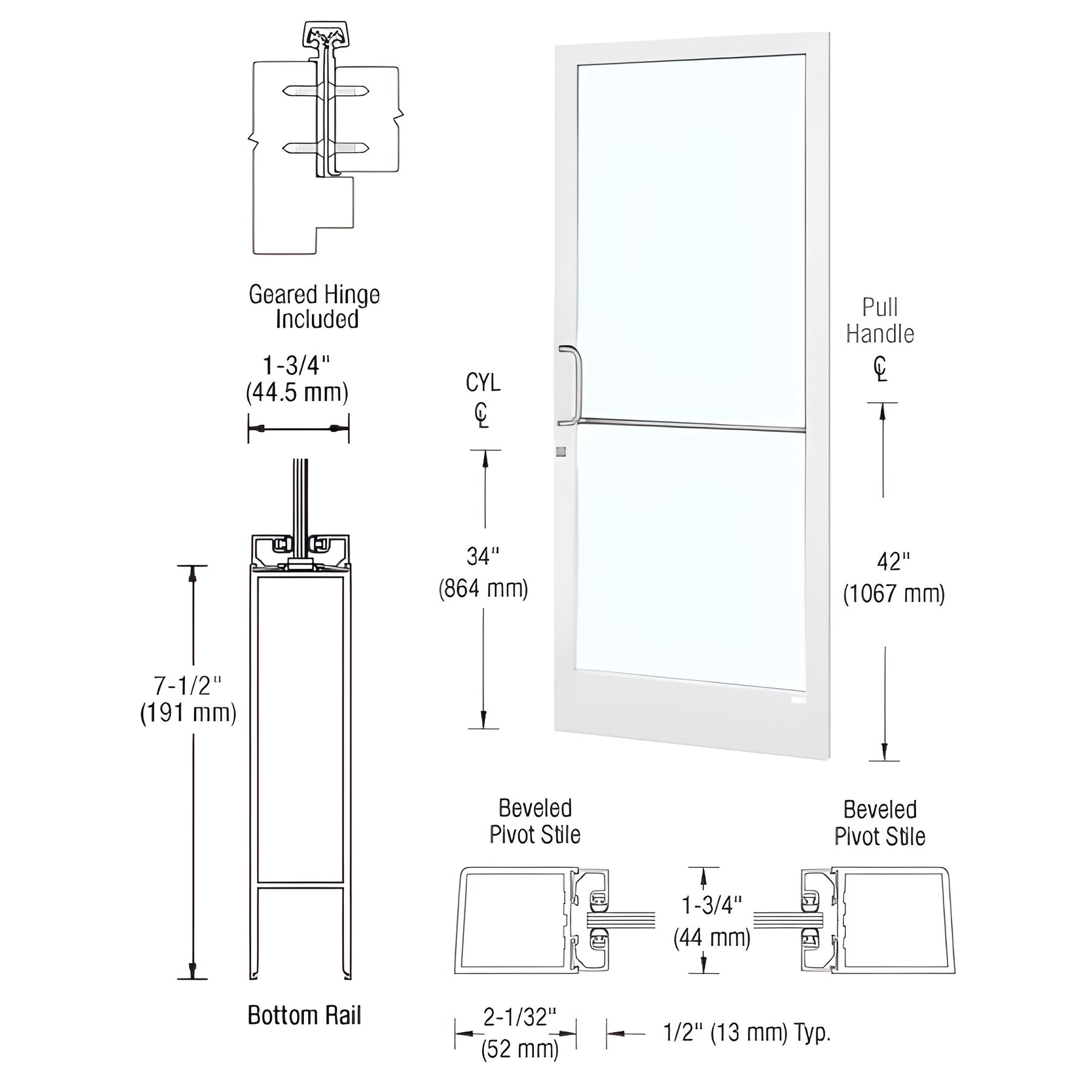

This Custom Narrow Stile Entrance Door (SKU: HE21852) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard design includes stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom narrow-stile entrance door applications and optional commercial hardware upgrades.
Hardware packaged separately: customers must install protruding items (handles, pivots, etc.) removed for transit protection. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
Specifications
BIM Objects - rvt
