CRL-U.S. Aluminum Series 250 Narrow-Stile Geared Hinge Entrance Door

• SKU: DZ21852
• Custom Narrow Stile Entrance Door built to your size specifications

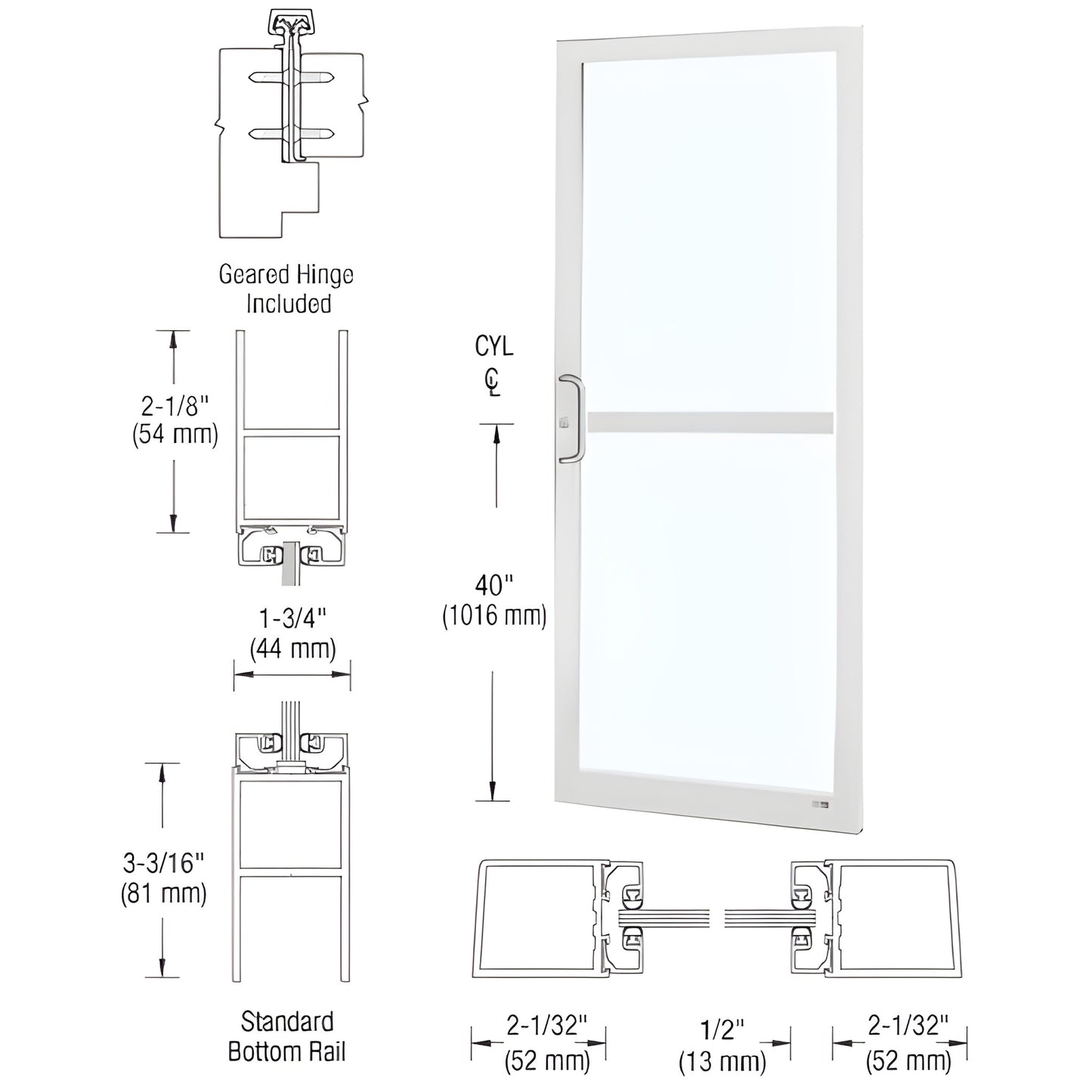

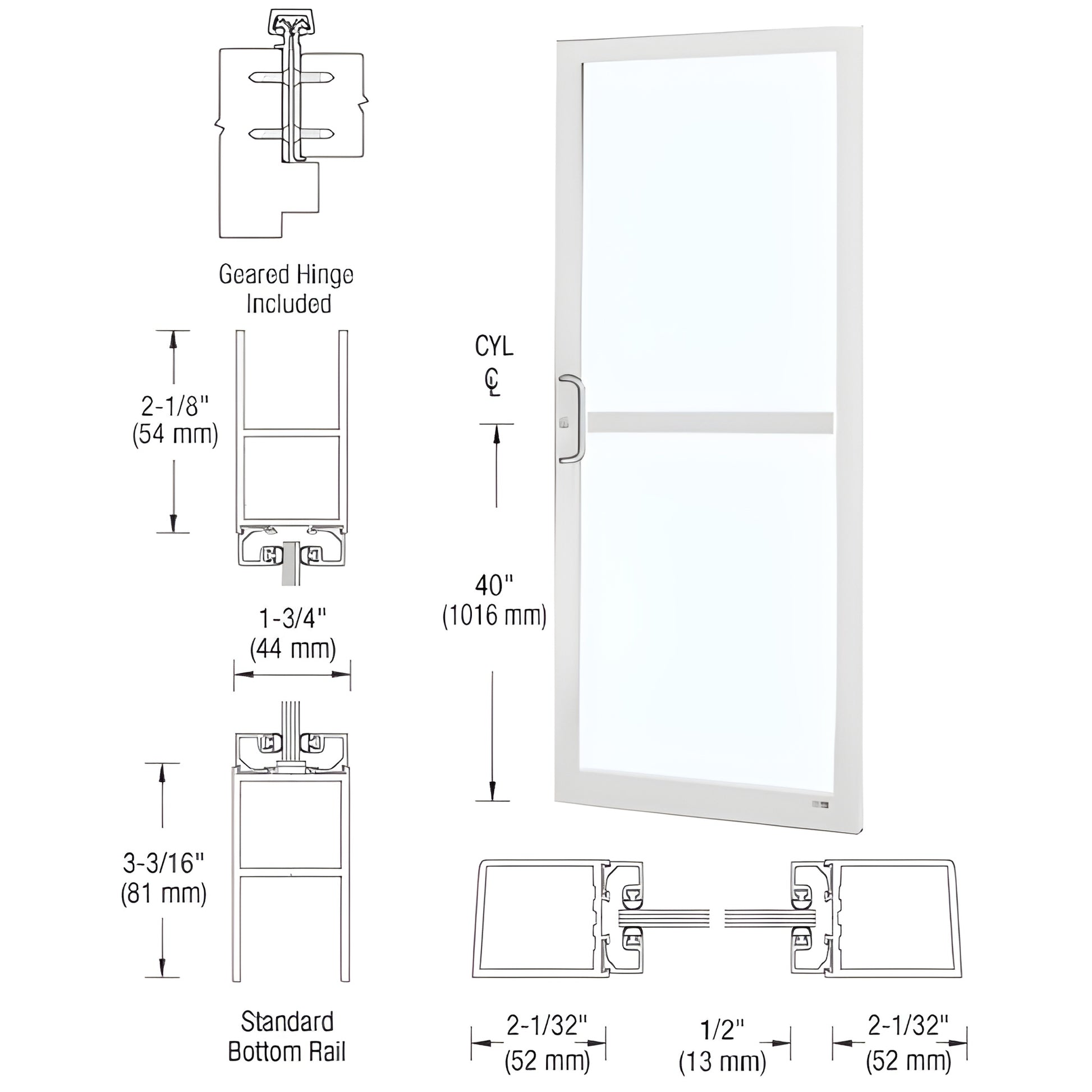

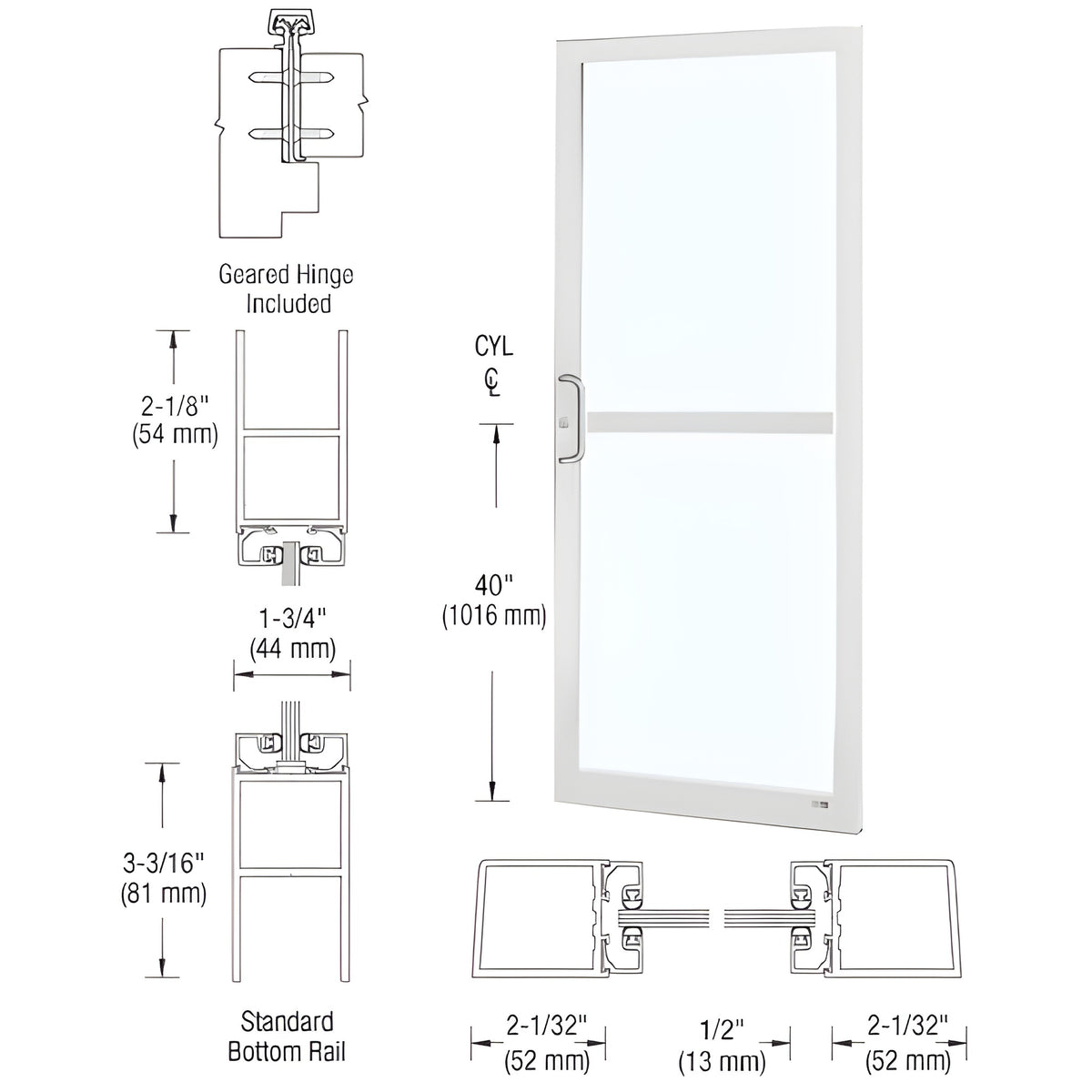

• Sturdy 2" (51 mm) stiles, 2-1/8" (54 mm) top rail, and 3-3/16" (81 mm) bottom rail
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) bottom rail option available to comply with A.D.A. and Title 24/21 applications
• Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots) boxed separately for shipment
• Prepared with stiles for Gear Hinge hardware and glass stops for 1/4" tempered glass (by others)
• Custom fabricated to accept a wide range of optional hardware applications
• Panic hardware and one cylinder must be ordered and added separately

This Custom Narrow Stile Entrance Door is engineered for commercial entries and storefronts where narrow stiles and tempered glass are required. Designed for easy customization and hardware installation, it ships with standard hanging hardware and boxed protruding components to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection. Panic hardware and one cylinder ordered separately.

Order SKU DZ21852 or contact CRL for pricing and custom sizing assistance.
