CRL-U.S. Aluminum Series 400 Black Anodized Offset Geared Hinge Doors

• Selected panic hardware and one cylinder ordered and added separately
• Includes standard panic pull and hanging hardware
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass not included)
• 6-1/2" (165 mm) bottom rail
• Custom fabricated to accept a wide range of optional hardware applications

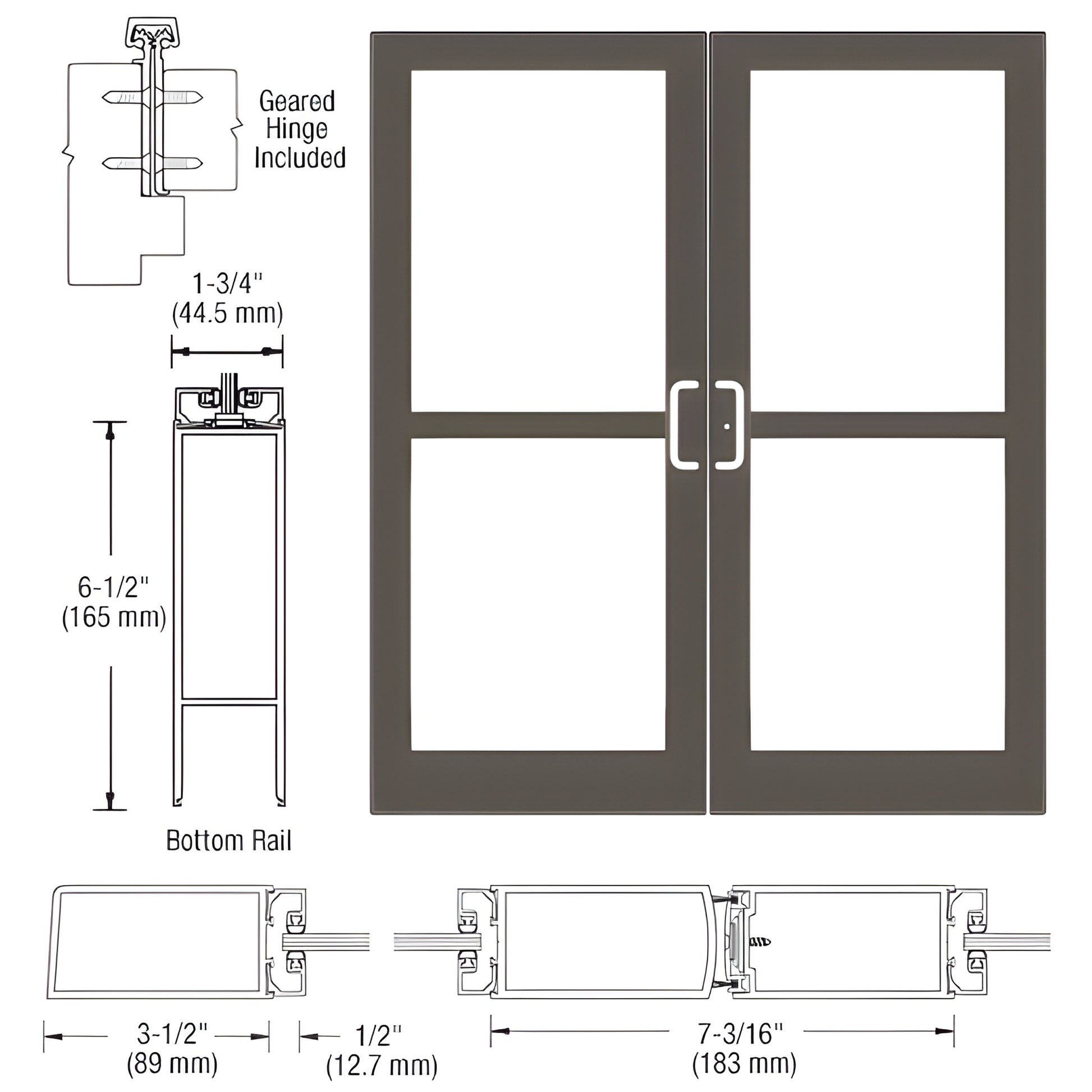

CRL Custom Medium Stile Entrance Door — Built for commercial storefronts and institutional applications, this door features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is custom-fabricated to accept optional hardware, including panic hardware and insulated glass units for improved thermal performance.

Please note: included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.

SKU: DZ42822

Order the CRL Custom Medium Stile Entrance Door (SKU DZ42822) — contact CRL for custom hardware options and lead times.
