CRL-U.S. Aluminum Series 400 Center Pivot Door - KYNAR, Closer-Ready
CRL-U.S. Aluminum Series 400 Center Pivot Door - KYNAR, Closer-Ready
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE41771
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications and center pivot hardware
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed-alike cylinders (hardware boxed separately)

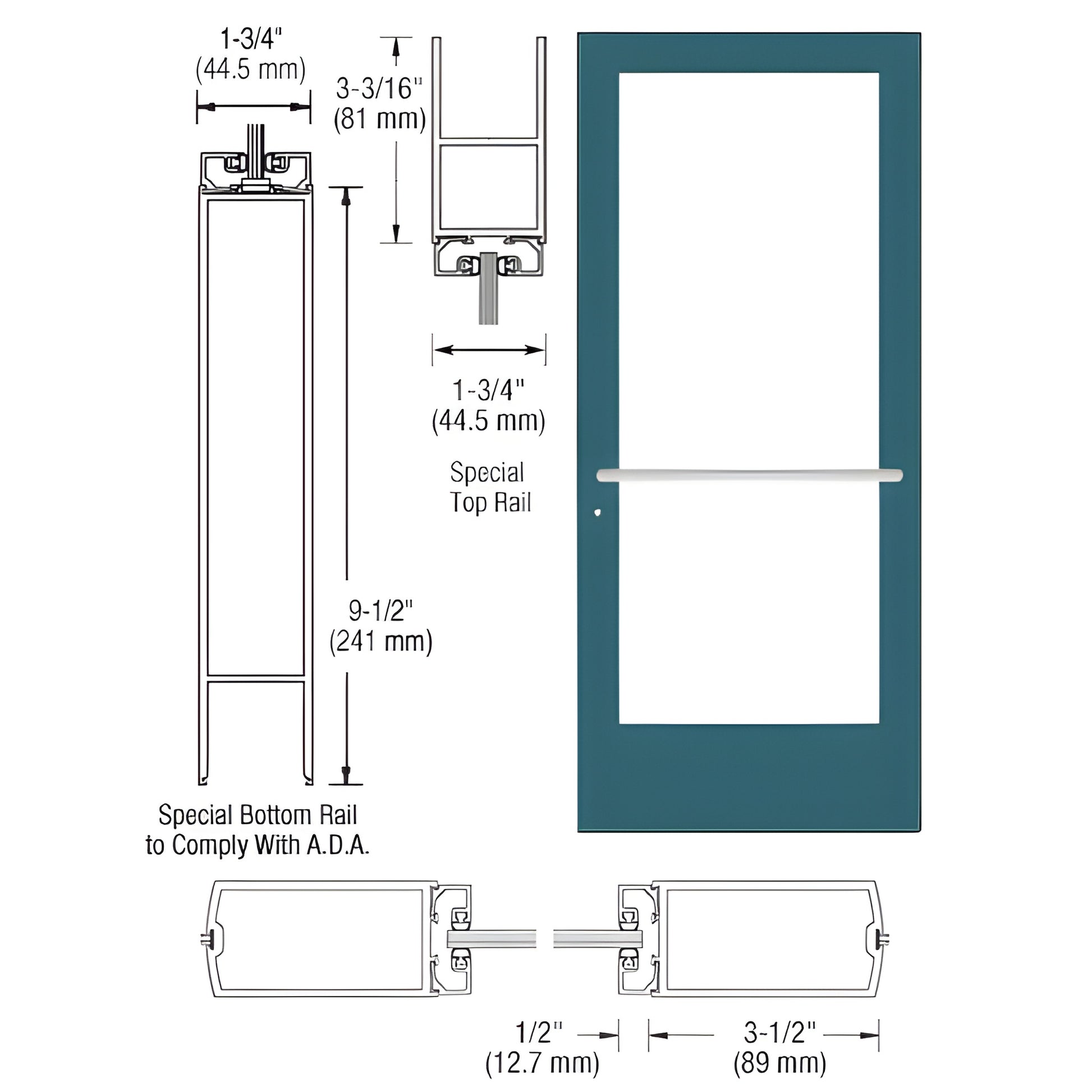

This Custom Medium Stile Entrance Door (SKU: DE41771) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial entry use, it includes glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others) and is ready for custom fabrication to accommodate a wide range of optional hardware applications.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Specifications
BIM Objects - rvt
