CRL-U.S. Aluminum Series 400 Clear Anodized Butt-Hinged Entrance Door
Item# DE41511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized Class 1
- Includes Standard Push/Pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be fitted (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accept a wide range of optional hardware applications

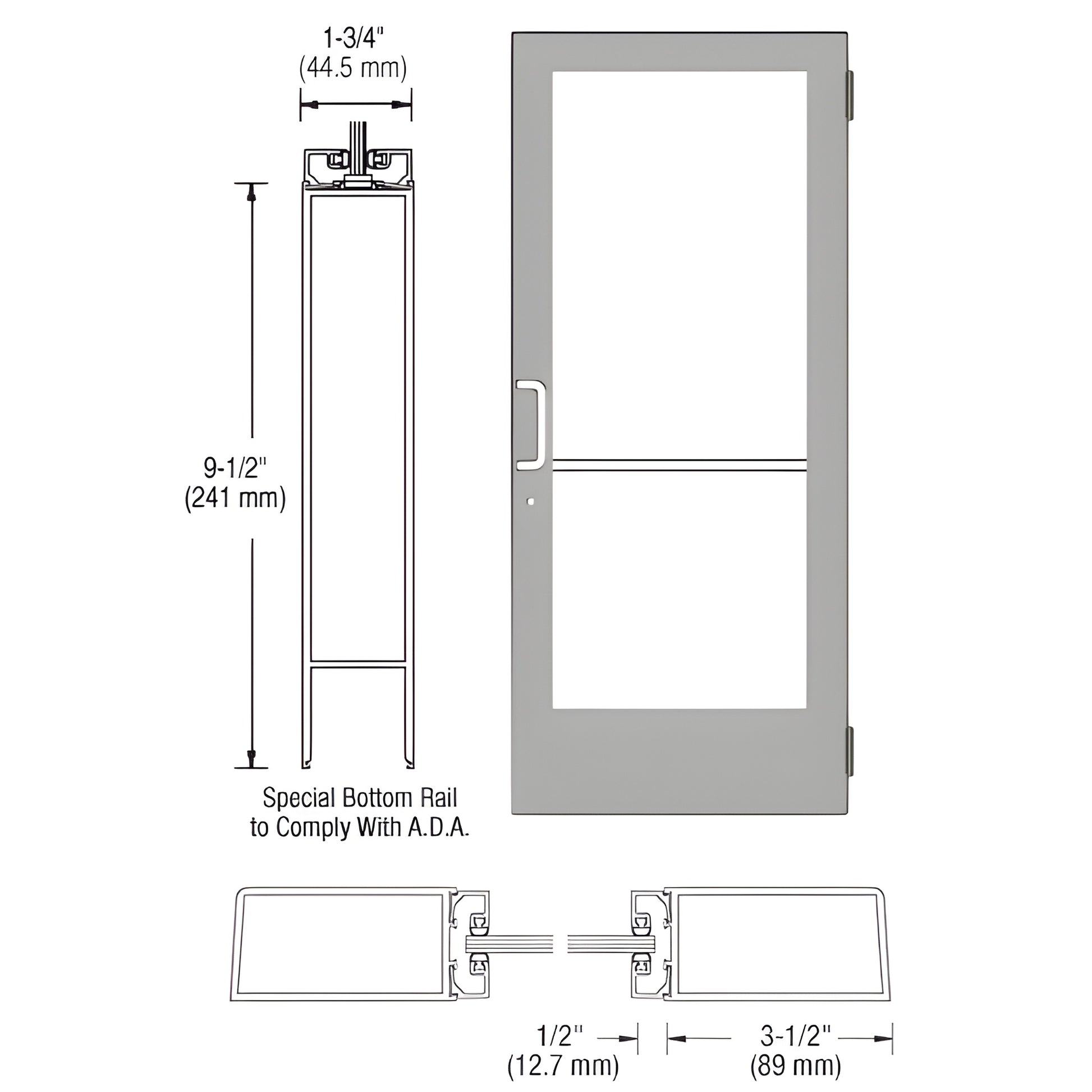

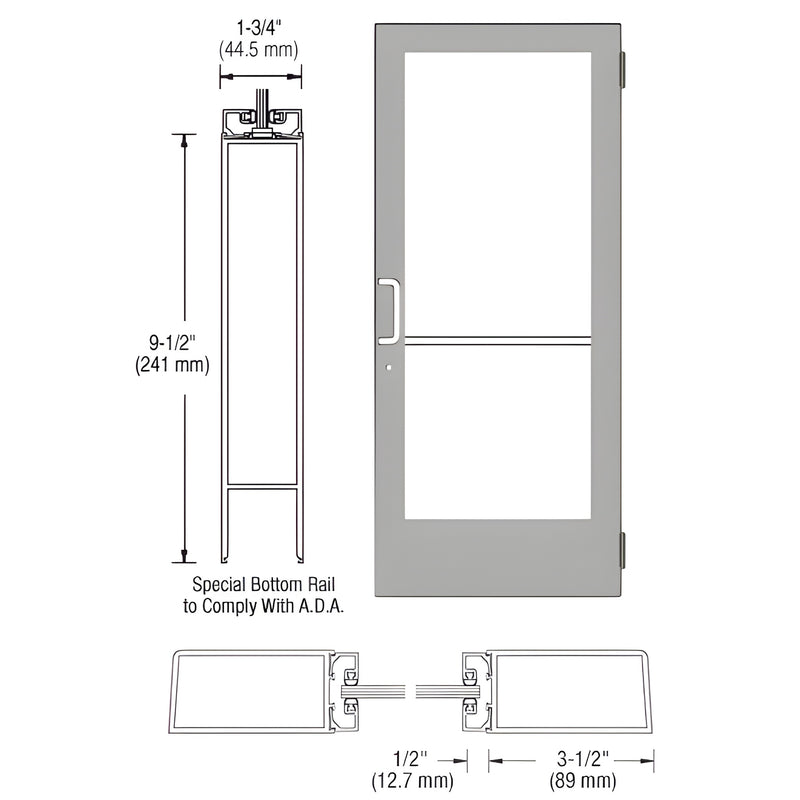

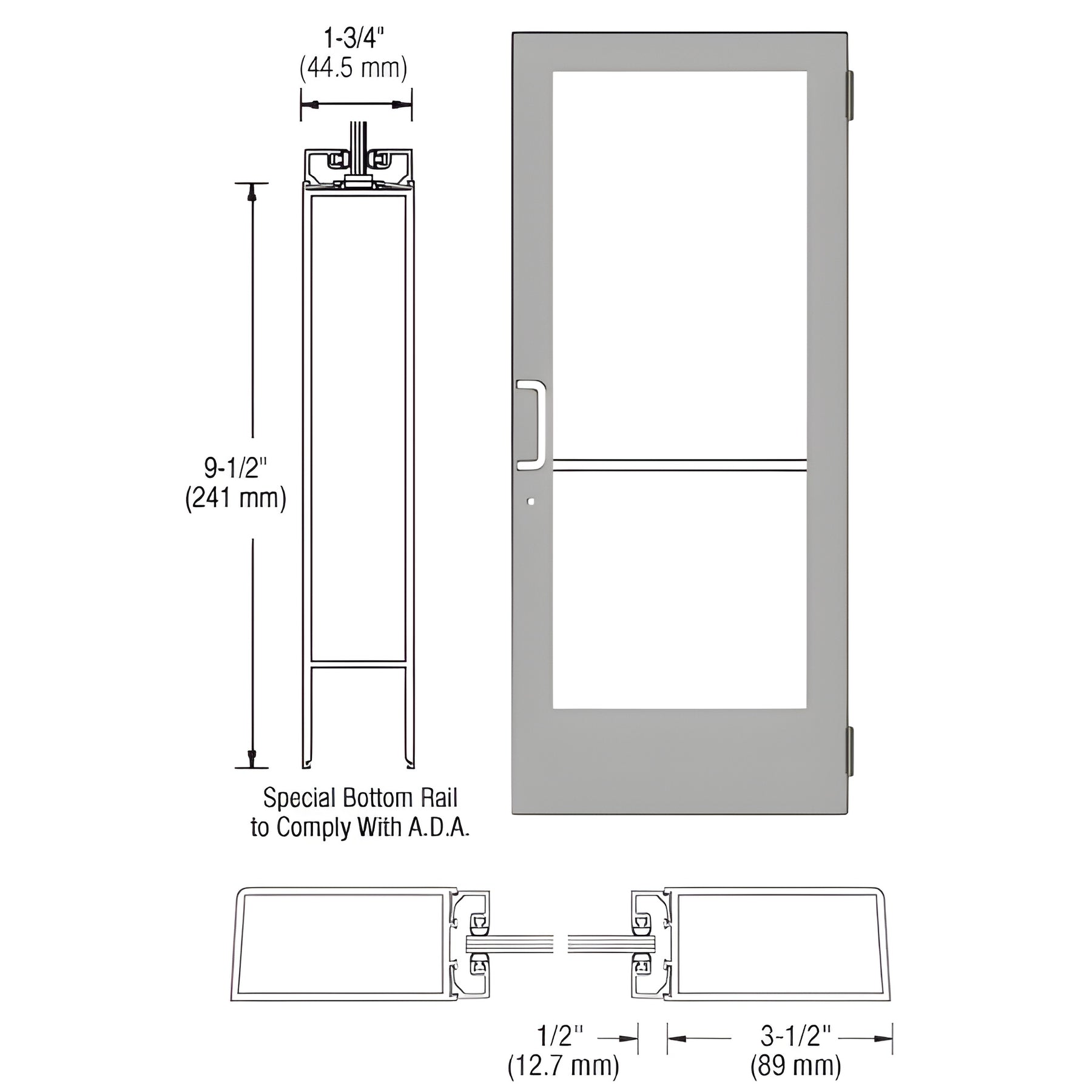

This Custom Medium Stile Entrance Door (SKU DE41511) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for storefront and commercial entrances, the door includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied separately). Built for easy customization, it is ready for additional hardware installations for commercial, retail, and ADA applications.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection requirements.
Most shipping weights are approximate and have not been verified. If exact weight or shipping cost details are required to complete your order, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor settings.
Order the DE41511 custom medium stile entrance door today to get a durable, ADA-aware storefront solution—contact sales for pricing and lead time.
